FATH
Joint Angle 40
Part #: 093WG401A · 2 variants
To connect aluminum profiles at various angles; can be turned freely when mounted
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 91 g
- ECLASS
- 23360302
- Category
- Joint Angles
Versions
Select a version — the description and files below follow your selection.
Description 093WG401A
- Color
Alu color
- Description
To connect aluminum profiles at various angles; can be turned freely when mounted
- Fastening
Using M8 screws
- Material
Angle: Zinc die-cast
Bushing: Steel, zinc plated
- Specials
Other surfaces, other colors on request
- Surface
Plain / powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

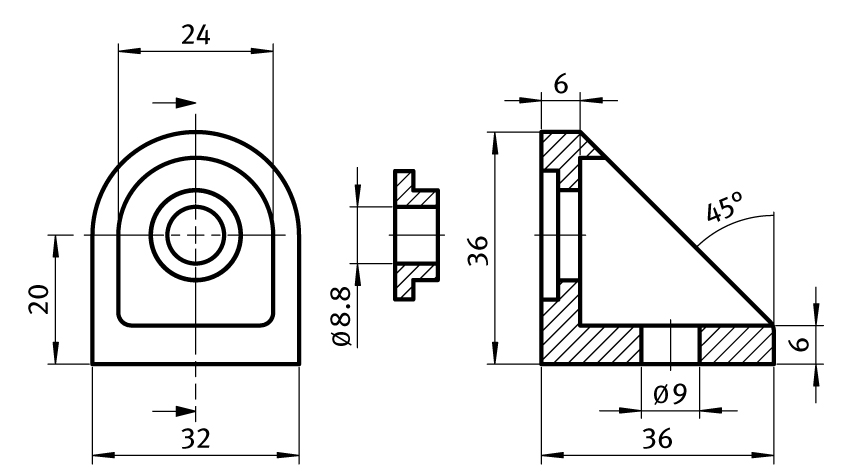

Drawing
From the FATH catalogue (EC-EN, p. 615)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
