L-handle Quarter Turn Lock 22.5 / 18, with Defeater Function
Part #: 0810112S01 · 9 variants
For easy and secure latching and locking of doors and flaps; Two stage unlocking, turn key and then trigger pull; Wide range of inserts, cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 851.9 g
- ECLASS
- 23199090
- Category
- L-handle Quarter Turn Locks
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | Surface | Color | Insert type | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 0810112S01✓ Selected | Zinc die-cast | Powder coated | Black | Key locking (Keyed FH333) | |
| 0810112S02 | Stainless steel SS316 | - | - | Key locking (Keyed FH333) | |
| 0810112S03 | Zinc die-cast | Powder coated | Black | Key locking (Keyed FH333) with no defeater | |
| 0810113S01 | Zinc die-cast | Powder coated | Black | Non-locking | |
| 0810113S03 | Zinc die-cast | Powder coated | Black | Non-locking | |
| 0810116ES02 | Stainless steel SS316 | - | - | Non-locking | |
| 0810117S01 | Zinc die-cast | Powder coated | Black | Slotted recess 2 x 4 | |
| 0810117S01E | Stainless steel SS316 | - | - | Slotted recess 2 x 4 | |
| 0810117S02 | Zinc die-cast | Powder coated | Black | Slotted recess 2 x 4 |
Description 0810112S01
- Color
Handle insert: Black / -
Housing: Black / -
Seals: Black
- Description
For easy and secure latching and locking of doors and flaps;
Two stage unlocking, turn key and then trigger pull;
Wide range of inserts, cams and accessories
- Material
Handle insert: Plastic PA / zinc die-cast / stainless steel SS316
Housing: Zinc die-cast / stainless steel SS316
Seals: Rubber NBR
Nut: Zinc die-cast
- Surface
Handle insert: Zinc plated / plain
Housing: Zinc plated / plain
Nut: Zinc plated
- Tip
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Door Version | Right, left |

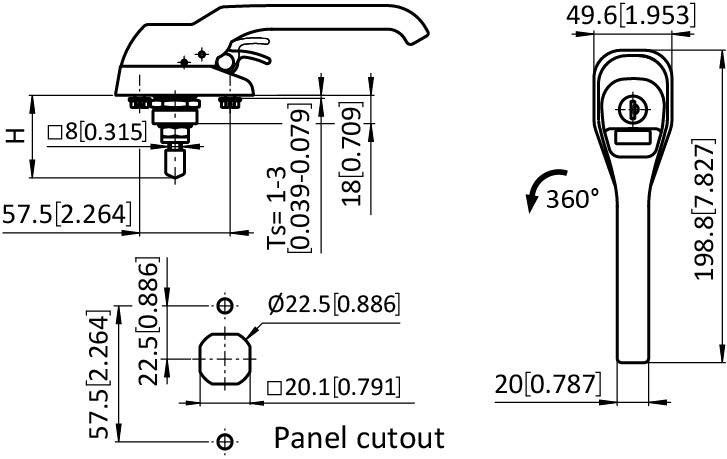

Drawing
From the FATH catalogue (IH-US-EN, p. 46)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
