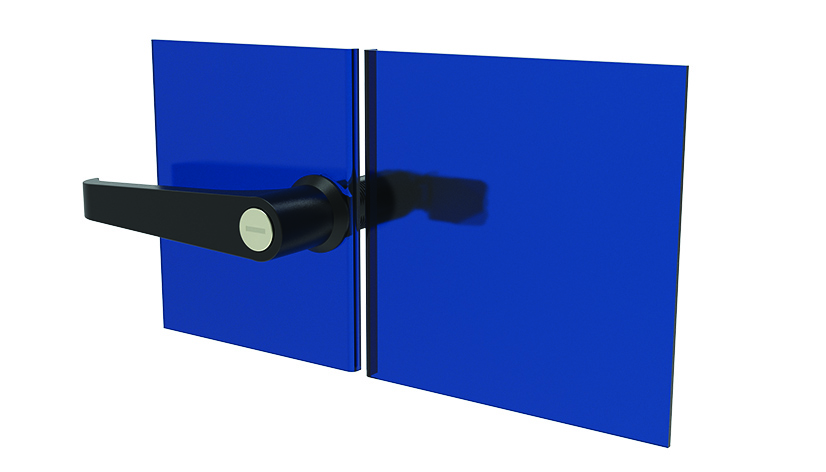

L-handle Quarter Turn Lock 22.5 / 60

Part #: 0810112GL60 · 2 variants

For easy and secure latching and locking of doors and flaps; Wide range of inserts, cams and accessories

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Material	Surface	Color	Insert type	Add 1 pc to enquiry
0810112GL60✓ Selected	Zinc die-cast	Powder coated	Black	Key locking (Keyed FH333)
0810113GL60	Zinc die-cast	Powder coated	Black	Non-locking

Color

L-handle insert: Black

Housing: Black

Seals: Black

Description

For easy and secure latching and locking of doors and flaps;

Wide range of inserts, cams and accessories

Material

L-handle insert: Zinc die-cast

Housing: Zinc die-cast

Seals: Rubber NBR

Nut: Zinc die-cast

Screw: Steel

Specials

Keyed different, FH751 key code on request

Surface

L-handle insert: Powder coated

Housing: Powder coated

Nut: Zinc plated

Screw: Zinc plated

Tip

Compatible Cams see 0810247 et sq.

Accessories see 0890032 et sq.

From the FATH catalogue (IH-US-EN, p. 44)
