FATH

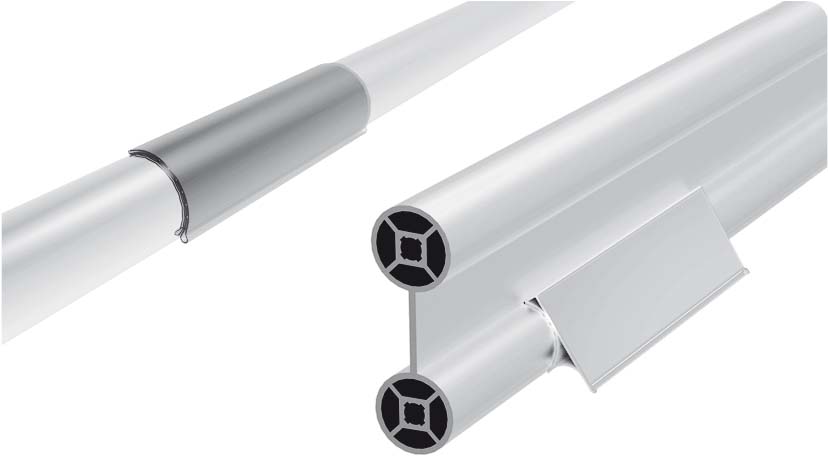

Label Clip D28 / D30
Part #: 093LC38D28S01.120 · 7 variants
For labelling on tubular frame profiles with Ø 28 or Ø 30 mm outer diameter; for labels with 38 mm height
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 20 Stück
- Weight
- 15 g
- ECLASS
- 23360492
- Category
- Label Clips D28 / D30
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | H (mm) | Profile | L (mm) | Color | ØD (mm) | E (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 093LC38D28S01.120✓ Selected | Straight labeling surface | 41.0 | B | 120.0 | Gray ≈ RAL 7035 / transparent (colorless) | 28.0 | 38.0 | 20 Stück | |
| 093LC38D28S01.2000 | Straight labeling surface | 41.0 | B | 2000 | Gray ≈ RAL 7035 / transparent (colorless) | 28.0 | 38.0 | 10 pieces | |
| 093LC38D30.102 | Straight labeling surface | 41.0 | I | 102.0 | Gray ≈ RAL 7035 / transparent (colorless) | 30.0 | 38.0 | 20 Stück | |
| 093LCT38D28.120 | Curved labeling surface | 40.0 | B | 120.0 | Transparent (colorless) | 28.0 | 38.0 | 20 Stück | |
| 093LCT38D28.2000 | Curved labeling surface | 40.0 | B | 2000 | Transparent (colorless) | 28.0 | 38.0 | 20 Stück | |
| 093LCT38D30.102 | Curved labeling surface | 40.0 | I | 102.0 | Transparent (colorless) | 30.0 | 38.0 | 20 Stück | |
| 093LCT38D30.2000 | Curved labeling surface | 40.0 | I | 2000 | Transparent (colorless) | 30.0 | 38.0 | 10 pieces |
Description 093LC38D28S01.120
- Color
Straight labeling surface: Gray ≈ RAL 7035 / transparent (colorless)
Curved labeling surface: Transparent (colorless)
- Description
For labelling on tubular frame profiles with Ø 28 or Ø 30 mm outer diameter; for labels with 38 mm height
- Fastening
Self-adhesive strip on the backside
- Material
Plastic hard PVC
Properties
| Profile Type | Profile Type B |
|---|---|
| Modular Dimension | Modular Dimension D28, Modular Dimension D30 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 20 Stück |
| Model | For tubular frame profiles |

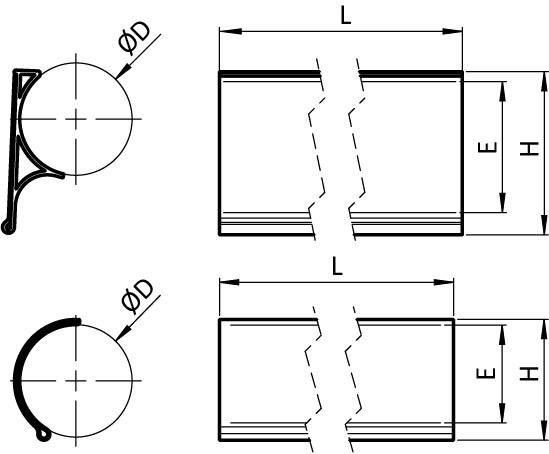

Drawing
From the FATH catalogue (EC-EN, p. 1074)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
