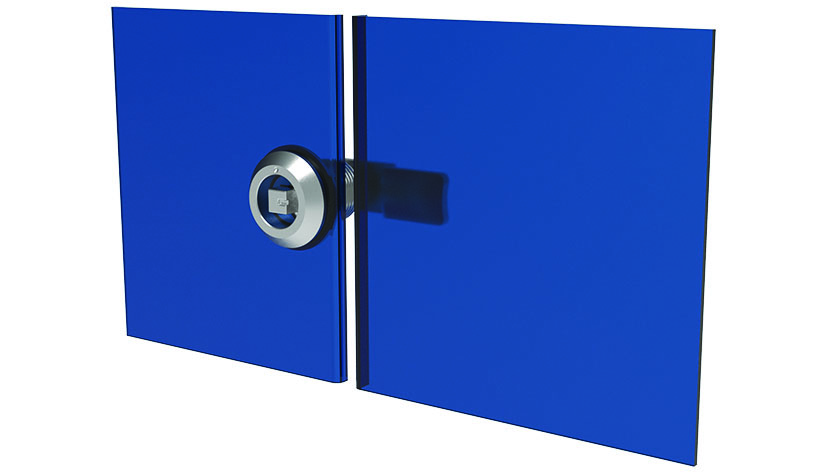

Large Compression Latch, 22.5 / 31, SS
Part #: 0813126 · 4 variants
For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 97.2 g
- ECLASS
- 23199090
- Category
- Quarter Turn Compression Latches
Versions
Select a version — the description and files below follow your selection.
Description 0813126
- Color
Seal: Black
- Description
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
- Material
Insert: Stainless steel SS316
Shaft: Stainless steel SS316
Retaining spring: Stainless steel SS440
Housing: Stainless steel SS316
Seal: Rubber NBR
Washer: Steel
Nut: Stainless steel SS316
Screw: Steel
- Specials
IP65 / NEMA 4 on request
- Surface
Washer: Zinc plated
Screw: Zinc plated
- Tip
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Door Version | Right, left |

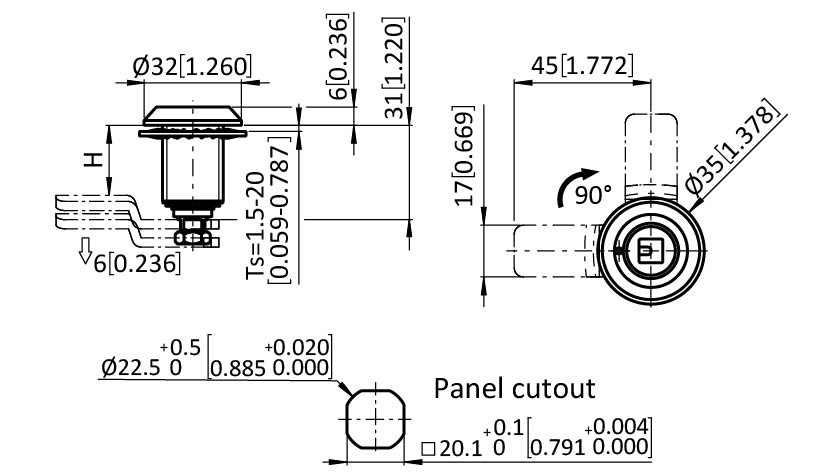

Drawing
From the FATH catalogue (IH-US-EN, p. 57)
