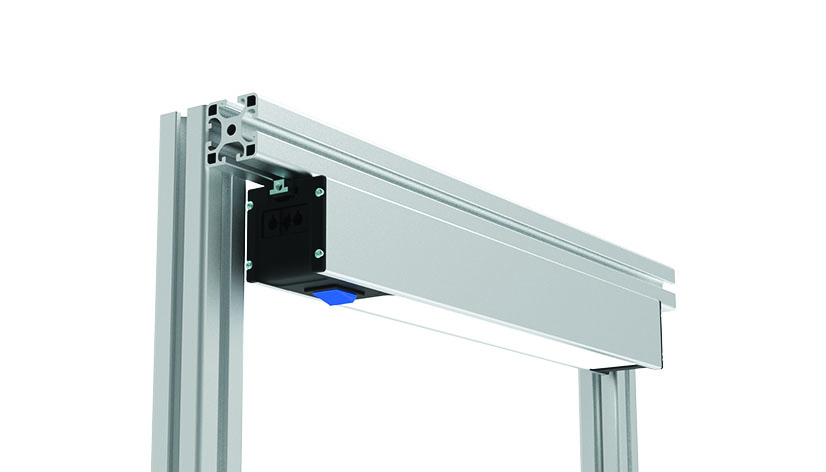

LED Lamp Module F Line 476 Dimmable, with Button
Part #: 6SL1040DI.476 · 2 variants

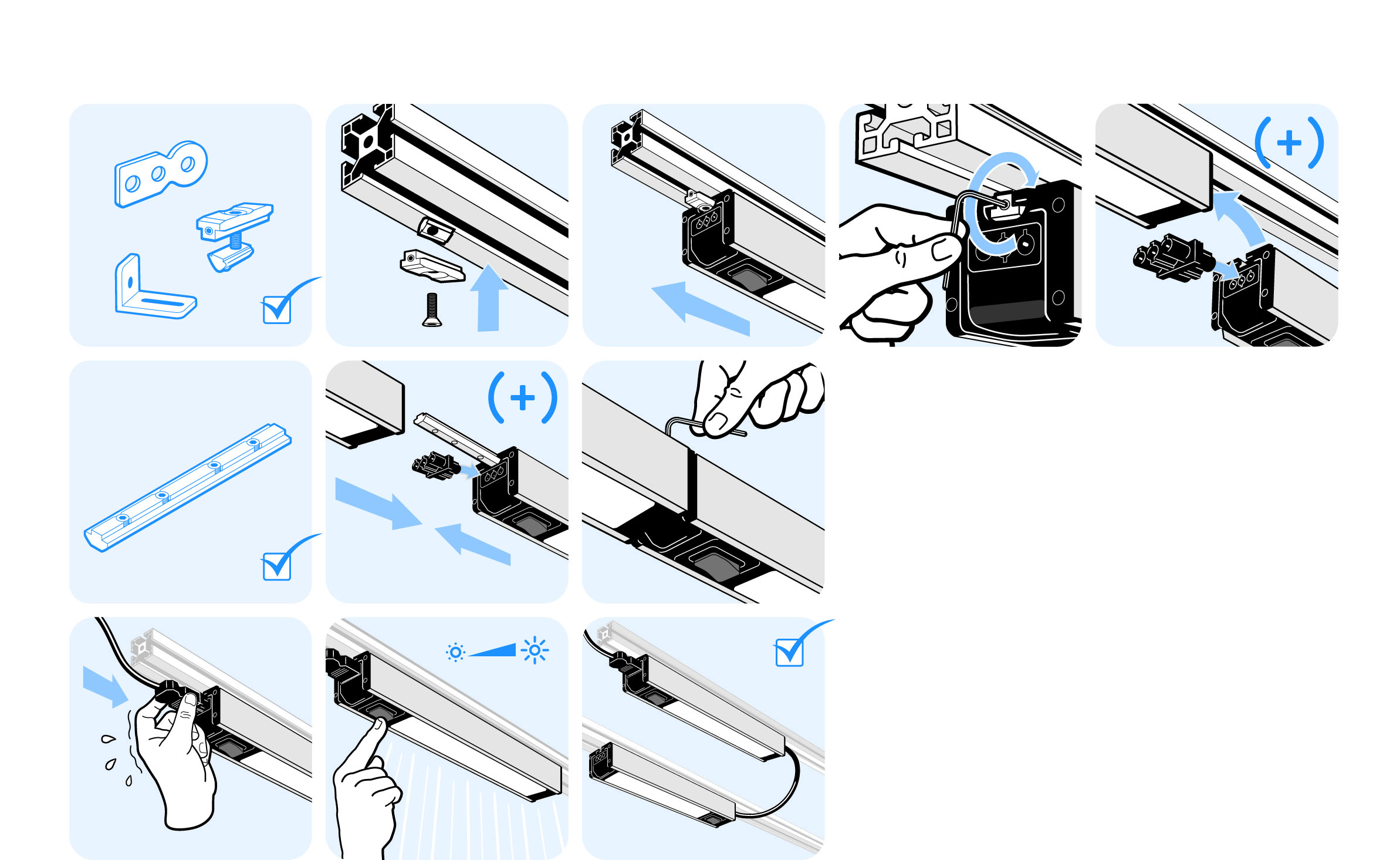

LED Lamp with dimmer button for power and light supply at work stations; On the backside with slot 8 for mounting on aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 1360 g
- ECLASS
- 27110390
- Category
- Machine Lights
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | ESD | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 6SL1040DI.476✓ Selected | I | - | 8 | |
| 6SL1040DIE.476 | I | ESD | 8 |
Description 6SL1040DI.476
- Color
Housing standard version: -
Housing ESD electrostatical discharging version: Black
End caps: Black
Diffusing screen: Transparent (colorless)
Dimmer button standard version: Blue
Dimmer button ESD electrostatical discharging version: Orange
- Description
LED Lamp with dimmer button for power and light supply at work stations;
On the backside with slot 8 for mounting on aluminum profiles
- Material
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
Diffusing screen: Polycarbonate
Dimmer button: Plastic ABS / PA
- Specials
Other lengths, other colors on request
- Surface
Housing standard version: Anodized
Housing ESD electrostatical discharging version: Powder coated
- Tip
Compatible Power Strip Module F Line 264 4xEU see 6SBEU24DI.370
Compatible Main Power Cable EU GST18i3 for 3-pole output connector see 6SAME4J316B.2000
Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000
Compatible Connection Coupling GST18i3 for 3-pole output connector see 6SAKP3J316BS01
Compatible Cover Cap GST18i3 for 3-pole output connector see 063SGF3S01
Compatible Direct Connector I, slot 8 see 099DC084040N08
Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10
- Tip 2
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
| Pack Quantity | 1 piece |

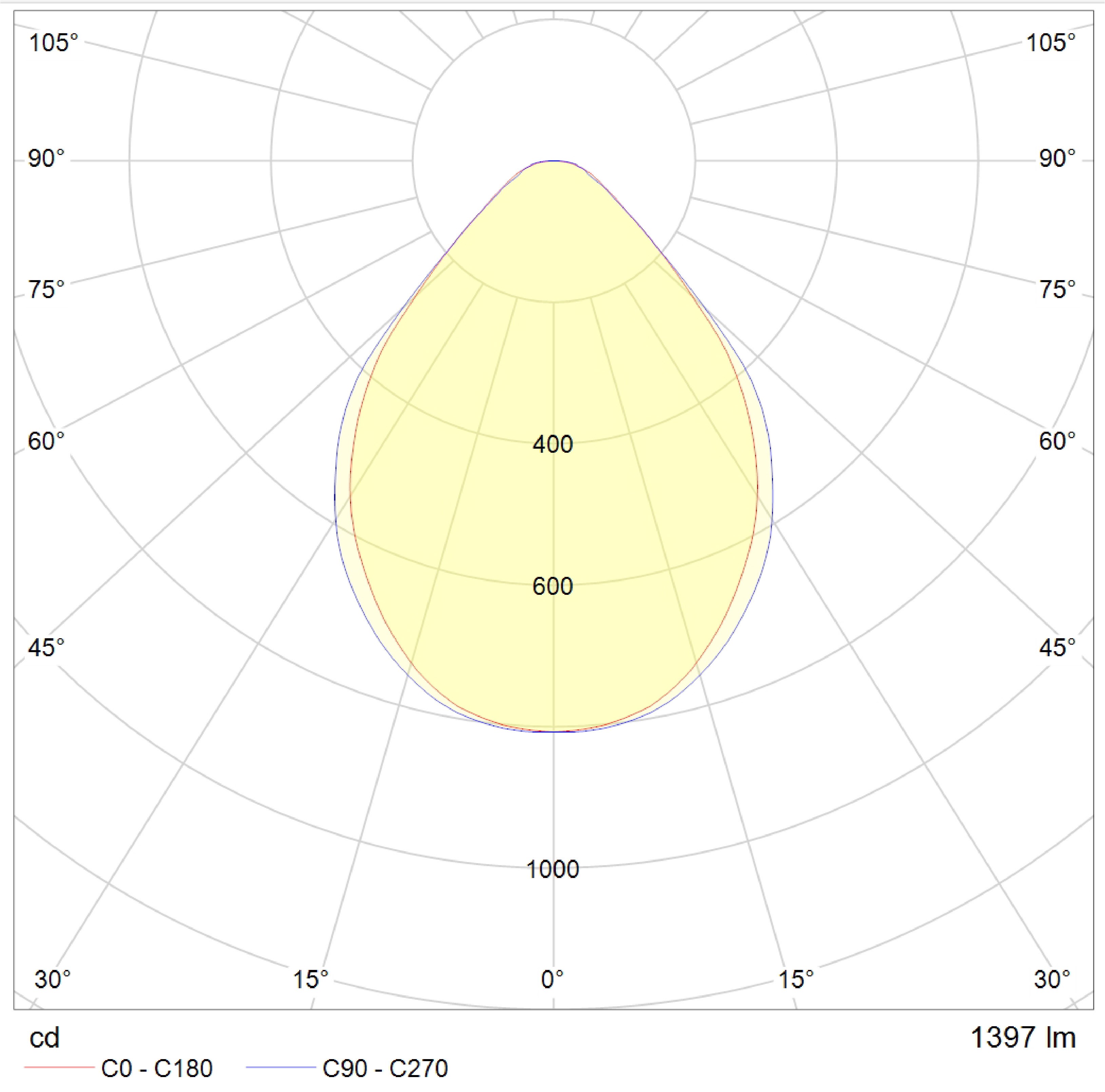

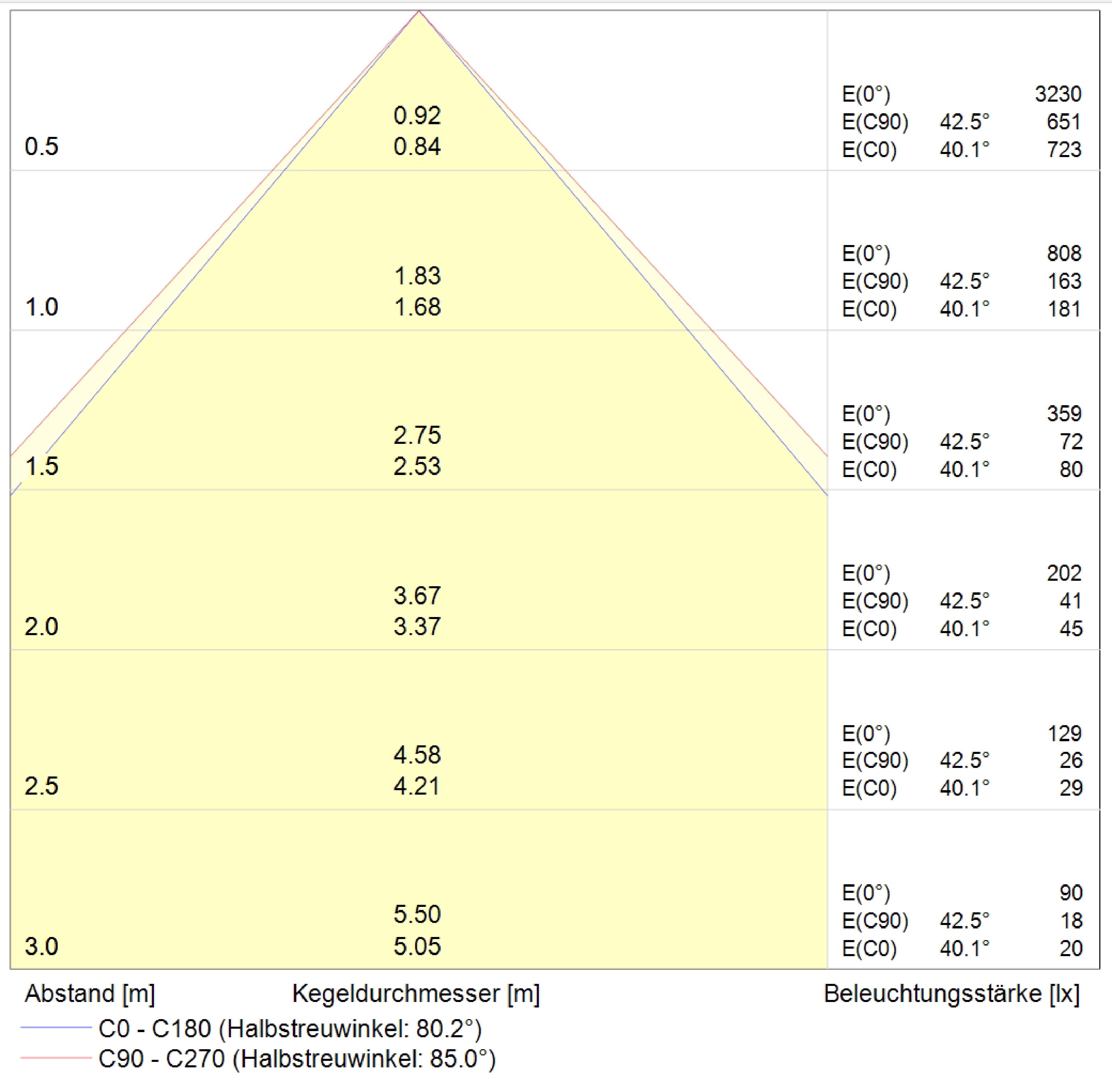

| Beam Angle | 80° |
| Color Rendering Index | Ra = 85 |
| Color Temperature | 4000 K |
| IP Rating | IP20 |
| LED Lifetime | > 100000 h |
| Length | 476 mm |
| Luminous Efficacy | 86 lm/W |
| Luminous Flux | 1396 lm |
| Operating Current | Max. 16 A |
| Operating Temperature | 0 - 40 °C |
| Operating Voltage / Frequency | 230 V, AC / 50 Hz |
| Power Input | 17 W |
| Protection Class | I (1) |

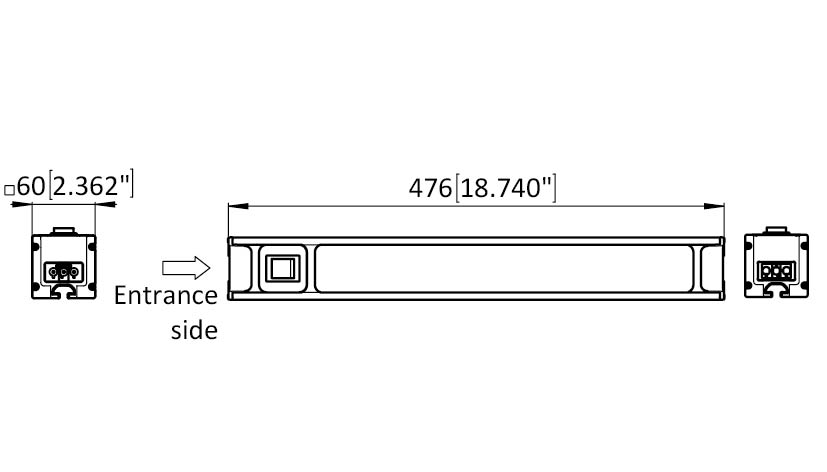

Drawing
From the FATH catalogue (EC-EN, p. 769)
