LED Lamp Module F Line 953 Dimmable, for Series Connection
Part #: 6SL0040RI.953
Remotely dimmable LED Lamp for power and light supply at work stations; On the backside with slot 8 for mounting on aluminum profiles; Can be dimmed in series if the upstream Power Strip or LED Lamp for Series Connection has a dimmer switch
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 2489.5 g
- ECLASS
- 27110390
- Category
- Machine Lights
Description 6SL0040RI.953
- Color
Housing: -
End caps: Black
Diffusing screen: Transparent (colorless)
- Description
Remotely dimmable LED Lamp for power and light supply at work stations;
On the backside with slot 8 for mounting on aluminum profiles;
Can be dimmed in series if the upstream Power Strip or LED Lamp for Series Connection has a dimmer switch
- Material
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
Diffusing screen: Polycarbonate
- Specials
Other lengths, other colors on request
- Surface
Housing standard version: Anodized
- Tip
Compatible LED Lamp Module F Line 953 Dimmable, with Button, for Series Connection see 6SL1040RDI.953
Compatible Power Strip Module F Line 370 4xEU with Switch and Dimmer Button, for Series Connection see 6SBEU24DI.370
Compatible Connection Cable GST15i5 for 5-pole output connector see 6SACP5J516B.2000
Compatible Connection Coupling GST15i5 for 5-pole output connector see 6SAKP5J516BS01
Compatible Direct Connector I, slot 8 see 099DC084040N08
Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10
- Tip 2
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Properties
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 1 piece |
| Beam Angle | 79° |
| Color Rendering Index | Ra = 85 |
| Color Temperature | 4000 K |
| IP Rating | IP20 |
| LED Lifetime | > 100000 h |

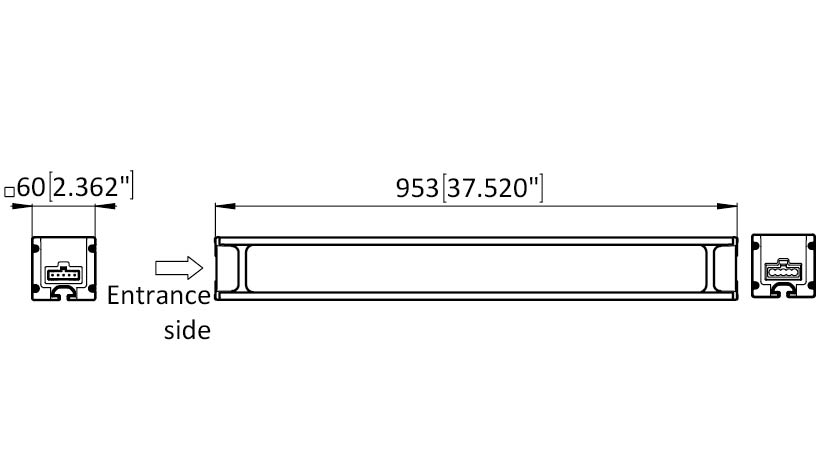

| Length | 953 mm |
| Luminous Efficacy | 86 lm/W |
| Luminous Flux | 3294 lm |
| Operating Current | Max. 16 A |
| Operating Temperature | 0 - 40 °C |
| Operating Voltage / Frequency | 230 V, AC / 50 Hz |
| Power Input | 40 W |
| Protection Class | I (1) |
