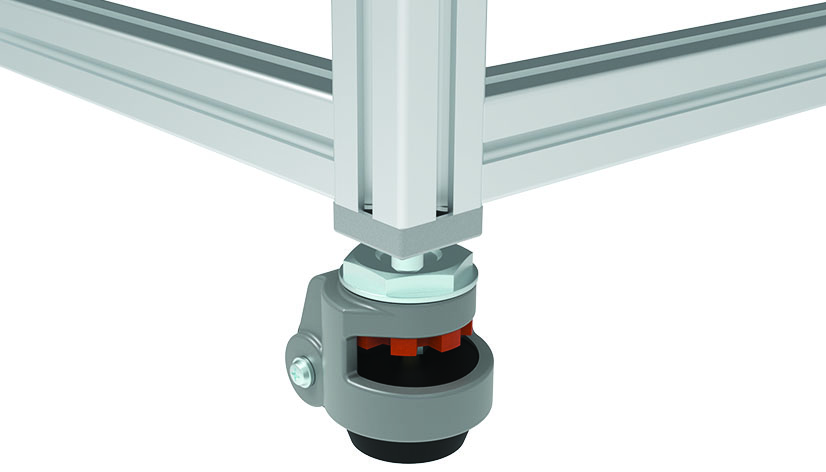

Leveling Caster with Bolt Hole Thread (Set)
Part #: 098LF050AF46S01 · 2 variants
Reliable leveling caster with bolt hole thread M12 For fixation to transport and base plates, threaded sleeves or threaded bushes; Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 2588 g
- ECLASS
- 23370290
- Category
- Leveling Casters
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | H (mm) | Max. Load per Lifting Unit (kg) | SW 1 | SW 2 | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 098LF050AF46S01✓ Selected | 50 | 84 | 250 (M8/M12) 250 (M12/M12) | 11 | 46 | |
| 098LF062AF65S01 | 62 | 103 | 350 (M8/M12) 500 (M12/M12) | 12 | 65 |
Description 098LF050AF46S01
- Color
Housing: White aluminum ≈ RAL 9006
Adjustment wheel: Orange ≈ RAL 2004
Stamp: Black
Roller: Black
- Description
Reliable leveling caster with bolt hole thread M12
For fixation to transport and base plates, threaded sleeves or threaded bushes;

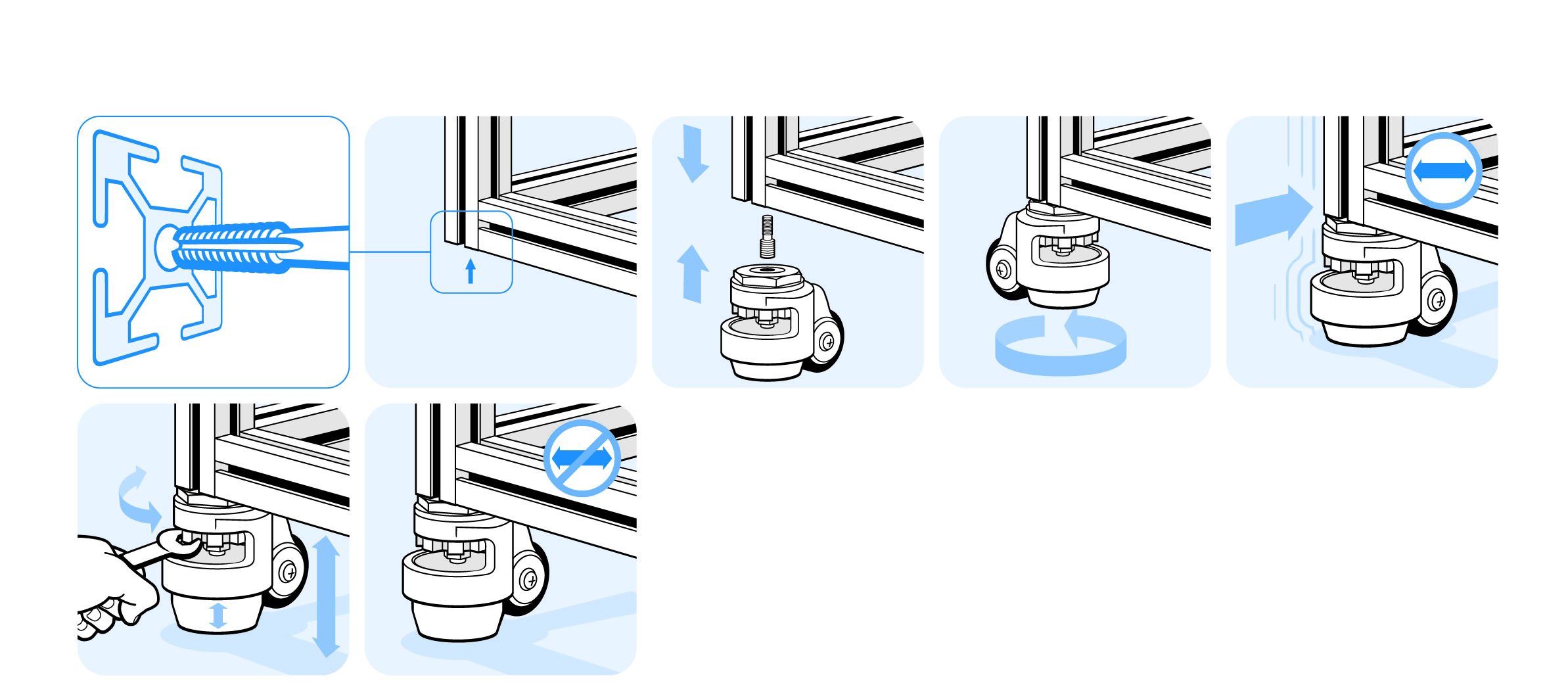

Roller movement locking by temporary positioning on stamp, actuation of the height adjustment of the stamp via adjustement wheel in the caster housing with wrench
- Material
Bolt hole plate: Steel
Housing: Aluminum die-cast
Adjustment wheel: Plastic PA
Stamp: Rubber NBR
Roller: Plastic PA
- Set
1 leveling casters with bolt hole thread
1 double threaded bolts M8/M12
1 double threaded bolts M12/M12
1 open-end wrench
- Surface
Bolt hole plate: Zinc plated
Housing: Powder coated
- Tip
Compatible Transport and Base Plates with thread M8 or M12 on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | With bolt hole thread |

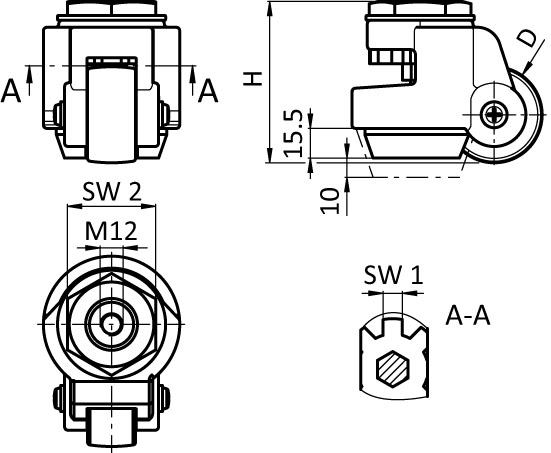

Drawing
From the FATH catalogue (EC-EN, p. 163)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
