FATH
Lift Door Guide (Set)
Part #: 093087S01
To assemble sliding doors with 25 mm width PUR toothed belt DIN 7721 T10 (not included in delivery)
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 97 g
- ECLASS
- 23360192
- Category
- Lift Door Guides
Description 093087S01
- Color
Housing: Black
- Description
To assemble sliding doors with 25 mm width PUR toothed belt DIN 7721 T10 (not included in delivery)
- Material
Housing: Plastic POM
Assembly set: Steel
- Set
1 two-part housing,
1 inlay sheet,
1 screw DIN EN ISO 7380 (DIN 34805) - M6 x 25,
3 hexagon nuts DIN EN ISO 4032 (DIN 934) - M6,
3 screws DIN EN ISO 4762 (DIN 912) - M6 x 25,
1 T-slot nuts - Nut 8 - M 6
- Surface
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Pack Quantity | 10 pieces |
| Model | Plastic POM |

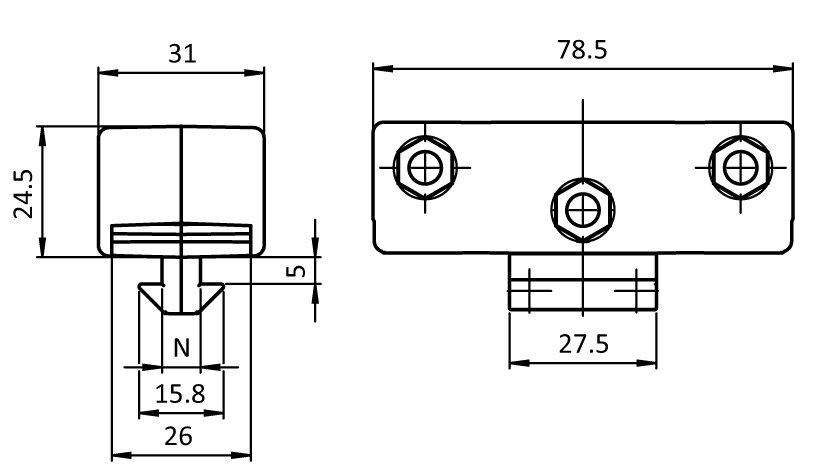

Drawing
From the FATH catalogue (EC-EN, p. 807)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
