FATH
Light Metal Hinge (Set)
Part #: 095990S
To hinge panels or aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 39 g
- ECLASS
- 23219090
- Category
- Steel Hinges
Description 095990S
- Color
Black
- Description
To hinge panels or aluminum profiles
- Material
Steel
- Set
1 light metal hinge,
3 screws DIN EN ISO 7380 (34805) - M5 x 8,
1 screw DIN 903 - M5 x16,
1 nut - DIN EN ISO 4032 (DIN 934) - M5,
1 washer DIN EN ISO 7089 (DIN 125) Ø 5.3 - black zinc plated (RoHS compliant)
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

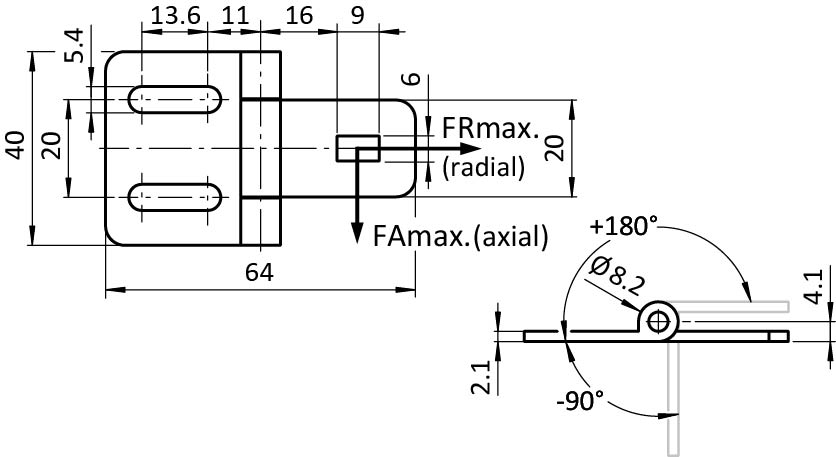

Drawing
From the FATH catalogue (EC-EN, p. 249)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
