FATH
Machine Handle 135
Part #: 092009

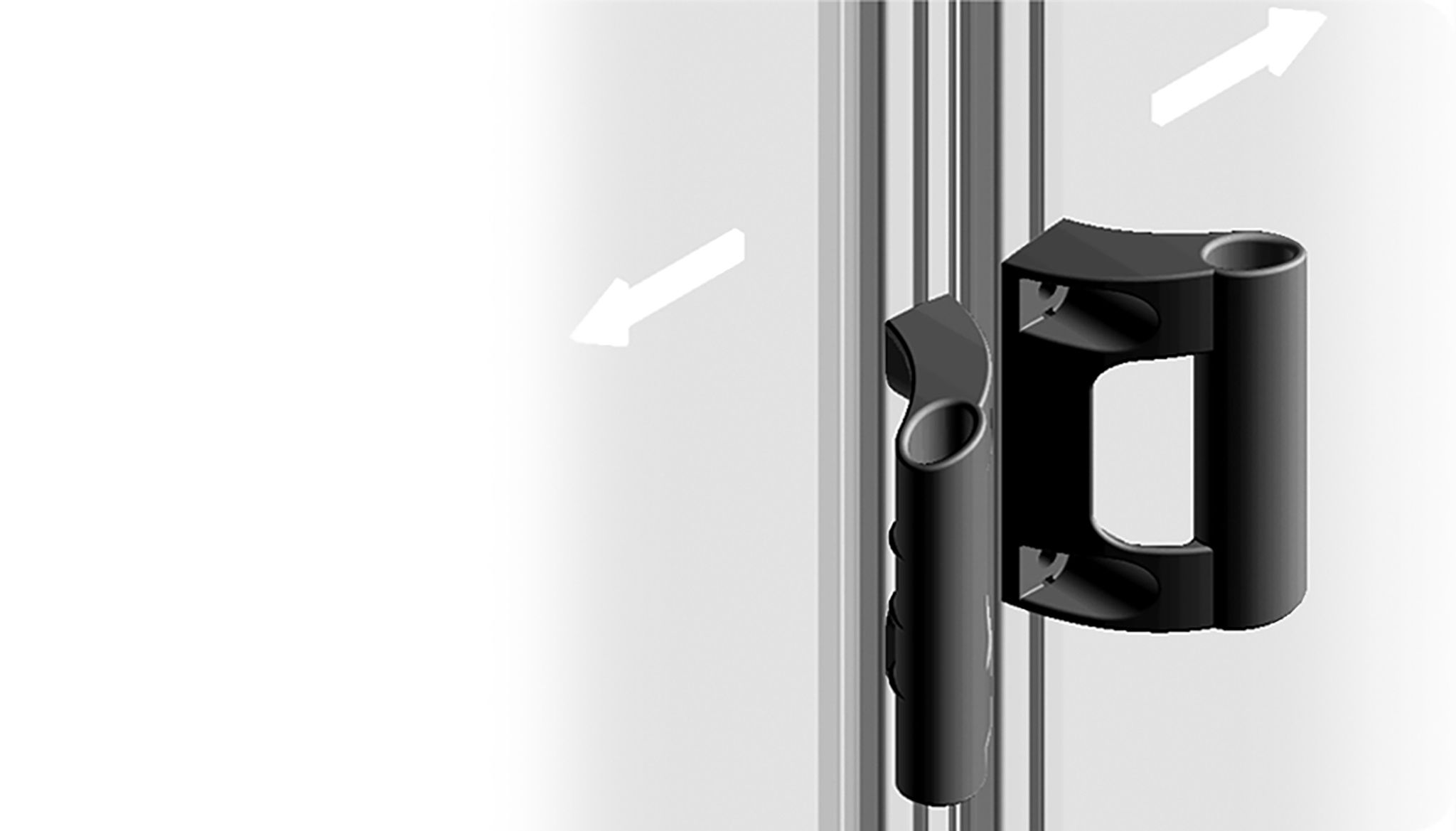

Machine handle with ergonomic design and finger protection; to mount on doors, flaps and aluminum profiles; optional with cover caps
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 114 g
- ECLASS
- 23010103
- Category
- Handles · U Shaped Handles PA
Description 092009
- Color
Black
- Description
Machine handle with ergonomic design and finger protection; to mount on doors, flaps and aluminum profiles;
optional with cover caps

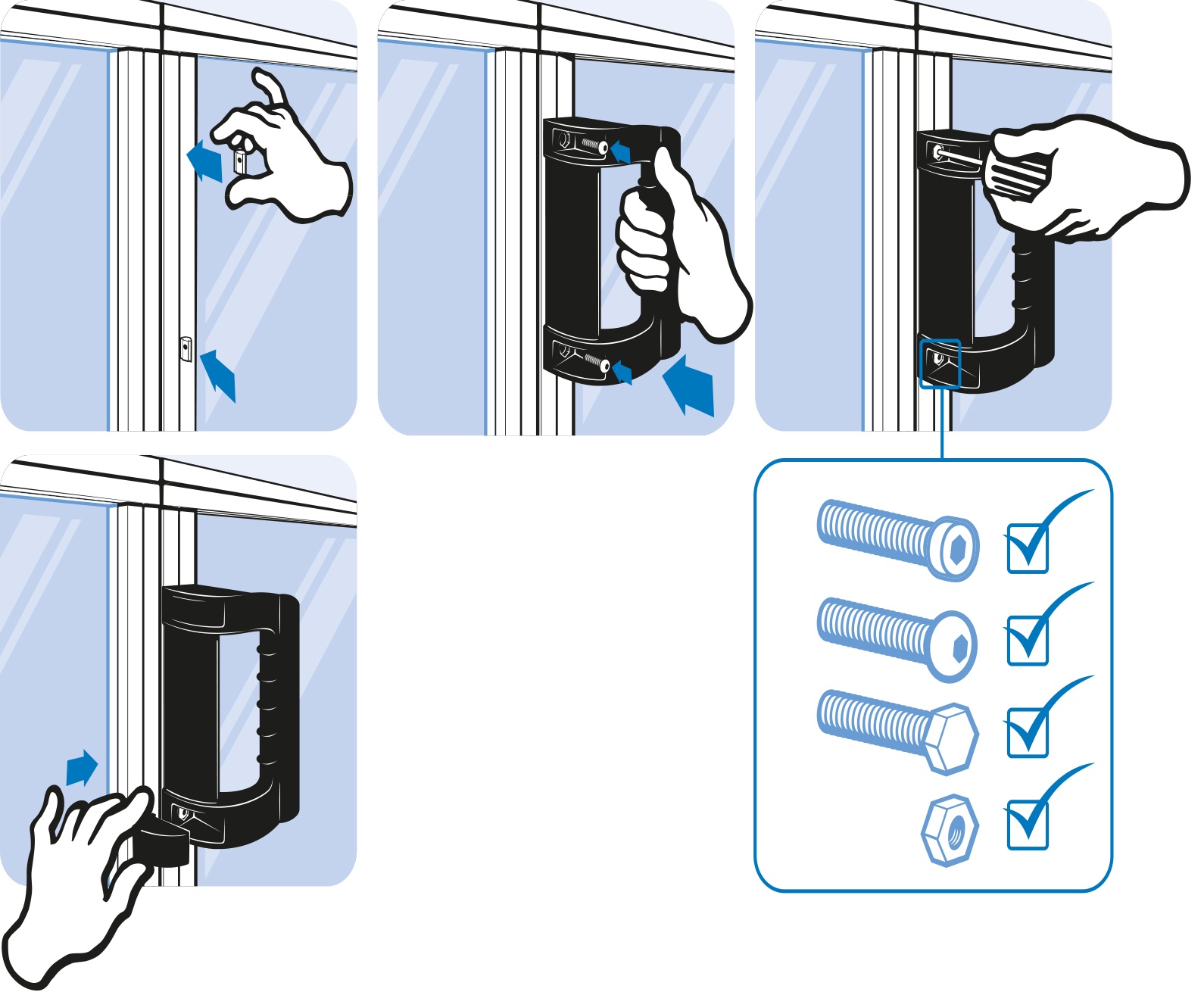

- Fastening
With hexagon cap screws or socket head screws
- Material
Plastic PA, glass ball reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors on request
- Tip
Compatible Cover Cap for Machine Handle 135 (Set) see 092010
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA |

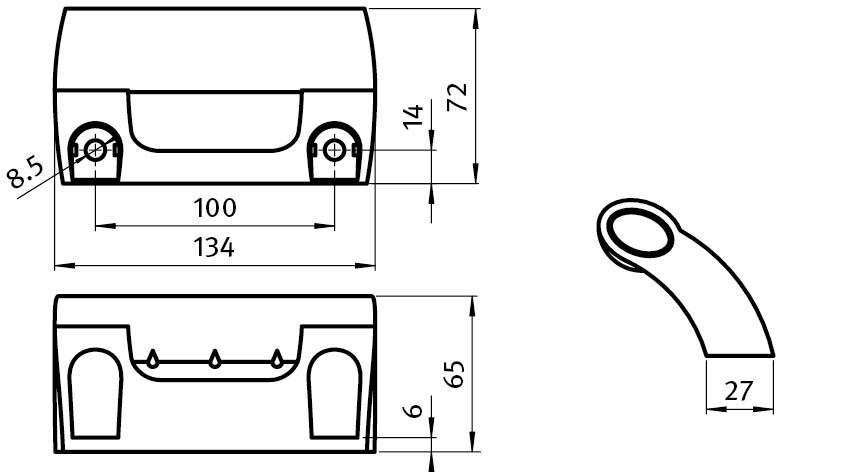

Drawing
From the FATH catalogue (EC-EN, p. 645)
