FATH

Magnetic Catch 30 (Set)

Part #: 093040 · 4 variants

A quick locking device for doors, adaptable to the thickness of the panel units

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

Part #	Color	Set	Locking Force
093040✓ Selected	Black	Set (1)	Approx. 20 N front / 10 N back
093040S09	Gray ≈ RAL 7042	Set (1)	Approx. 20 N front / 10 N back
093044	Black	Set (2)	Approx. 20 N front / 10 N back
093044S01	Gray ≈ RAL 7042	Set (2)	Approx. 20 N front / 10 N back

Color

Magnetic catch: Black, gray

Description

A quick locking device for doors, adaptable to the thickness of the panel units

Fastening

Magnetic catch: using M6 screws

Counter plate: using M4 countersunk screws

Material

Magnetic catch: Plastic PA, glass fiber reinforced

Assembly set: Steel

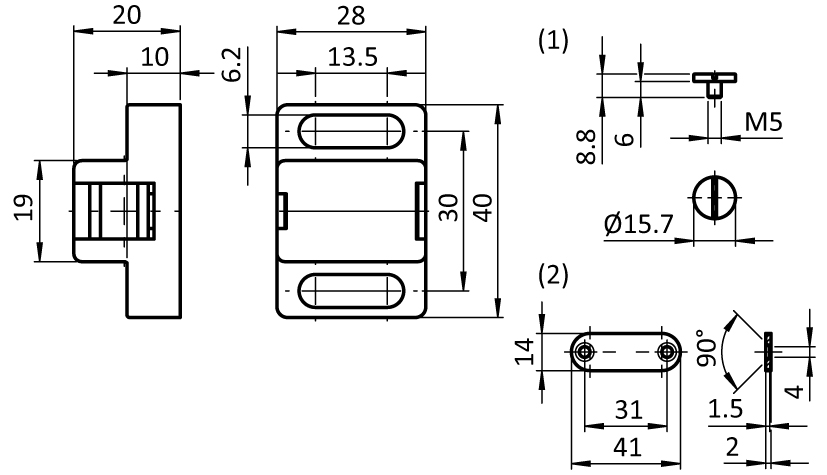

Set 1

1 magnetic catch 30,

1 flat head screw DIN 921 - M5 x 6

Set 2

1 magnetic catch 30,

1 flat head screw DIN 921 - M5 x 6,

1 counter plate 14 x 41 x 2 mm

Specials

ESD electrostatical discharging, other sizes, other colors on request

Surface

Assembly set: Zinc plated

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Plastic PA

From the FATH catalogue (EC-EN, p. 671)
