Medium Quarter Turn Lock 19 / 20, incl. Cam (Set)
Part #: 0810666 · 2 variants
For easy and secure latching and locking of doors and flaps; Wide range of cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 55.9 g
- ECLASS
- 23199090
- Category
- Medium Quarter Turn Locks
Versions
Select a version — the description and files below follow your selection.
Description 0810666
- Color
Seal: Black
- Description
For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories
- Material
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seal: Rubber NBR
Washer lock: Zinc die-cast
Nut: Steel
Screw: Steel
- Surface
Insert: Nickel plated
Housing: Nickel plated
Cam: Zinc plated
Washer Lock: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Door Version | Right, left |

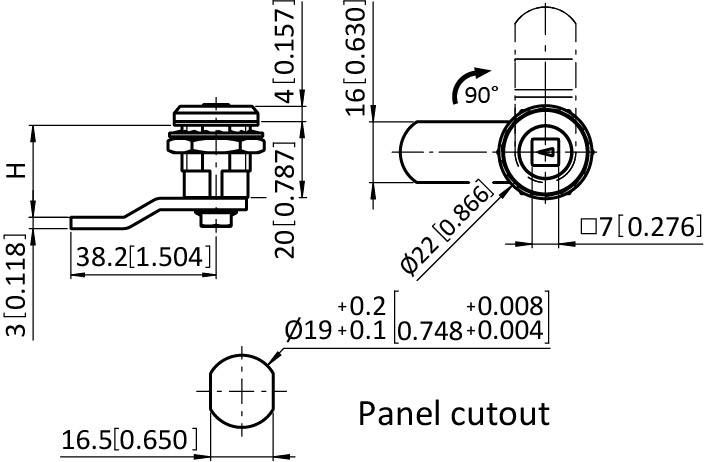

Drawing
From the FATH catalogue (IH-US-EN, p. 26)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
