FATH

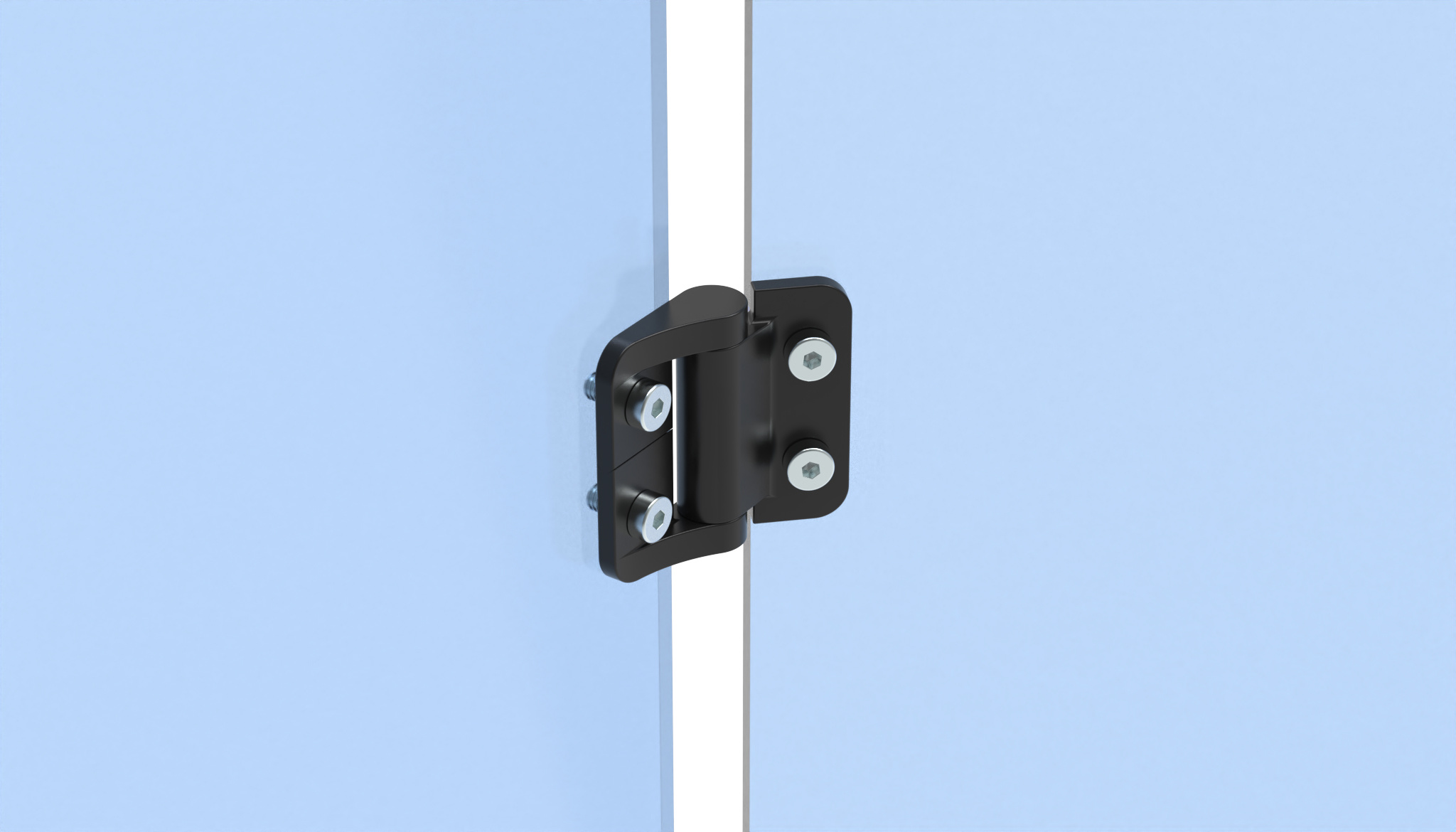

Metal Hinge 40 x 38 with Constant Friction
Part #: 095030
For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doors
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 40 g
- ECLASS
- 23219090
- Category
- Zinc Die-Cast Hinges
Description 095030
- Color
Black
- Description
For panels and aluminum profiles; keeps doors open at any angle; also supports lightweight horizontal doors

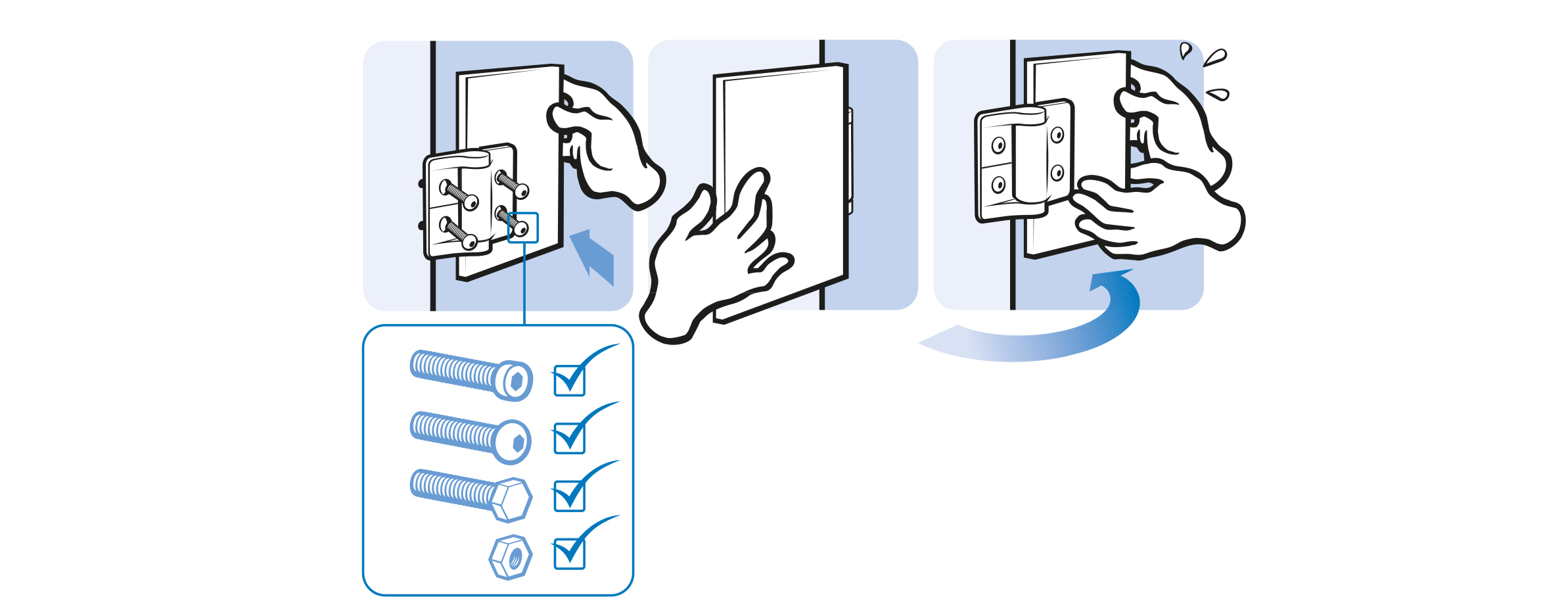

- Fastening
Using screws M4
- Material
Wings: Zinc die-cast
Pin: Steel, lubricating grease, o-ring
- Surface
Urethane enamel
- Tip
*+/- 20% of the nominal value up to 20.000 cycles
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

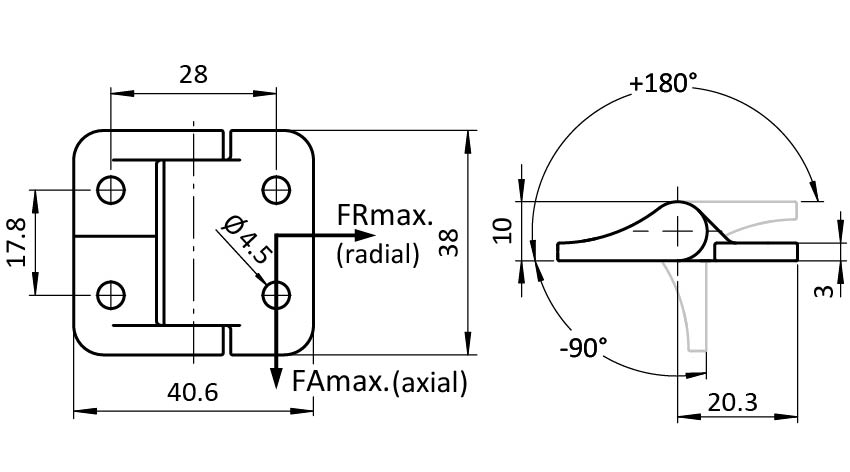

Drawing
From the FATH catalogue (EC-EN, p. 246)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
