FATH

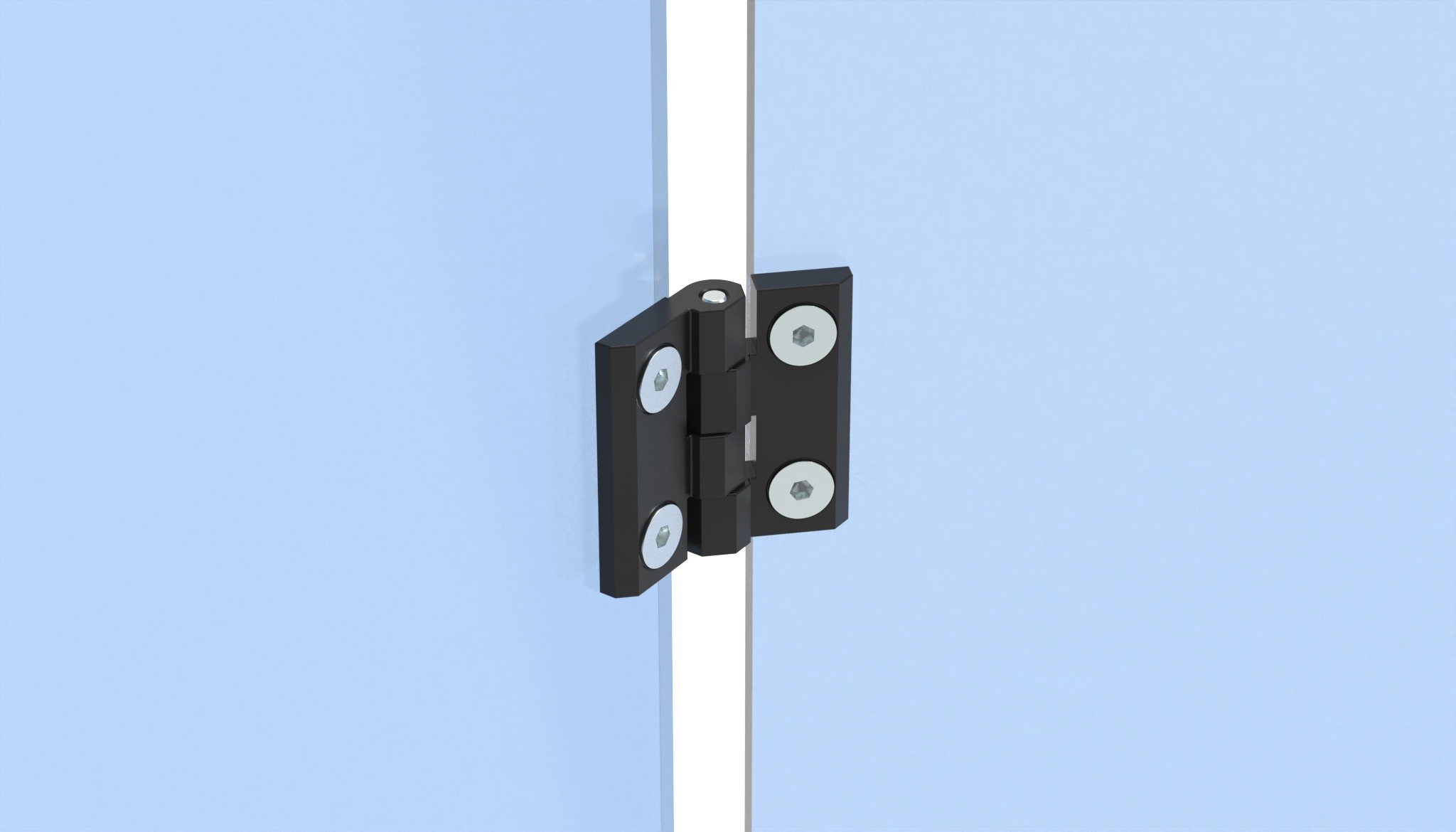

Metal Hinge 60 x 60
Part #: 095009
Sturdy hinge for right and left hand application
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 168 g
- ECLASS
- 23219090
- Category
- Zinc Die-Cast Hinges · Screw-on Hinges
Description 095009
- Color
Black
- Description
Sturdy hinge for right and left hand application
- Fastening
From the front, using countersunk screws
- Material
Wings: Zinc die-cast
Axle: Stainless steel
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast, non-detachable |

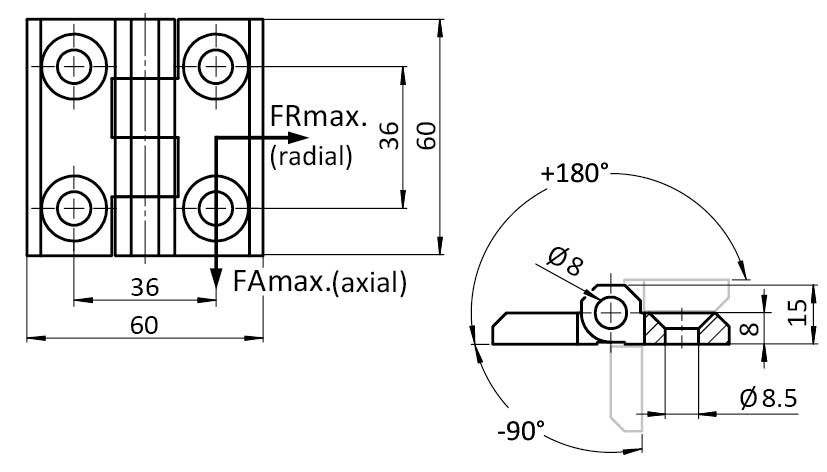

Drawing
From the FATH catalogue (EC-EN, p. 239)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
