FATH
Milling Connector B, Slot 8
Part #: 099D0830M0515

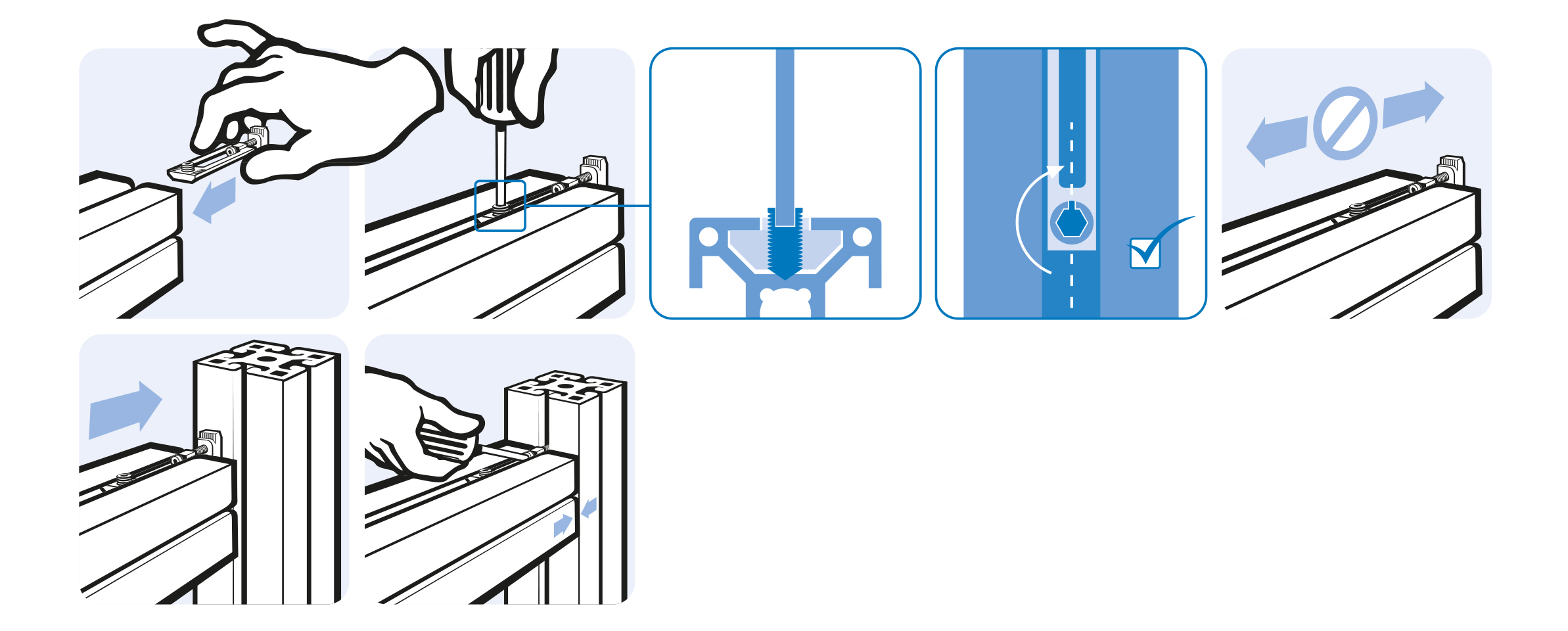

To connect two aluminum profiles fast and solid; assembly without machining
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 31.7 g
- ECLASS
- 23360290
- Category
- Milling Connectors · Connectors for FIFO Monorail Rails
Description 099D0830M0515
- Description
To connect two aluminum profiles fast and solid; assembly without machining
- Material
Steel
- Set
1 milling connector,
1 screw DIN EN ISO 4762 (DIN 912) - M5 x 14,
1 hammer nut
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Application Area | Industrial Work Stations, Shopfloor |
| Pack Quantity | 10 pieces |
| Model | Steel, slot 8 |

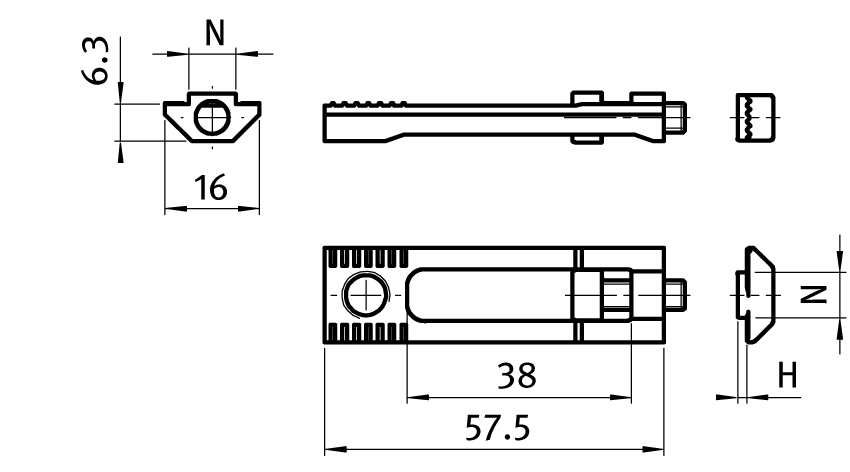

Drawing
From the FATH catalogue (EC-EN, p. 523)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
