FATH
Milling Connector, Slot 10 (Set)
Part #: 099D1045M0617 · 2 variants
To connect two aluminum profiles fast and solid; assembly without machining
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 38 g
- ECLASS
- 23360290
- Category
- Milling Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | H (mm) | Profile | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 099D1045M0617✓ Selected | 1.5 | - | 10 | |
| 099D1045M0630 | 3.0 | B | 10 |
Description 099D1045M0617
- Description
To connect two aluminum profiles fast and solid; assembly without machining
- Material
Steel
- Set
1 milling connector,
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 18,
1 hammer nut
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Steel, slot 10 |

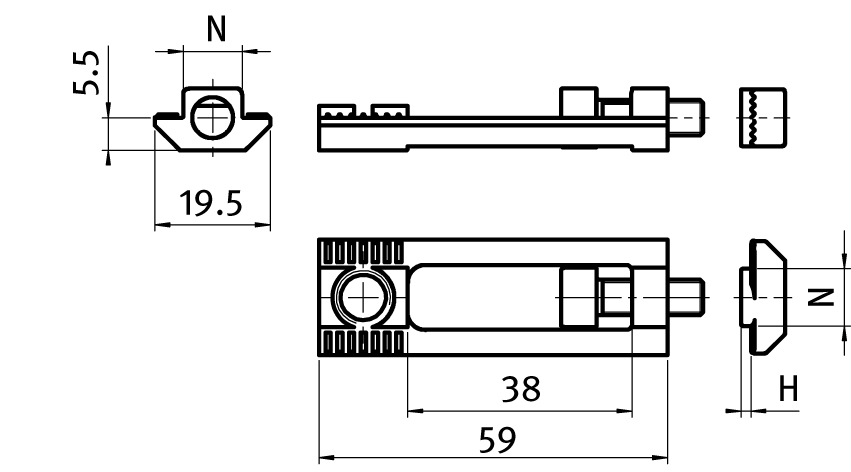

Drawing
From the FATH catalogue (EC-EN, p. 525)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
