FATH
Monitor Support 5-axis, Height Adjustable (Set)
Part #: 6MHM75100D40 · 2 variants
For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible; Adjustable viewing angle and height, screen rotatable by 90°; 360° mounting flange for horizontal and vertical attachment with mounting adapter
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 2930 g
- ECLASS
- 19140392
- Category
- Monitor Attachments · Monitor Supports · Accessories for Visual Boards
Versions
Select a version — the description and files below follow your selection.
| Part # | Fmax (N) | Version | Add 1 pc to enquiry |
|---|---|---|---|
| 6MHM75100D40✓ Selected | 98 | 2 - 10 kg | |
| 6MHM75100D40S09 | 196 | 8 - 20 kg |
Description 6MHM75100D40
- Color
Mounting plate VESA, removable:
Alu color / black
Monitor mount: Alu color
Cable management cover: Black
Bearing shims and bushes: Black
Mounting flange: Alu color
Mounting adapter: Alu color
- Description

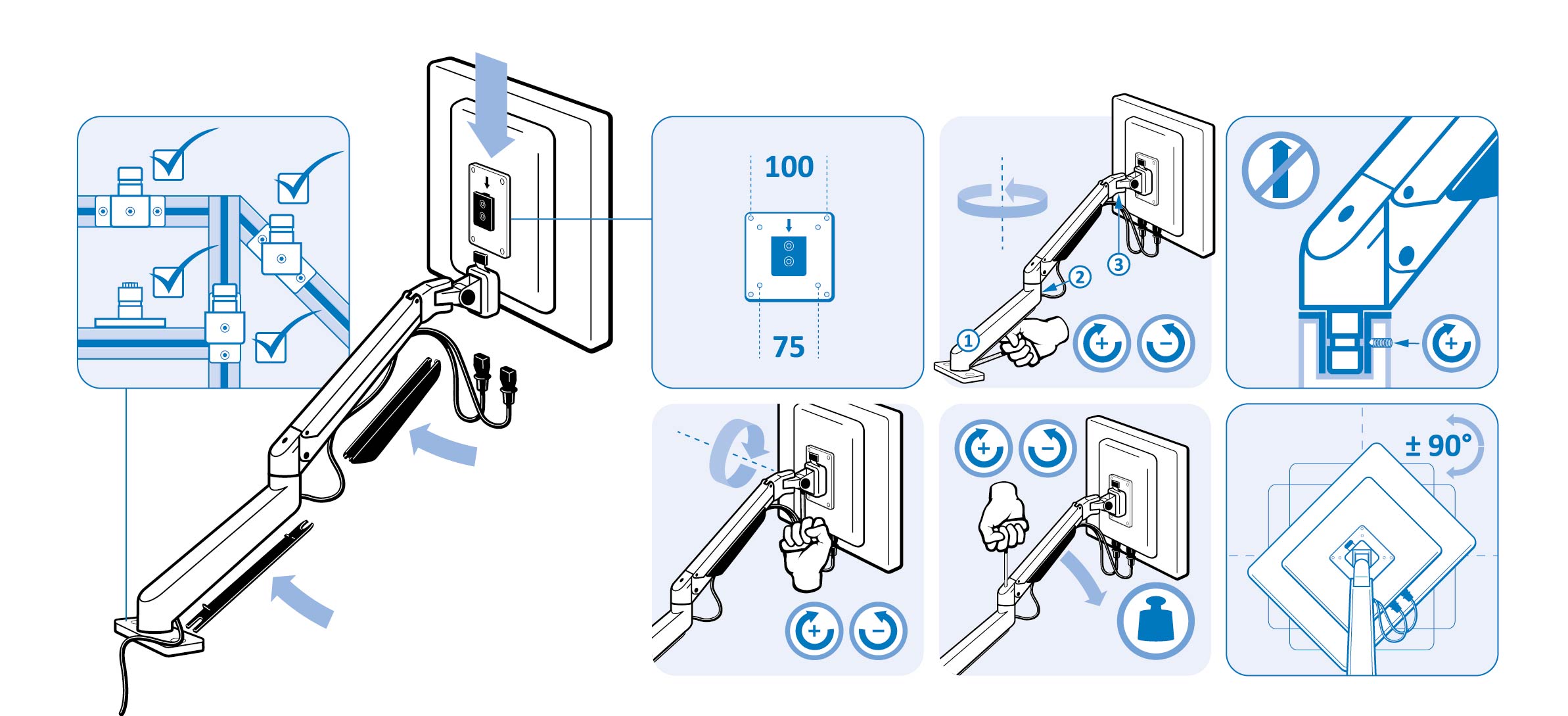

For removable mounting of monitors with 2 - 10 kg or 8 - 20 kg, mounting plate VESA MIS-D 75/100 compatible;
Adjustable viewing angle and height, screen rotatable by 90°;
360° mounting flange for horizontal and vertical attachment with mounting adapter
- Material
Mounting plate VESA, removable:
Steel / Plastic
Monitor mount: Die-cast aluminum
Cable management cover: Plastic
Bearing shims and bushes: Plastic
Mounting flange: Die-cast aluminum
Mounting adapter: Die-cast aluminum
Screws: Steel
- Set
1 mounting plate VESA with 4 screws – M4 × 12, Phillips
1 monitor support 5-axis with cable management cover
1 mounting flange
1 mounting screw DIN 6912 – M8 × 25
1 mounting adapter
2 mounting screws DIN 6912 – M8 × 16
1 hexagon key, AF 3
1 hexagon key, AF 4
- Surface
Mounting plate VESA, removable: Lacquered
Monitor mount: Lacquered
Mounting flange: Lacquered
Mounting adapter: Lacquered
Screws: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Machinery & Plant Engineering, Shopfloor |
| Pack Quantity | 1 piece |
| Model | 5-axis |

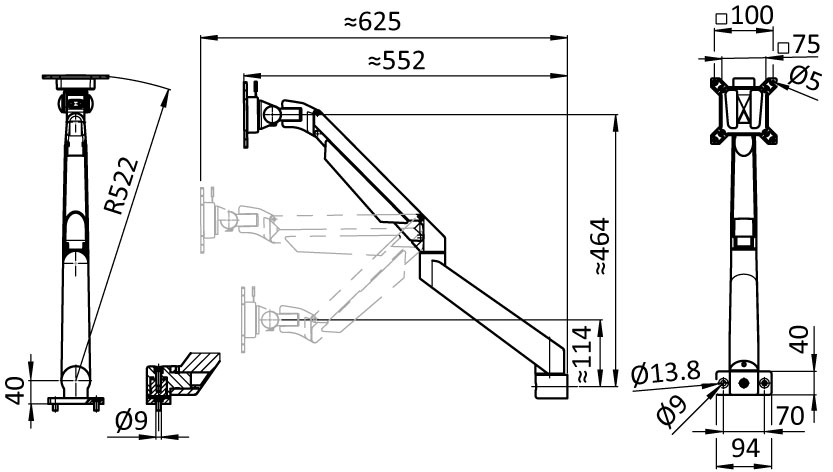

Drawing
From the FATH catalogue (EC-EN, p. 699)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
