FATH
Monorail Angle Connector for Post Support Struts (Set)
Part #: 093WS30145S02
For mounting diagonal struts to support posts in the upper slot of FIFO monorail rails 40
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 365 g
- ECLASS
- 21070492
- Category
- Connectors for FIFO Monorail Rails
Description 093WS30145S02
- Description
For mounting diagonal struts to support posts in the upper slot of FIFO monorail rails 40
- Material
Aluminum
- Set
6 angle connectors 45° 30 x 30,
4 screws DIN EN ISO 4762 (DIN 912) - M8 x 12,
4 T-slot nut- M8,
4 self-tapping screws - S8 x 25,
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 14,
2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M8
- Tip
Compatible FIFO Monorail Rail see 02082PO.1200
Properties
| Slot Size | Slot 8 |
|---|---|
| Application Area | Industrial Work Stations, Shopfloor |
| Pack Quantity | 1 piece |
| Model | For FIFO monorail rail 40 |

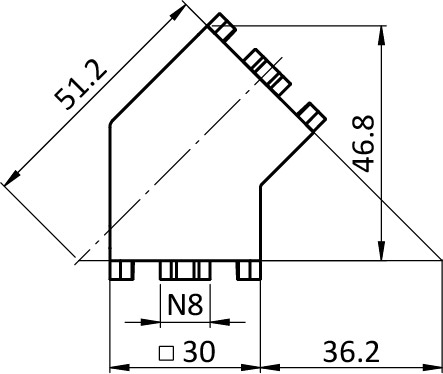

Drawing
From the FATH catalogue (SI-EN, p. 269)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
