FATH
Mounting Bracket 60 x 47, D28 (Set)
Part #: 099RV28TWS01

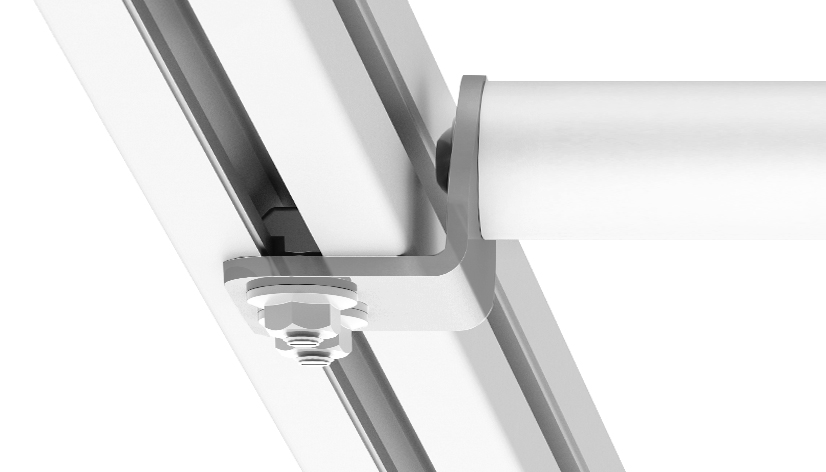

To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holes
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 20 Stück
- Weight
- 176 g
- ECLASS
- 23360290
- Category
- Connectors D28, Tubular Frame Components
Description 099RV28TWS01
- Description
To connect a tubular frame profile with Ø 28 mm outer diameter with a slot 10 aluminum profile; adjustable by slotted holes
- Material
Steel
- Set
1 mounting bracket,
1 self-tapping screw S8 x 25 - hexalobular Socket T40,
2 hammer head screws - Nut 10 - M8 x 20,
2 flange nuts M8
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Modular Dimension | Modular Dimension D28 |
| Product Feature | ESD |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 20 Stück |
| Model | For tubular frame profiles |

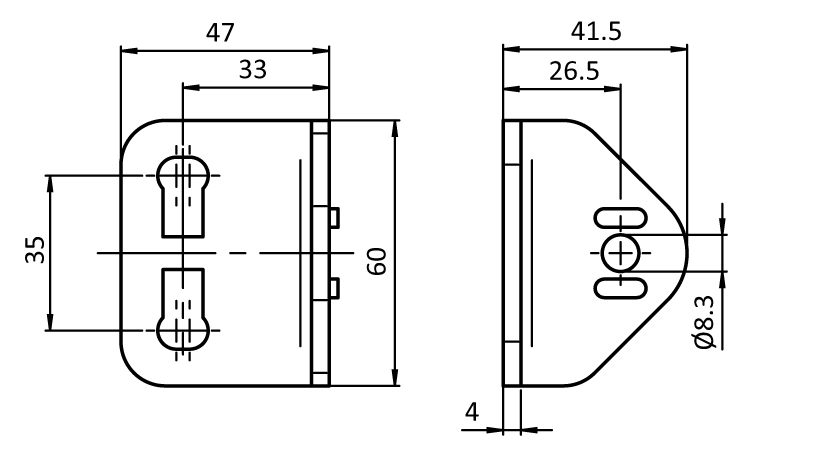

Drawing
From the FATH catalogue (EC-EN, p. 1061)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
