Mounting Bracket XST D30
Part #: 062MMD30MS01
To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 30 mm outer diameter
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 46 g
- ECLASS
- 36120492
- Category
- Brackets D30 for Roller Tracks
Description 062MMD30MS01

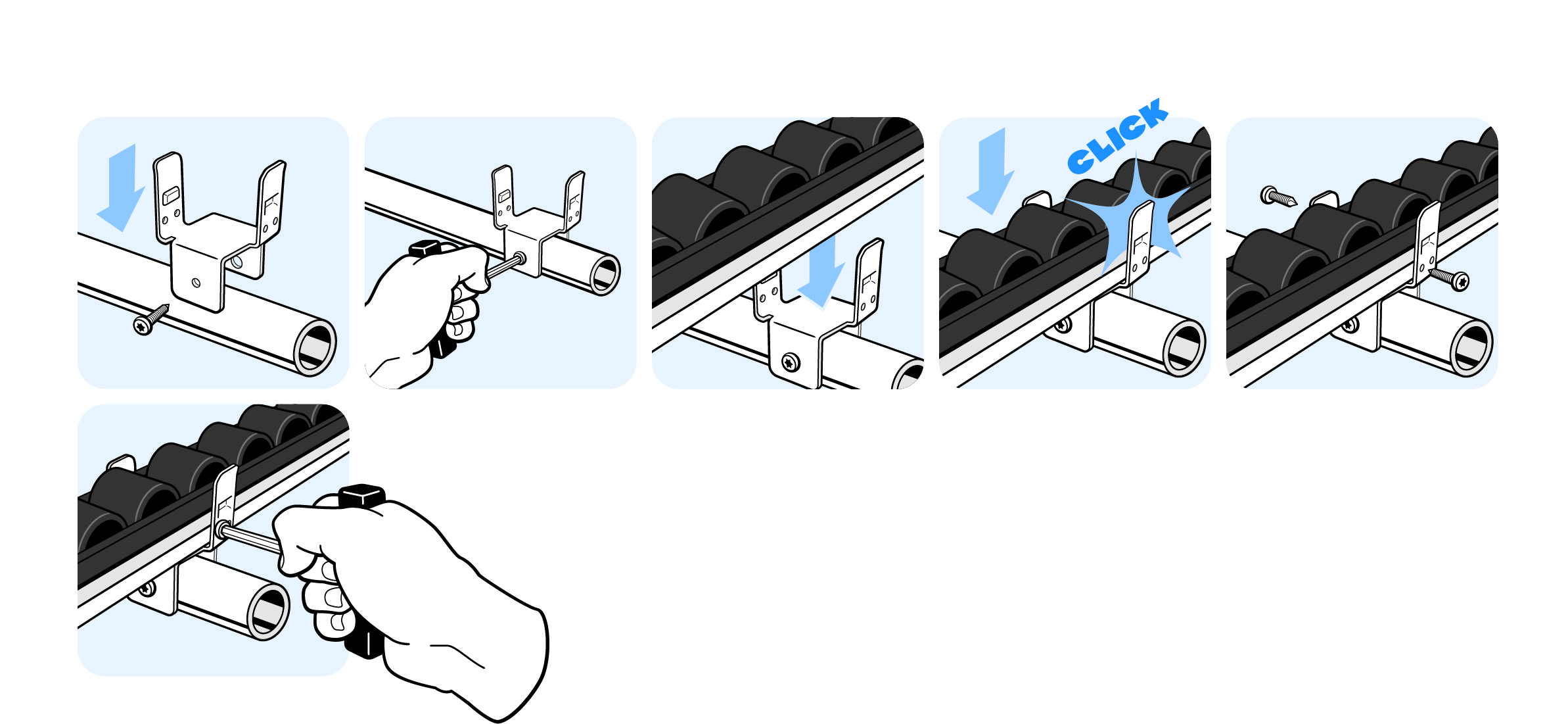

- Assembly Set
4 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3,9 x 16
- Description
To mount and support an roller track XST or a guiding rail XST central on a crossing tubular frame profile with Ø 30 mm outer diameter
- Material
Steel
- Specials
Other surfaces, other colors on request
- Surface
Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension D30 |
| Profile Form | Round Tubular Profiles |
| Application Area | Industrial Work Stations |
| Pack Quantity | 10 pieces |
| Model | For roller tracks XST |

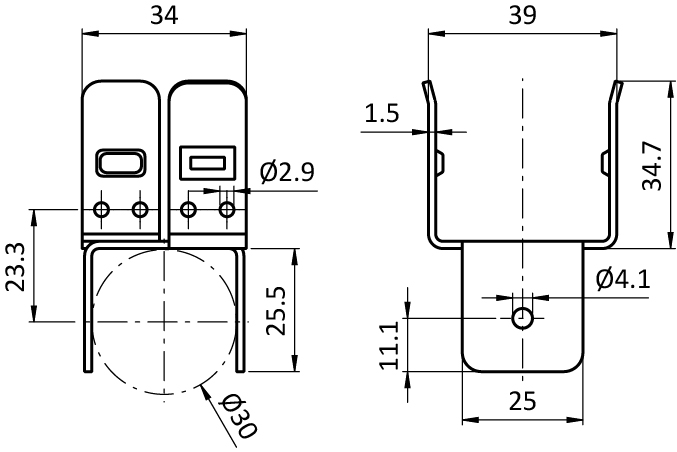

Drawing
From the FATH catalogue (EC-EN, p. 1123)
