FATH
Mounting Clamp D30 (Set)
Part #: 093PD30NS01

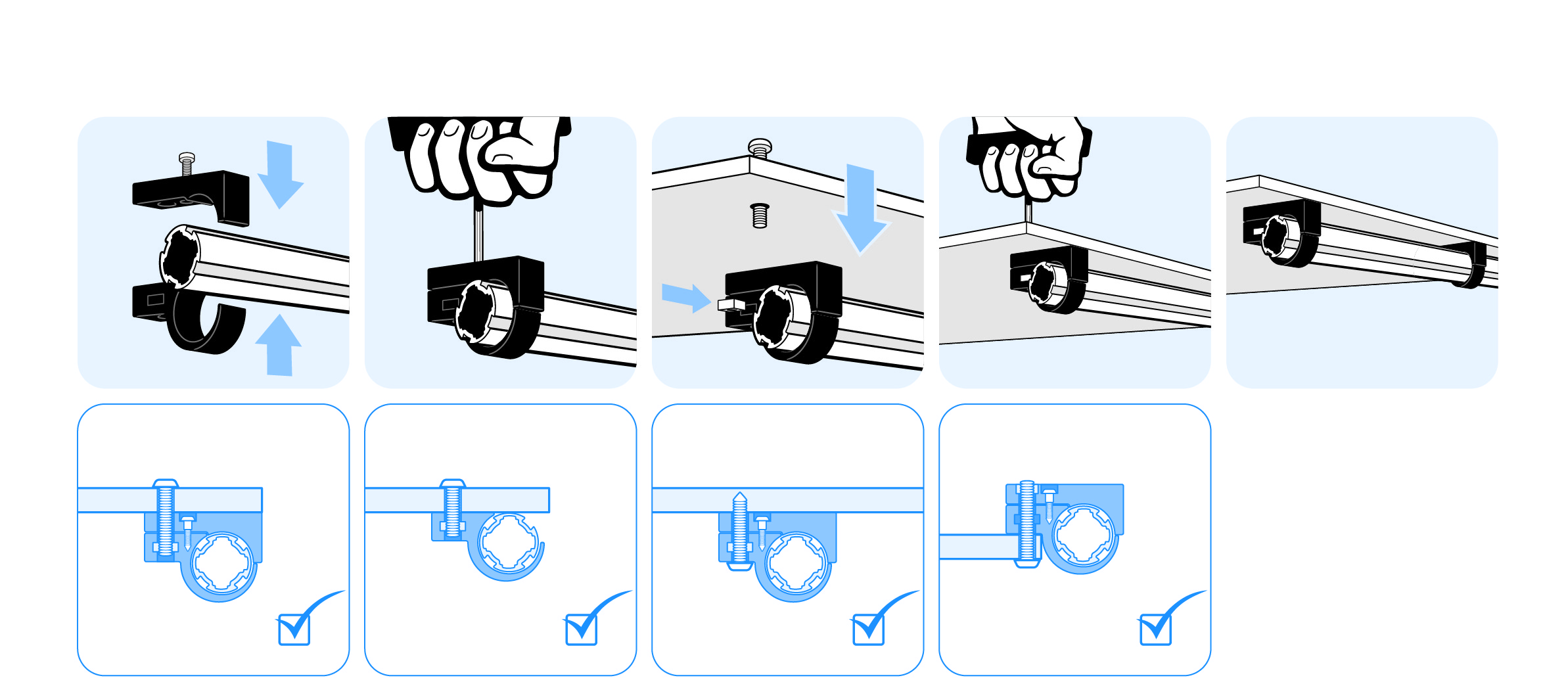

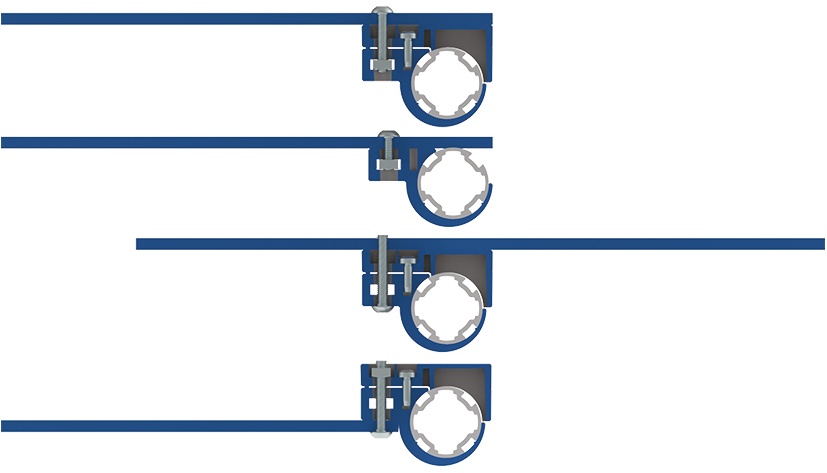

To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 17.2 g
- ECLASS
- 23360492
- Category
- Panel Holders D30
Description 093PD30NS01
- Color
Mounting clamp: Gray
Spacer: Gray
- Description
To attach panels universally to tubes and tubular frame profiles with Ø 30 mm outer diameter; including spacer to position panels over outer tubular frame connectors D30
- Material
Mounting clamp: Plastic PA
Spacer: Plastic PA
Assembly set: Steel
- Set
1 mounting clamp
1 spacer
1 square nut DIN 557 - M5
1 self-tapping screw SF4 x 12
- Surface
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension D30 |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

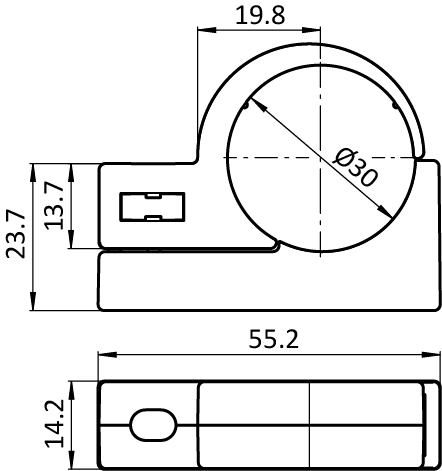

Drawing
From the FATH catalogue (EC-EN, p. 1115)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
