Mounting for Clamp Profile Connector 40 (Set)
Part #: 093XWWC401N08
To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 16 g
- ECLASS
- 23360492
- Category
- Clamp Profile Connectors
Description 093XWWC401N08
- Description
To attach frame elements to a frame structureby means of clamp profile connectors; completely preassembled, for lateral insertion into the profile slot, fixation by means of a nut; the upper monting defines the position in the structure, by shifting the lower mouting afterwards the frame can be fixed and locked; 12 mm gap between frame and structure, dimensional tolerances of +/- 3 mm can be compensated
- Material
T-slot nut: Steel
Shim: Steel
Nut: Steel
Screw: Steel
Ball: Stainless steel
- Set
Mounting, completely preassembled:
1 T-slot nut - slot 8 - M6,
1 shim DIN EN ISO 7093 (DIN 9021) - 6.4,
1 nut DIN EN ISO 4032 (DIN 934) - M6,
1 screw DIN 7984 - M6 x 30,
1 ball Ø 4
- Surface
T-slot nut: Zinc plated
Shim: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
Ball: Plain
- Tip
Compatible Clamp Profile Connector 40 (Set) see 093WWC401N08S01
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Intralogistics |
| Pack Quantity | 10 pieces |
| Model | Steel, slot 8 |

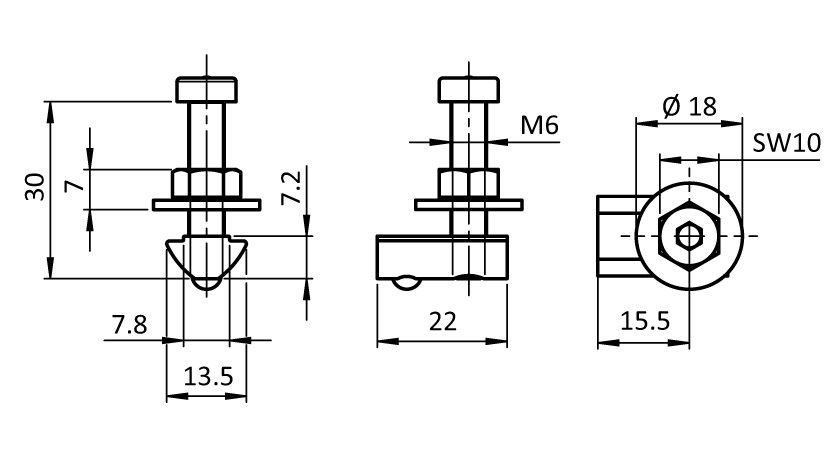

Drawing
From the FATH catalogue (EC-EN, p. 894)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
