Nut DIN 439 for Threaded Rods
Part #: 4DIN439BM10E · 20 variants
Flat jam nuts DIN EN ISO 4035 (DIN 439) for threaded rods
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 6 g
- ECLASS
- 23110702
- Category
- Jam Nuts for Feet
Versions
Select a version — the description and files below follow your selection.
| Part # | SW (mm) | Material | H (mm) | M | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 4DIN439BM10E✓ Selected | 17 | Stainless steel | 5.0 | M10 | 10 pieces | |
| 4DIN439BM10M | 17 | Steel | 5.0 | M10 | 10 pieces | |
| 4DIN439BM12E | 19 | Stainless steel | 6.0 | M12 | 10 pieces | |
| 4DIN439BM12M | 19 | Steel | 6.0 | M12 | 10 pieces | |
| 4DIN439BM14E | 22 | Stainless steel | 7.0 | M14 | 10 pieces | |
| 4DIN439BM14M | 22 | Steel | 7.0 | M14 | 10 pieces | |
| 4DIN439BM16E | 24 | Stainless steel | 7.9 | M16 | 100 pieces | |
| 4DIN439BM16M | 24 | Steel | 7.9 | M16 | 10 pieces | |
| 4DIN439BM20E | 30 | Stainless steel | 10.0 | M20 | 10 pieces | |
| 4DIN439BM20M | 30 | Steel | 10.0 | M20 | 10 pieces | |
| 4DIN439BM24E | 36 | Stainless steel | 12.0 | M24 | 10 pieces | |
| 4DIN439BM24M | 36 | Steel | 12.0 | M24 | 10 pieces | |
| 4DIN439BM30E | 46 | Stainless steel | 15.0 | M30 | 10 pieces | |
| 4DIN439BM30M | 46 | Steel | 15.0 | M30 | 10 pieces | |
| 4DIN439BM5E | 8 | Stainless steel | 2.7 | M5 | 10 pieces | |
| 4DIN439BM5M | 8 | Steel | 2.7 | M5 | 10 pieces | |
| 4DIN439BM6E | 10 | Stainless steel | 3.2 | M6 | 10 pieces | |
| 4DIN439BM6M | 10 | Steel | 3.2 | M6 | 10 pieces | |
| 4DIN439BM8E | 13 | Stainless steel | 4.0 | M8 | 10 pieces | |
| 4DIN439BM8M | 13 | Steel | 4.0 | M8 | 10 pieces |
Description 4DIN439BM10E
- Description
Flat jam nuts DIN EN ISO 4035 (DIN 439) for threaded rods
- Material
Steel / stainless steel
- Surface
Zinc plated / plain
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Stainless |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Steel / stainless steel |

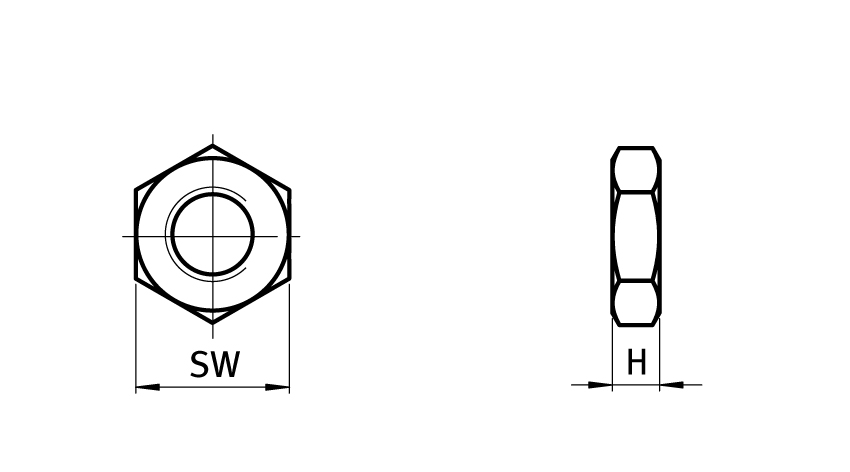

Drawing
From the FATH catalogue (EC-EN, p. 80)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
