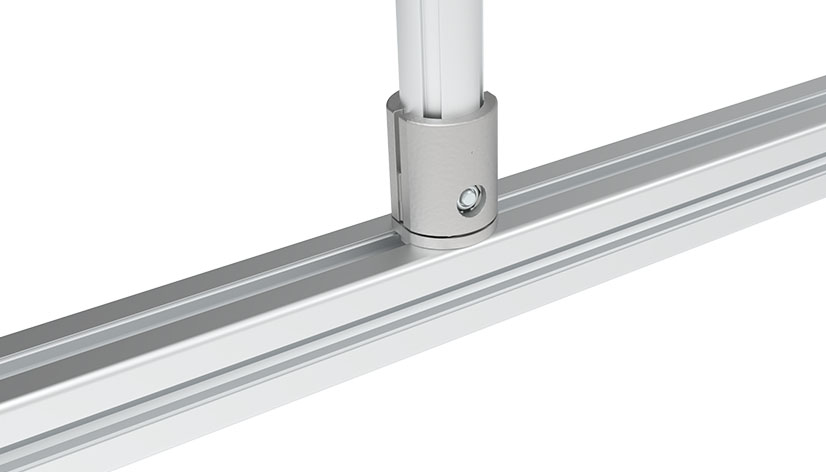

Outer T-connector D30 - Slot 8 (Set)
Part #: 099RV3090LS02
To connect a tubular frame profile with Ø 30 mm outer diameter with a slot 8 aluminum profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 140.5 g
- ECLASS
- 23360290
- Category
- Connectors D30
Description 099RV3090LS02
- Description
To connect a tubular frame profile with Ø 30 mm outer diameter with a slot 8 aluminum profile
- Fastening
On profile I - slot 8 - using screw DIN EN ISO 7380 (DIN 34805) - M6 x 14
- Material
Connector: Aluminum die-cast
Adapter plate: Aluminum die-cast
Assembly set: Steel
- Set
2 components for outer T-connector D30 - slot 8
1 adapter plate
1 screw DIN EN ISO 4762 (DIN 912) - M6 x 28
1 self locking nut DIN EN ISO 4032 (DIN 934) - M6
- Surface
Assembly set: Zinc plated
- Tip
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Properties
| Profile Type | Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension D30 |
| Product Feature | ESD |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

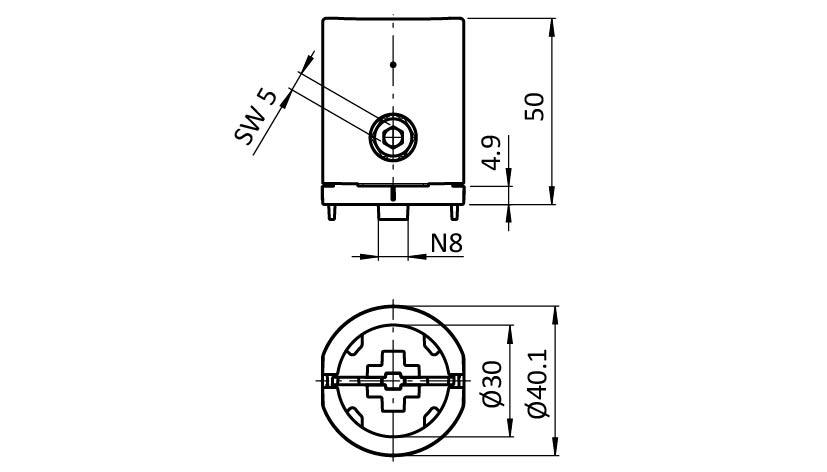

Drawing
From the FATH catalogue (EC-EN, p. 1098)
