FATH

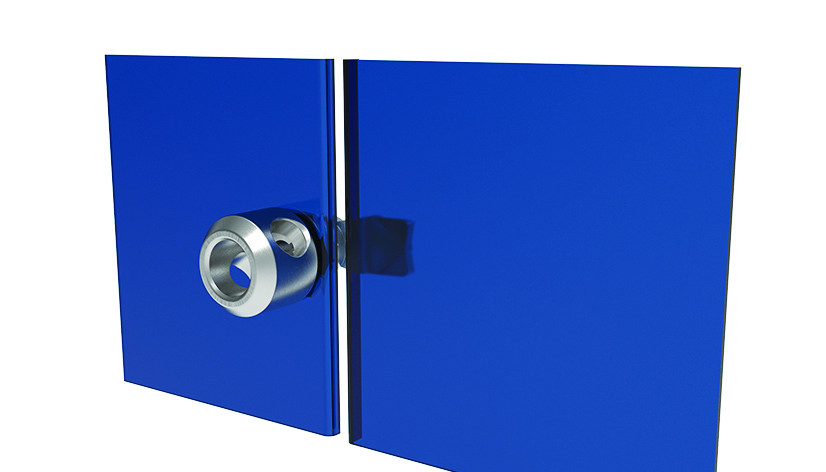

Padlock Compatible Quarter Turn Lock 22.5 / 22, SS
Part #: 0810579 · 16 variants
For easy and secure latching and locking of doors and flaps with padlock option; Wide range of inserts, cams and accessories; Two and four padlock holes
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 170.4 g
- ECLASS
- 23199090
- Category
- Padlock Compatible Quarter Turn Locks
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Insert type | Add 1 pc to enquiry |
|---|---|---|---|
| 0810579✓ Selected | Housing with two padlock holes | Double bit 3.0 mm | |
| 0810580 | Housing with two padlock holes | Double bit 4.0 mm | |
| 0810581 | Housing with two padlock holes | Double bit 5.0 mm | |
| 0810582 | Housing with two padlock holes | Slotted recess 2 x 4 | |
| 0810583 | Housing with two padlock holes | Triangular 7.0 mm | |
| 0810584 | Housing with two padlock holes | Triangular 8.0 mm | |
| 0810585 | Housing with two padlock holes | Square 7.0 mm | |
| 0810586 | Housing with two padlock holes | Square 8.0 mm | |
| 0812142E | Housing with four padlock holes | Double bit 3.0 mm | |
| 0812143E | Housing with four padlock holes | Double bit 4.0 mm | |
| 0812144E | Housing with four padlock holes | Double bit 5.0 mm | |
| 0812145E | Housing with four padlock holes | Slotted recess 2 x 4 | |
| 0812146E | Housing with four padlock holes | Triangular 7.0 mm | |
| 0812147E | Housing with four padlock holes | Triangular 8.0 mm | |
| 0812148E | Housing with four padlock holes | Square 7.0 mm | |
| 0812149E | Housing with four padlock holes | Square 8.0 mm |
Description 0810579
- Color
Seals: Black
- Description
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
- Material
Insert: Stainless steel SS316
Housing: Stainless steel SS316
Cam: Steel
Seals: Rubber NBR
Nut: Stainless steel SS316
Screw: Stainless steel SS316
- Surface
Cam: Zinc plated
- Tip
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Door Version | Right, left |

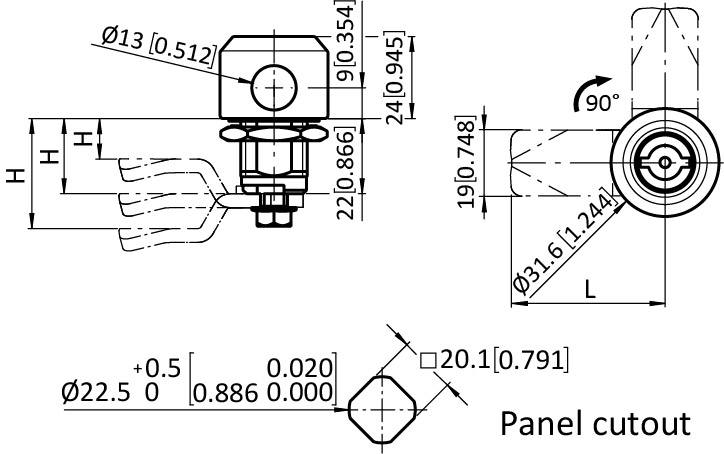

Drawing
From the FATH catalogue (IH-US-EN, p. 38)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
