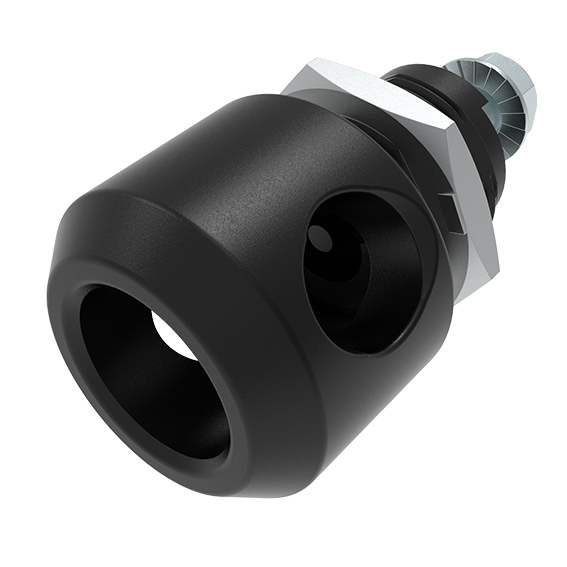

Padlock Compatible Quarter Turn Lock 22.5 / 22, ZN Black
Part #: 0810571 · 16 variants
For easy and secure latching and locking of doors and flaps with padlock option; Wide range of inserts, cams and accessories; Two and four padlock holes
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 146.8 g
- ECLASS
- 23199090
- Category
- Padlock Compatible Quarter Turn Locks
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Insert type | Add 1 pc to enquiry |
|---|---|---|---|
| 0810571✓ Selected | Housing with two padlock holes | Double bit 3.0 mm | |
| 0810572 | Housing with two padlock holes | Double bit 4.0 mm | |
| 0810573 | Housing with two padlock holes | Double bit 5.0 mm | |
| 0810574 | Housing with two padlock holes | Slotted recess 2 x 4 | |
| 0810575 | Housing with two padlock holes | Triangular 7.0 mm | |
| 0810576 | Housing with two padlock holes | Triangular 8.0 mm | |
| 0810577 | Housing with two padlock holes | Square 7.0 mm | |
| 0810578 | Housing with two padlock holes | Square 8.0 mm | |
| 0812142 | Housing with four padlock holes | Double bit 3.0 mm | |
| 0812143 | Housing with four padlock holes | Double bit 4.0 mm | |
| 0812144 | Housing with four padlock holes | Double bit 5.0 mm | |
| 0812145 | Housing with four padlock holes | Slotted recess 2 x 4 | |
| 0812146 | Housing with four padlock holes | Triangular 7.0 mm | |
| 0812147 | Housing with four padlock holes | Triangular 8.0 mm | |
| 0812148 | Housing with four padlock holes | Square 7.0 mm | |
| 0812149 | Housing with four padlock holes | Square 8.0 mm |
Description 0810571
- Color
Insert: Black
Housing: Black
Seals: Black
- Description

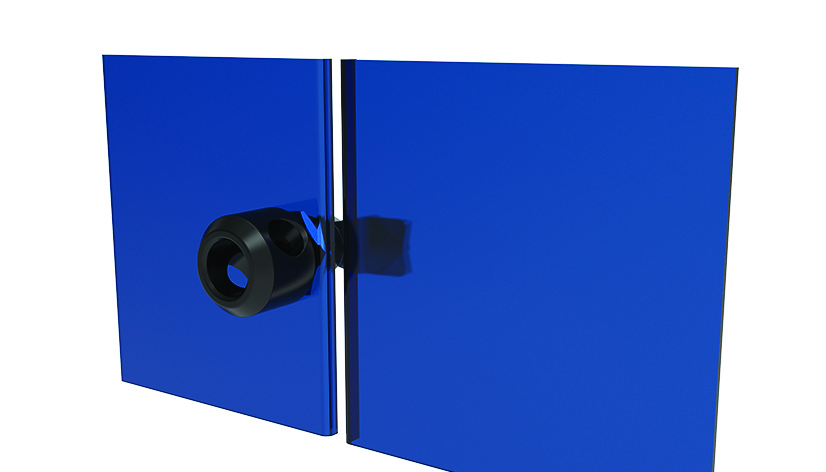

For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
- Material
Insert: Zinc die-cast
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
- Surface
Insert: Powder coated
Housing: Powder coated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated
- Tip
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Door Version | Right, left |

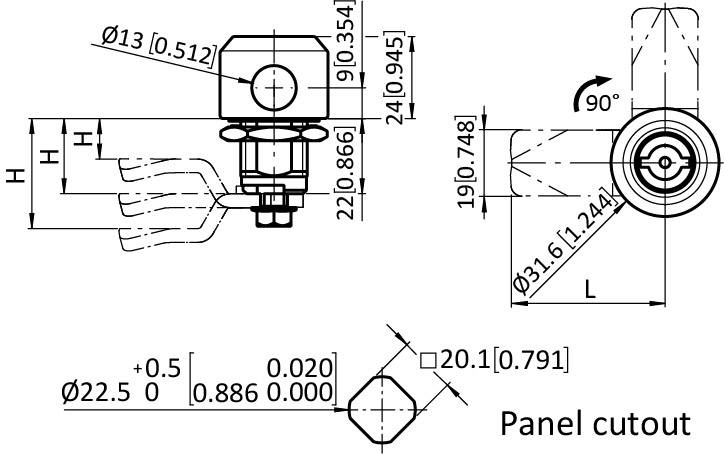

Drawing
From the FATH catalogue (IH-US-EN, p. 38)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
