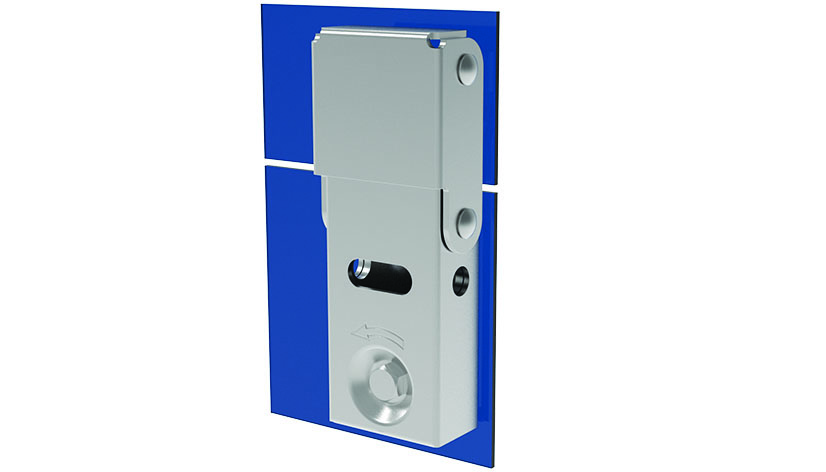

Padlock Over-Center Draw Latch
Part #: 0813062 · 3 variants
For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 460.9 g
- ECLASS
- 23199090
- Category
- Over-Center Draw Latches
Versions
Select a version — the description and files below follow your selection.
Description 0813062
- Description
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
- Material
Draw latch: Stainless steel / steel
Lever: Stainless steel / steel
Mounting plate: Stainless steel / steel
Pins: Stainless steel
Return spring: Spring steel SS9260
Catch: Stainless steel / steel
- Surface
Draw latch: Plain / zinc plated
Lever: Plain / zinc plated
Mounting plate: Plain / zinc plated
Catch: Plain / zinc plated
Properties
| Product Feature | Stainless |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |

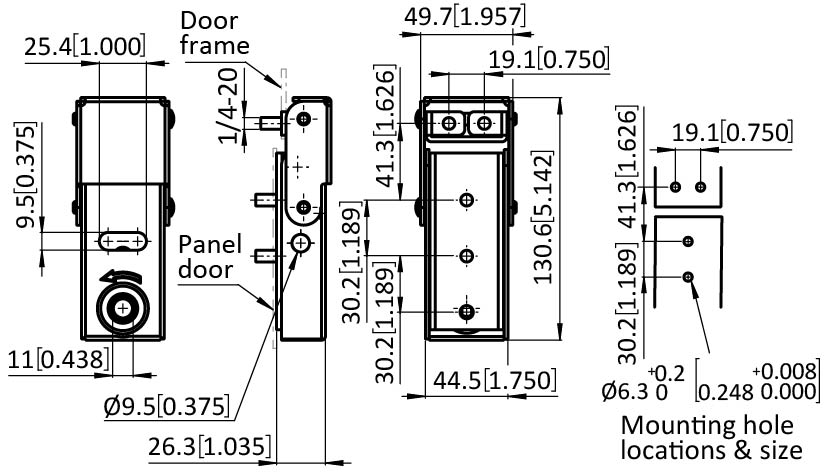

Drawing
From the FATH catalogue (IH-US-EN, p. 80)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
