FATH

Panel Holder

Part #: 093P20N · 4 variants

To attach panels easily to aluminum profiles

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

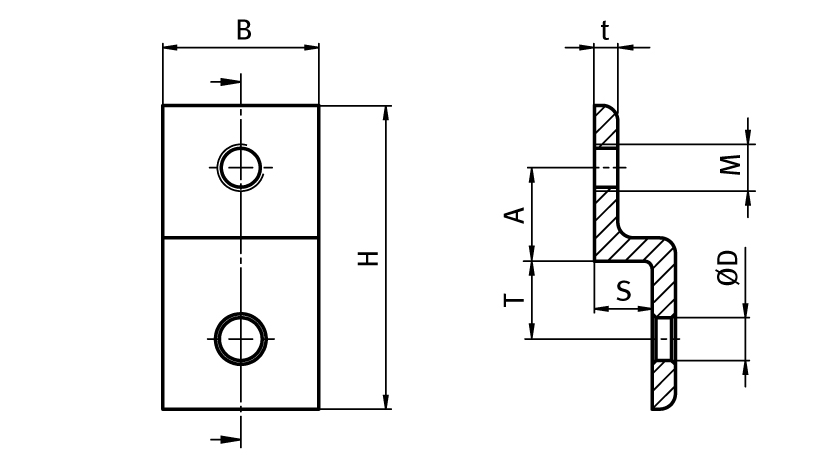

Part #	H (mm)	A (mm)	B (mm)	S (mm)	Modular Dimension (mm)	ØD (mm)	t (mm)	T (mm)
093P20N✓ Selected	39.0	12.0	20.0	7.4	20	5.5	3.0	10.0
093P30N	68.0	23.0	30.0	11.0	30	9.0	6.0	15.0
093P40N	78.0	24.0	40.0	16.0	40	9.0	6.0	20.0
093P45N	88.0	26.5	45.0	17.5	45	9.0	6.0	22.5

Profile Type	Profile Type B, Profile Type I
Modular Dimension	Modular Dimension 20
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Aluminum

From the FATH catalogue (EC-EN, p. 963)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
