FATH
Pivot Joint 180°, 2 Slots
Part #: 093GV2040 · 4 variants
To make a pivoting connection between two profiles, with separate locating pins
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 45 g
- ECLASS
- 23360301
- Category
- Pivot Joints 180°
Versions
Select a version — the description and files below follow your selection.
| Part # | D (mm) | H (mm) | B (mm) | Slot N (mm) | Modular Dimension (mm) | E (mm) | G (mm) | ØF (mm) | ØS (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 093GV2040✓ Selected | 20.0 | 61.0 | 40.4 | 5 / 6 | 20 | 18.0 | 20.0 | 5.5 | 5.2 | 10 pieces | |
| 093GV3060 | 30.0 | 86.0 | 60.4 | 6 / 8 | 30 | 28.0 | 30.0 | 6.5 | 6.4 | 10 pieces | |
| 093GV4080 | 40.0 | 121.5 | 80.6 | 8 / 10 | 40 | 37.0 | 40.0 | 8.5 | 8.5 | 1 piece | |
| 093GV4590 | 45.0 | 141.5 | 90.6 | 8 / 10 | 45 | 42.0 | 45.0 | 8.5 | 8.5 | 10 pieces |
Description 093GV2040
- Color
Alu color
- Description
To make a pivoting connection between two profiles, with separate locating pins
- Material
Joint: Aluminum die-cast
Centering piece 5/6 and 6/8: Plastic PA
Centering piece 8/10: Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Joint: Powder coated
Centering piece: Plain
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 5, Slot 6 |
| Modular Dimension | Modular Dimension 20 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, plastic, zinc die-cast |

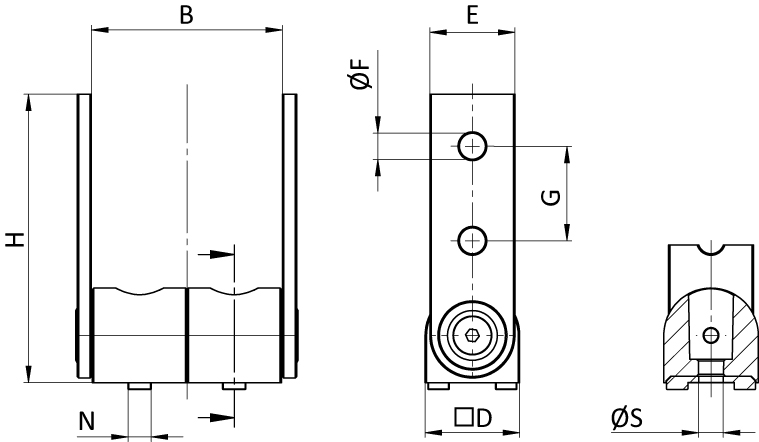

Drawing
From the FATH catalogue (EC-EN, p. 587)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
