FATH
Pivot Joint 20
Part #: 093GA20AN
To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 18 g
- ECLASS
- 23360301
- Category
- for Profile 20, Pivot Joints
Description 093GA20AN
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels; with separate locating pins for slot 5 and slot 6; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Aluminum die-cast
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 5, Slot 6 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | With adjustable friction, aluminum die-cast |

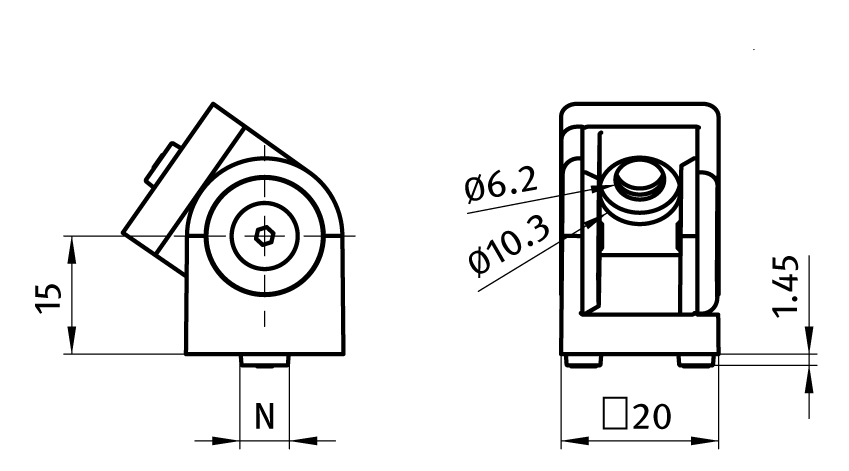

Drawing
From the FATH catalogue (EC-EN, p. 558)
