FATH

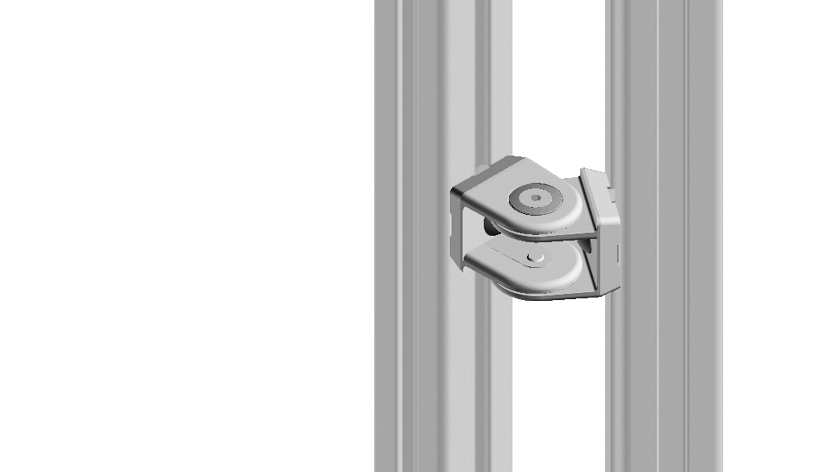

Pivot Joint 25 - 1"
Part #: 093G25A · 2 variants

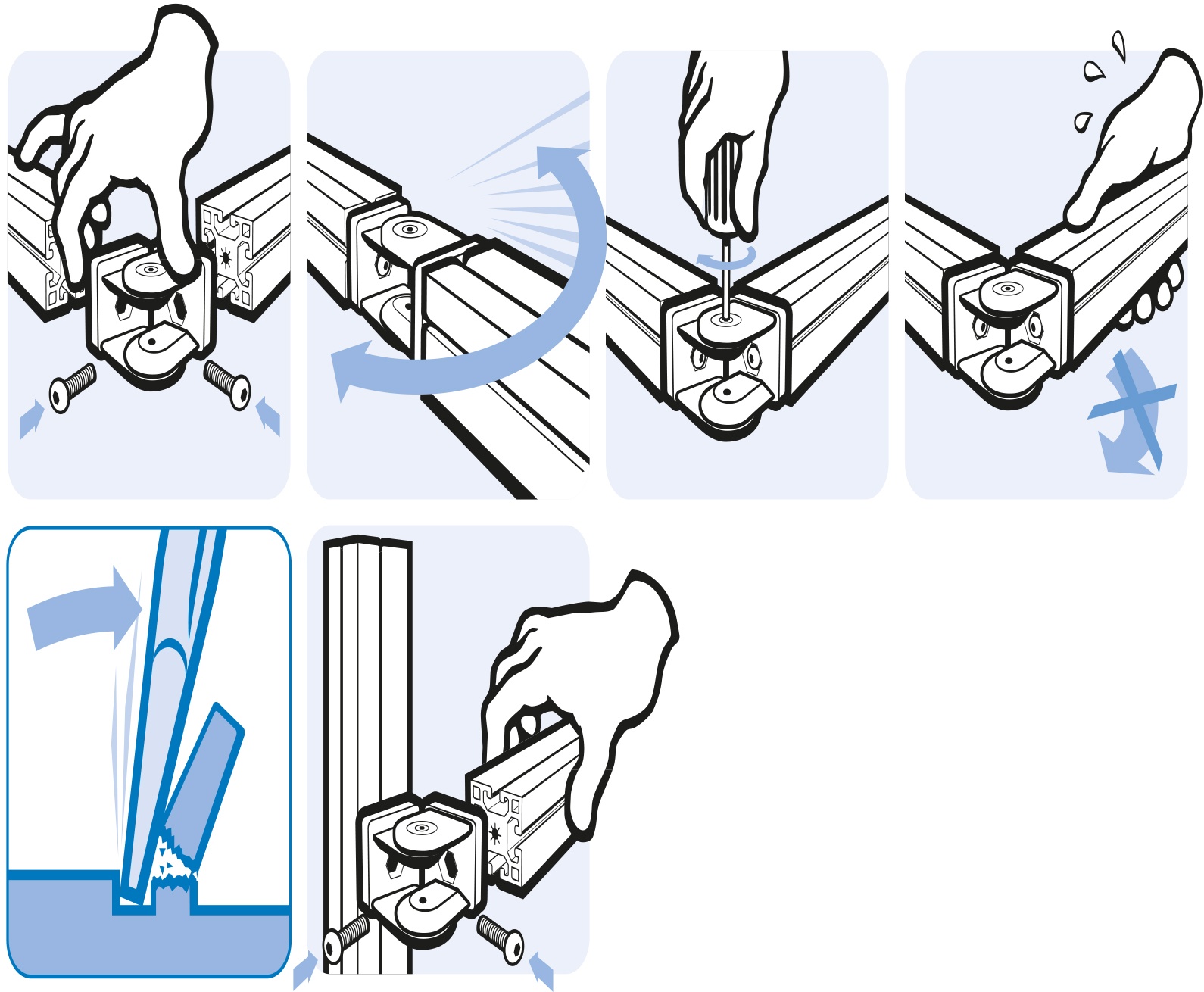

To make a pivoting connection between two profiles or panels; fixed locating pins for slot 6 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 116 g
- ECLASS
- 23360301
- Category
- for Profile 1", Pivot Joints
Versions
Select a version — the description and files below follow your selection.

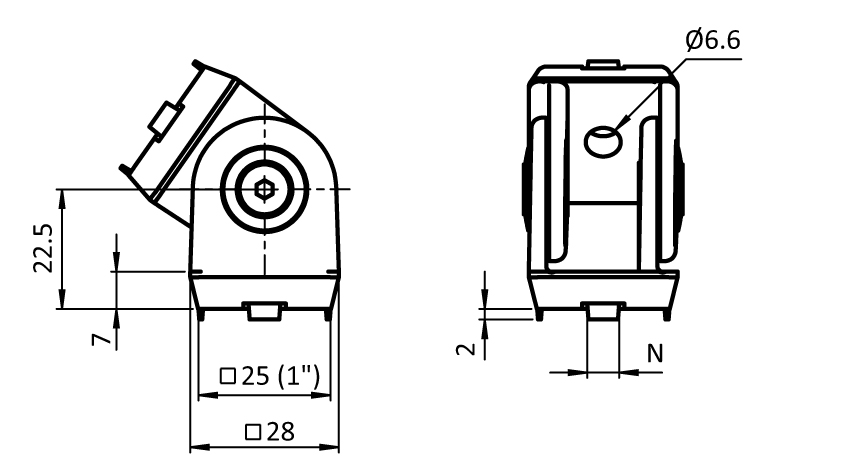

| Part # | Slot N (mm) | Opening Angle | Add 1 pc to enquiry |
|---|---|---|---|
| 093G25A✓ Selected | - | 190° | |
| 093G25AN06 | 6 | 190° |
Description 093G25A
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels; fixed locating pins for slot 6 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Product Feature | Fractional |
|---|---|
| Pack Quantity | 10 pieces |
| Model | With adjustable friction, zinc die-cast |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
