FATH
Pivot Joint 25 x 51 - 1" x 2" with Locking Lever
Part #: 093GAF2551A

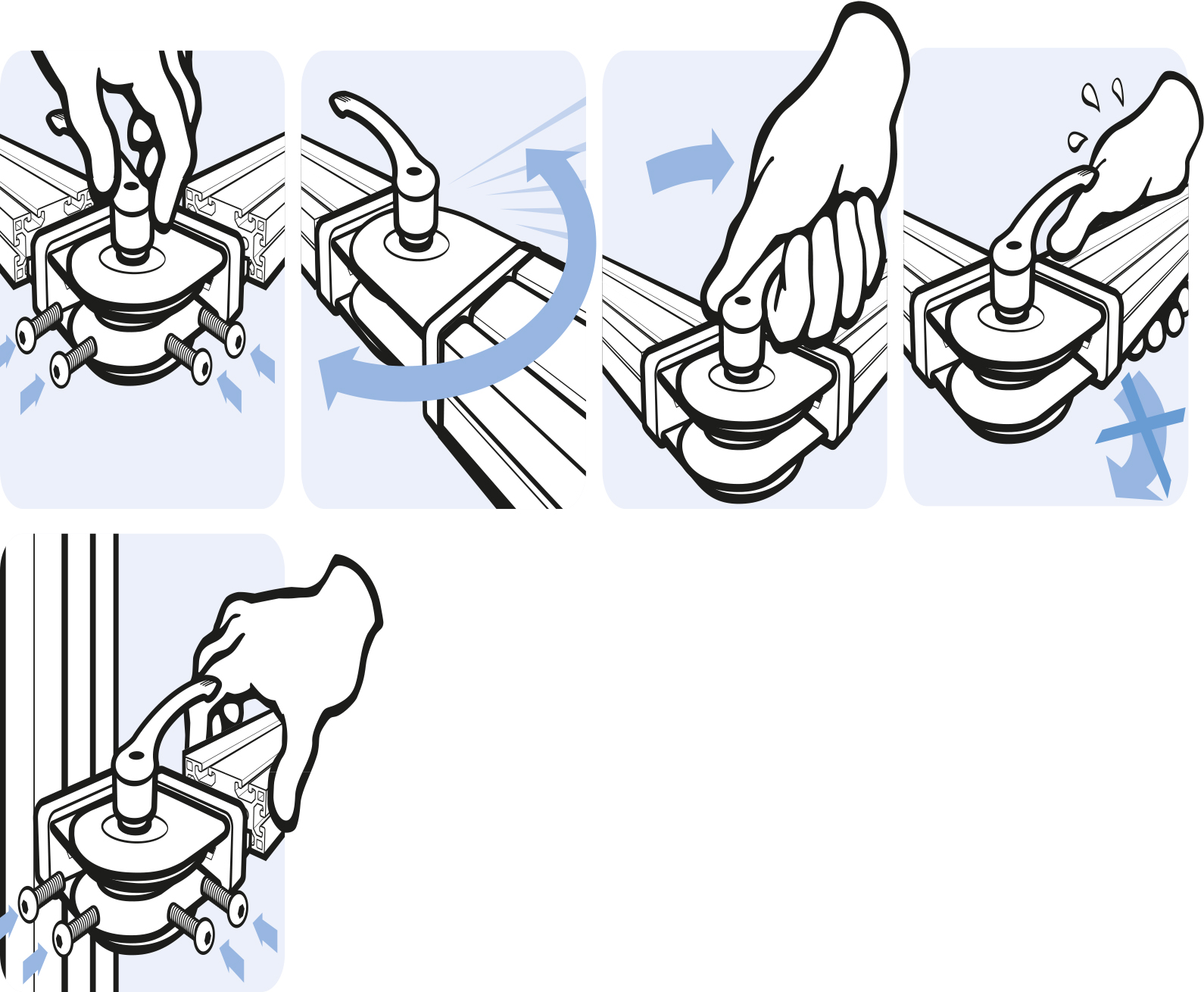

To make a pivoting connection between two profiles or panels which can be fixed at any angle; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 98 g
- ECLASS
- 23360301
- Category
- for Profile 1", Pivot Joints
Description 093GAF2551A
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels which can be fixed at any angle; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Joint: Aluminum die-cast
KIPP-locking lever: Plastic PA, glass fiber reinforced
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Product Feature | Fractional |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

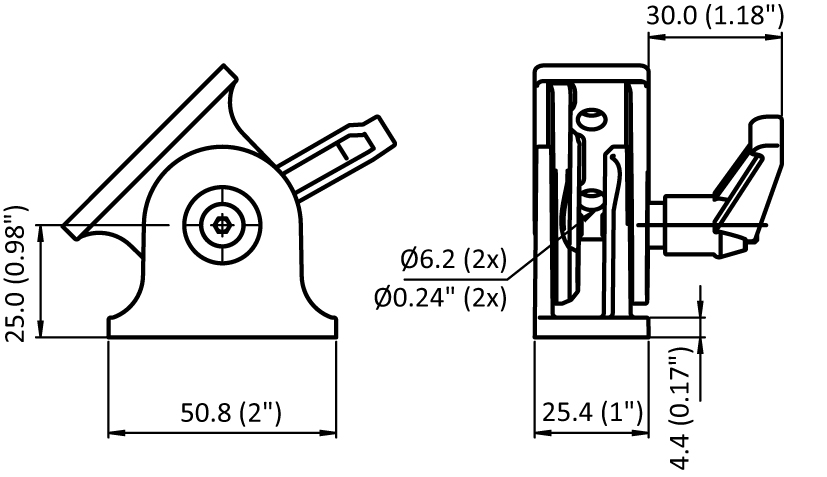

Drawing
From the FATH catalogue (EC-EN, p. 565)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
