Pivot Joint 30
Part #: 093G30A · 3 variants

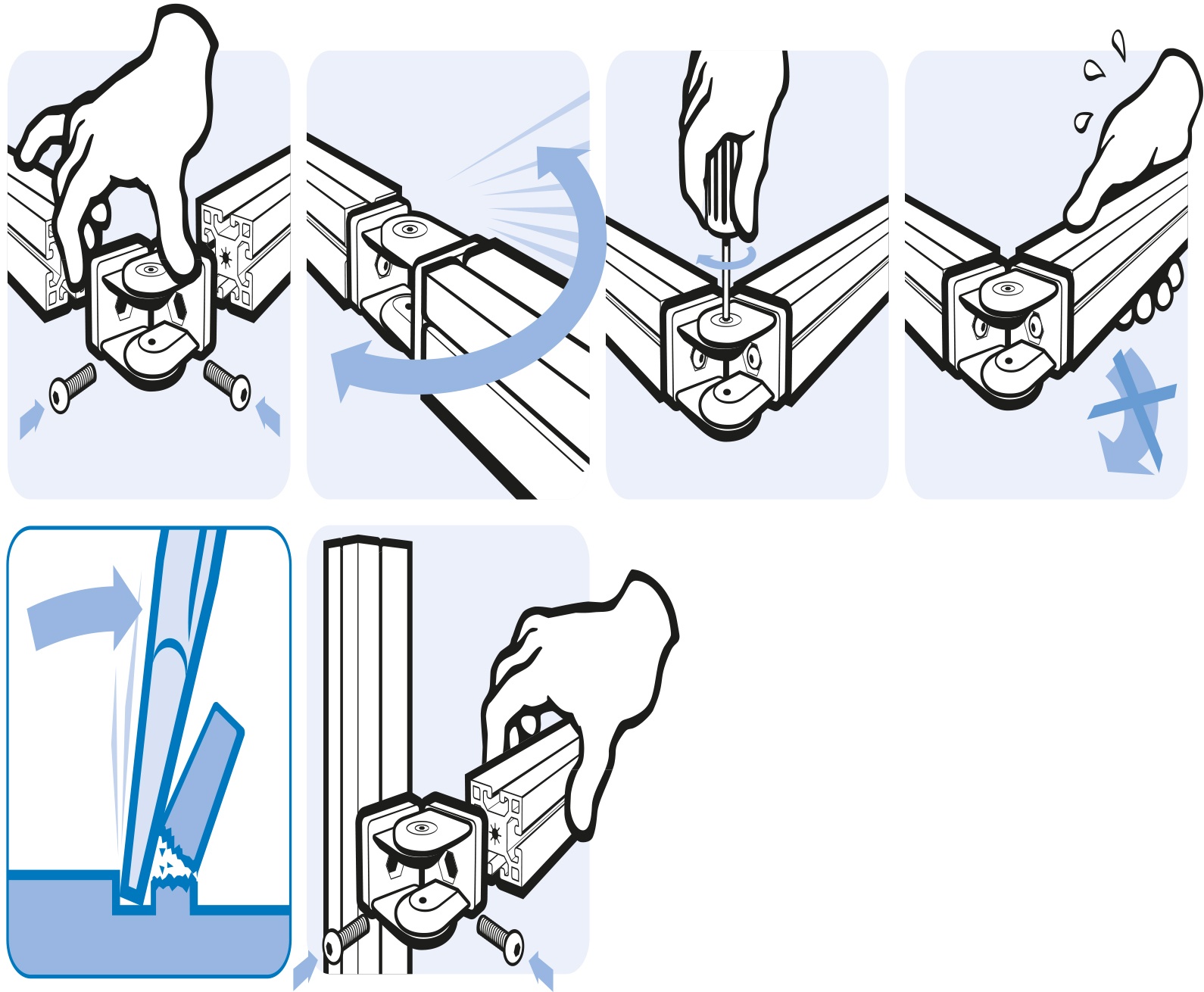

To make a pivoting connection between 2 profiles or panels, fixed locating pins for slot 6 or 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 134 g
- ECLASS
- 23360301
- Category
- for Profile 30, Pivot Joints
Versions
Select a version — the description and files below follow your selection.
| Part # | Slot N (mm) | ØD (mm) | Opening Angle | Add 1 pc to enquiry |
|---|---|---|---|---|
| 093G30A✓ Selected | - | 8.3 | 183° | |
| 093G30AN06 | 6 | 6.6 | 183° | |
| 093G30AN08 | 8 | 8.3 | 183° |
Description 093G30A
- Color
Alu color
- Description
To make a pivoting connection between 2 profiles or panels, fixed locating pins for slot 6 or 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | With adjustable friction, zinc die-cast |

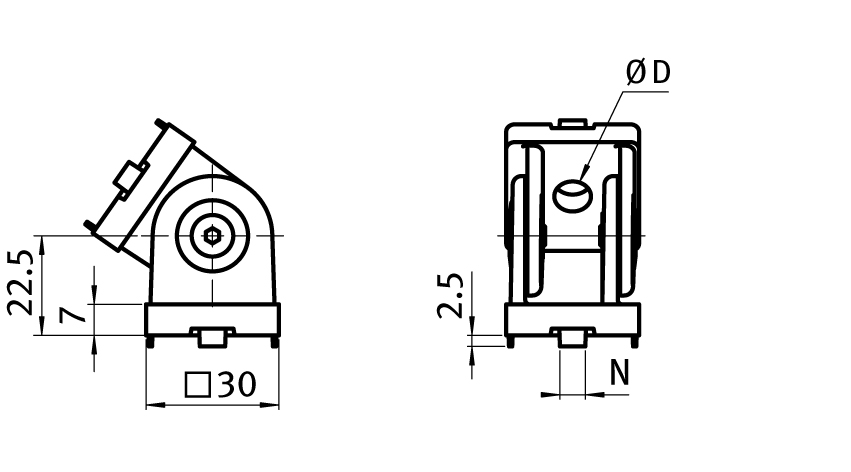

Drawing
From the FATH catalogue (EC-EN, p. 568)
