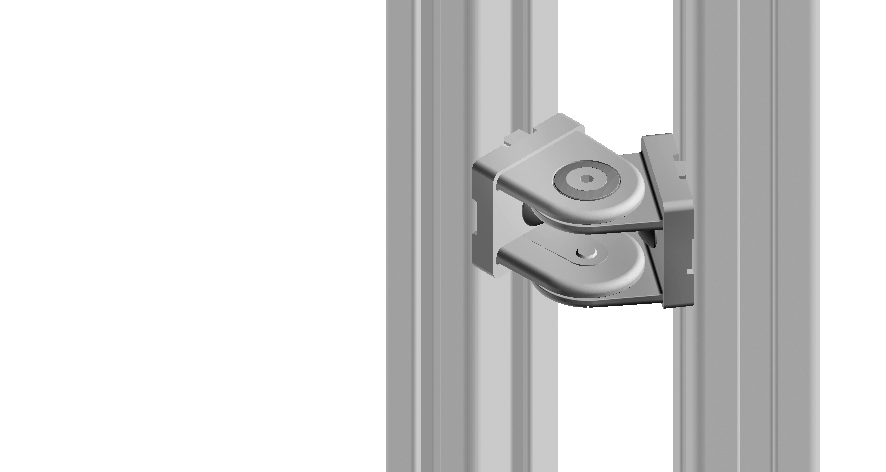

Pivot Joint 38 - 1.5"
Part #: 093G38A · 2 variants

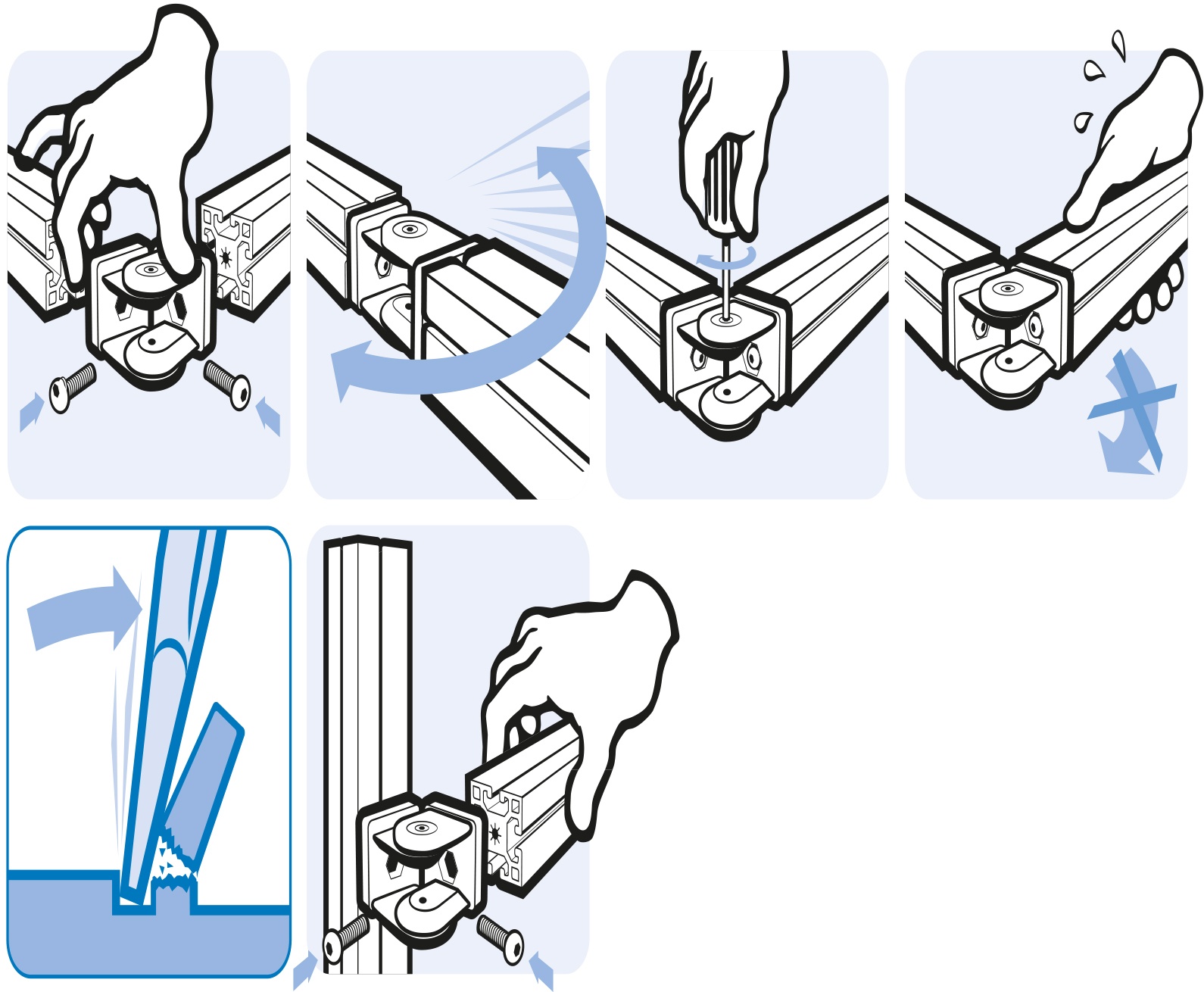

To make a pivoting connection between two profiles or panels; fixed locating pins for slot 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 321 g
- ECLASS
- 23360301
- Category
- for Profile 1.5", Pivot Joints
Versions
Select a version — the description and files below follow your selection.
| Part # | Slot N (mm) | Opening Angle | Add 1 pc to enquiry |
|---|---|---|---|
| 093G38A✓ Selected | - | 190° | |
| 093G38AN08 | 8 | 190° |
Description 093G38A
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels; fixed locating pins for slot 8 optional; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Product Feature | Fractional |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | With adjustable friction, zinc die-cast |

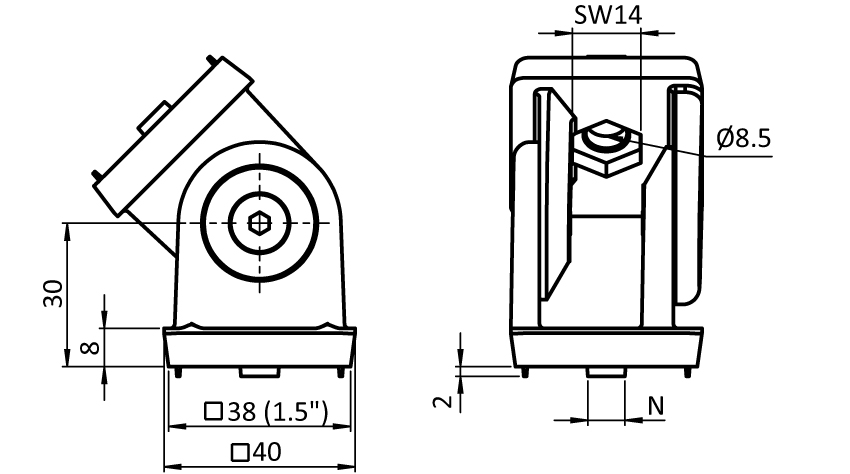

Drawing
From the FATH catalogue (EC-EN, p. 571)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
