Pivot Joint 38 x 76 - 1.5" x 3" with Locking Lever
Part #: 093GF3876AN
To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 970 g
- ECLASS
- 23360301
- Category
- for Profile 1.5" x 3.0", Pivot Joints
Description 093GF3876AN
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels which can be fixed at any angle; with separate locating pins for slot 8 and 10; by tightening or loosening the screws and the KIPP-locking lever you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Joint: Zinc die-cast
KIPP-locking lever: Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Slot Size | Slot 8, Slot 10 |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast |

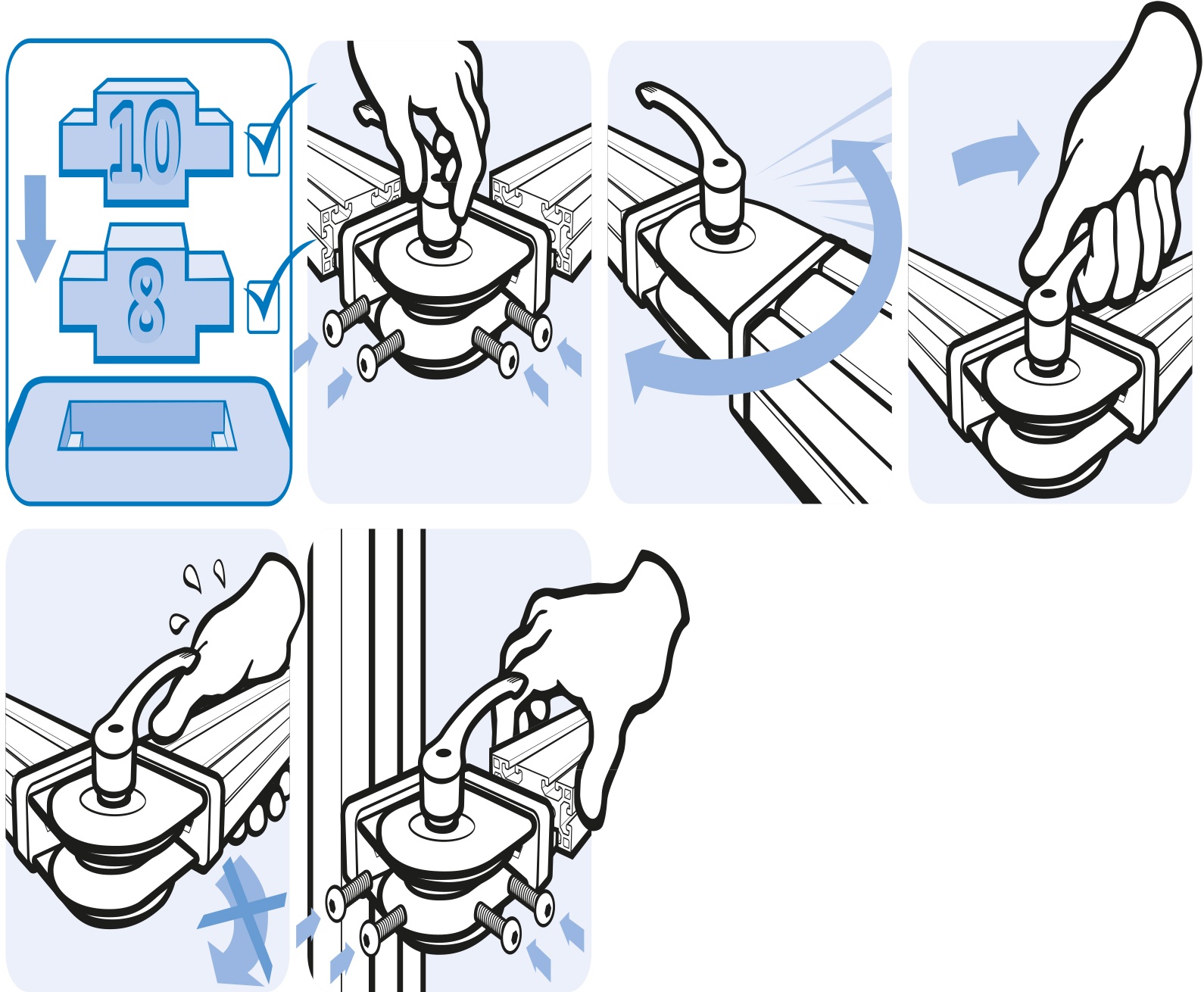

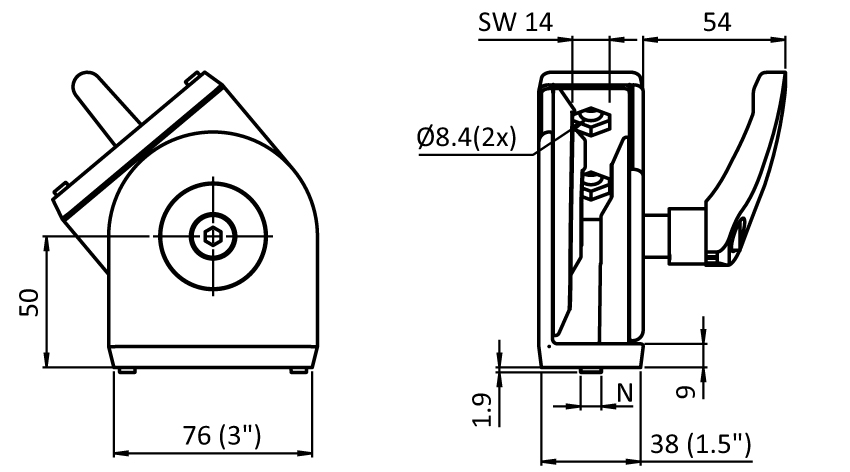

Drawing
From the FATH catalogue (EC-EN, p. 574)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
