FATH

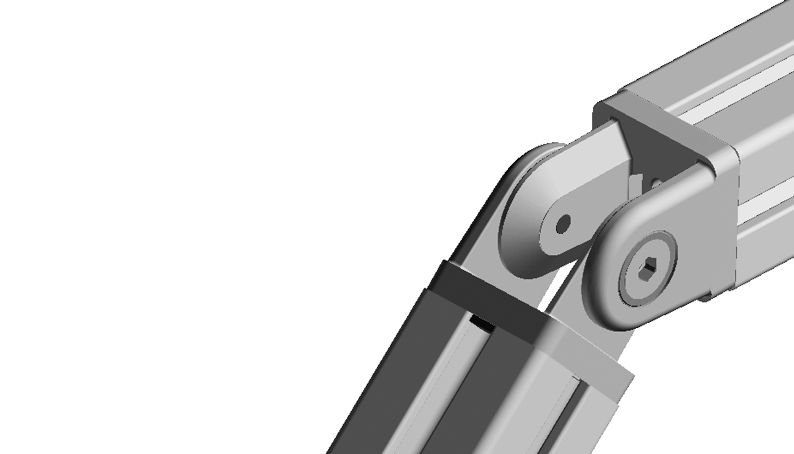

Pivot Joint 45
Part #: 093GA45AN

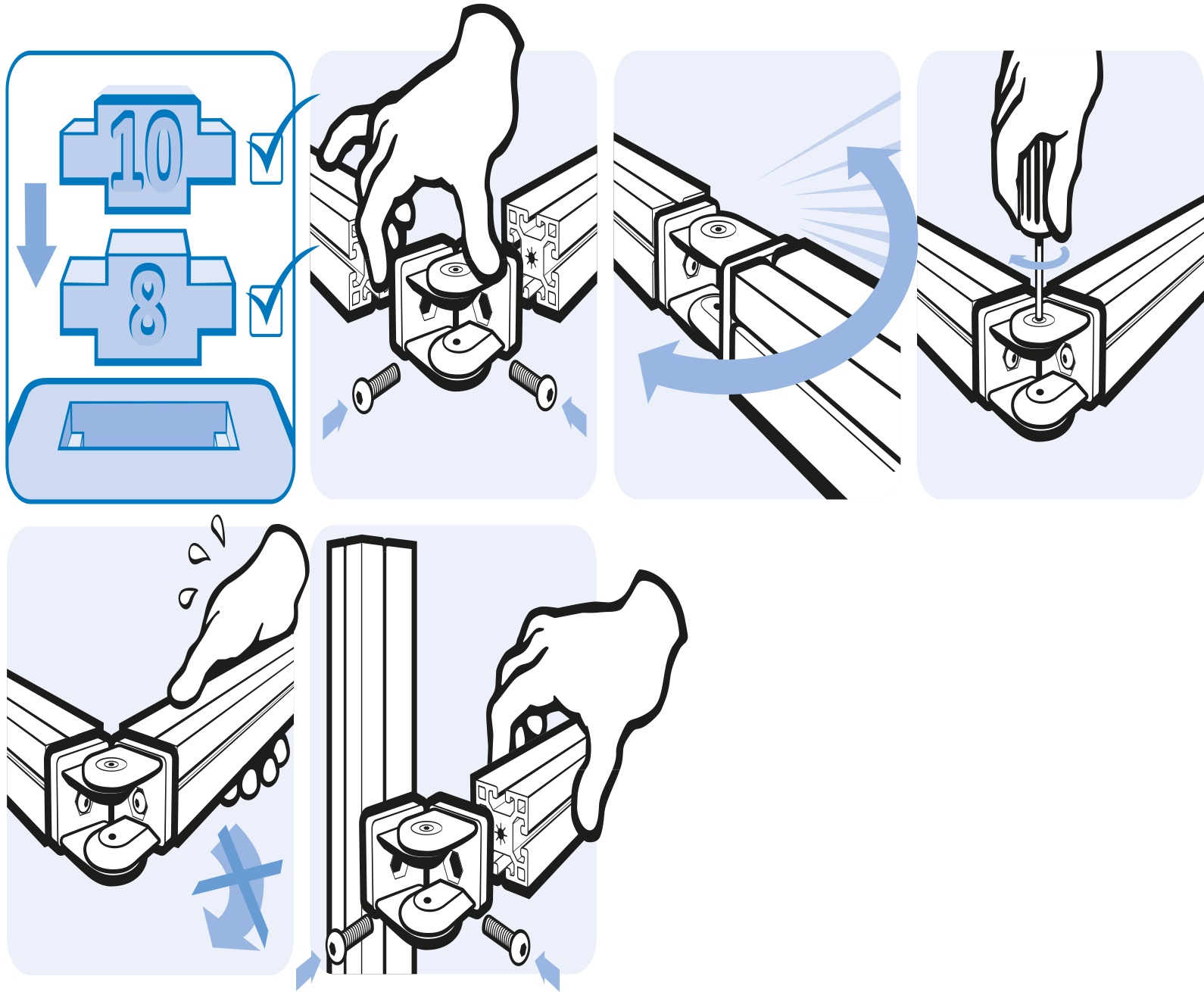

To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 264 g
- ECLASS
- 23360301
- Category
- for Profile 45, Pivot Joints
Description 093GA45AN
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Aluminum die-cast
- Surface
Powder coated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8, Slot 10 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | With adjustable friction, aluminum die-cast |

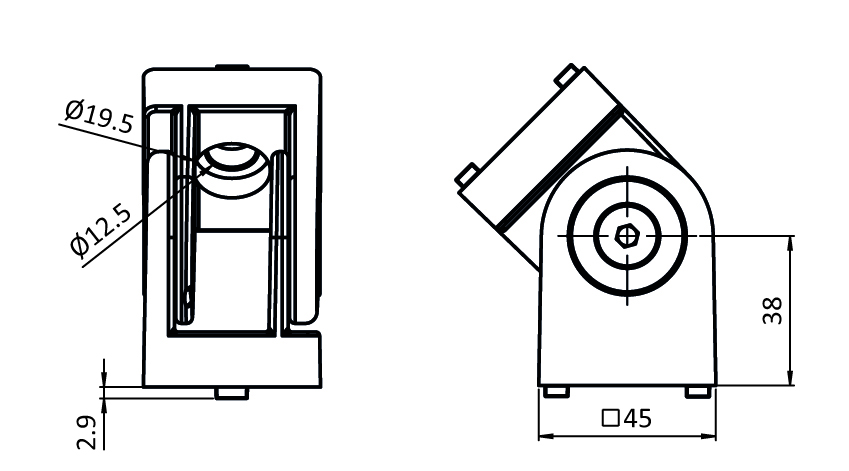

Drawing
From the FATH catalogue (EC-EN, p. 580)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
