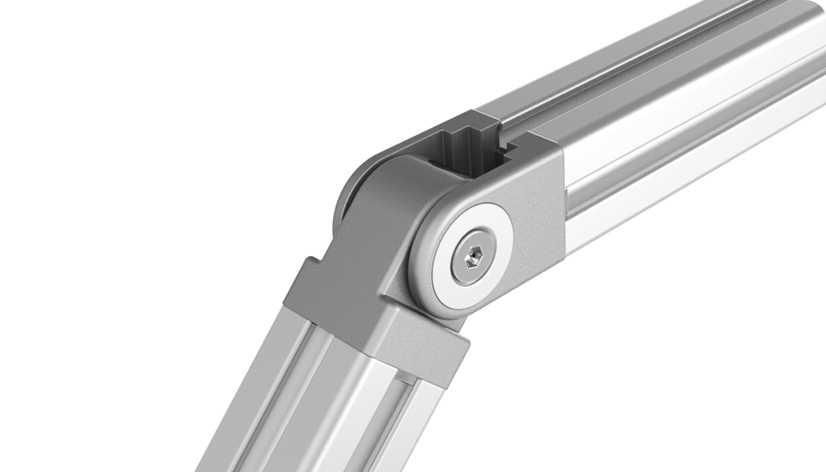

Pivot Joint B 20
Part #: 093GAB20AN05 · 2 variants
For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 33 g
- ECLASS
- 23360301
- Category
- for Profile 20, Pivot Joints
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Slot N (mm) | Opening Angle | Add 1 pc to enquiry |
|---|---|---|---|---|
| 093GAB20AN05✓ Selected | I | 5 | 185° | |
| 093GAB20AN06 | B | 6 | 185° |
Description 093GAB20AN05
- Color
Alu color
- Description
For connection of two profiles or panels, with attachment at any angle, fixed locating pins for slot 5 or 6 optional; by tightening or loosening the screws you can adjust the frictional resistance of the joint continuously, or you can fix it at a defined position; thicker walls for stronger locking
- Material
Aluminum die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
- Tip

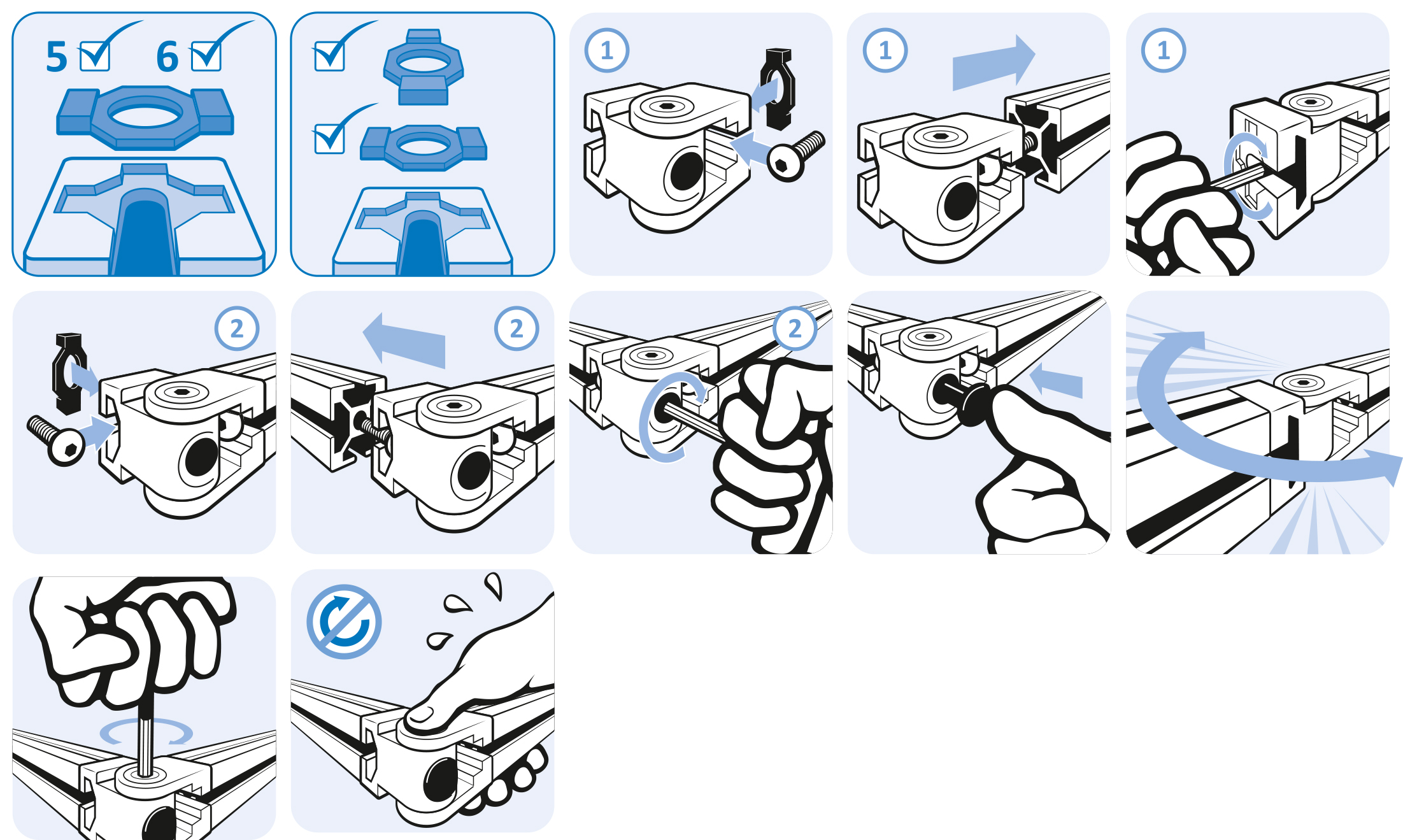

Screw of the pivot joint fork must be mounted first in the straight position of the joint through the hole in the bearing block.
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 5 |
| Pack Quantity | 10 pieces |
| Model | Bearing block, with adjustable friction, aluminum die-cast |

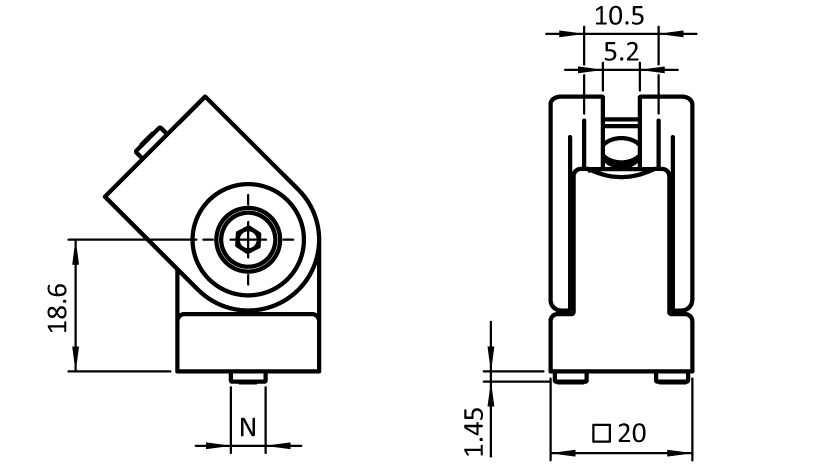

Drawing
From the FATH catalogue (EC-EN, p. 560)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
