FATH
Pivot Joint ZN 45
Part #: 093G45AN

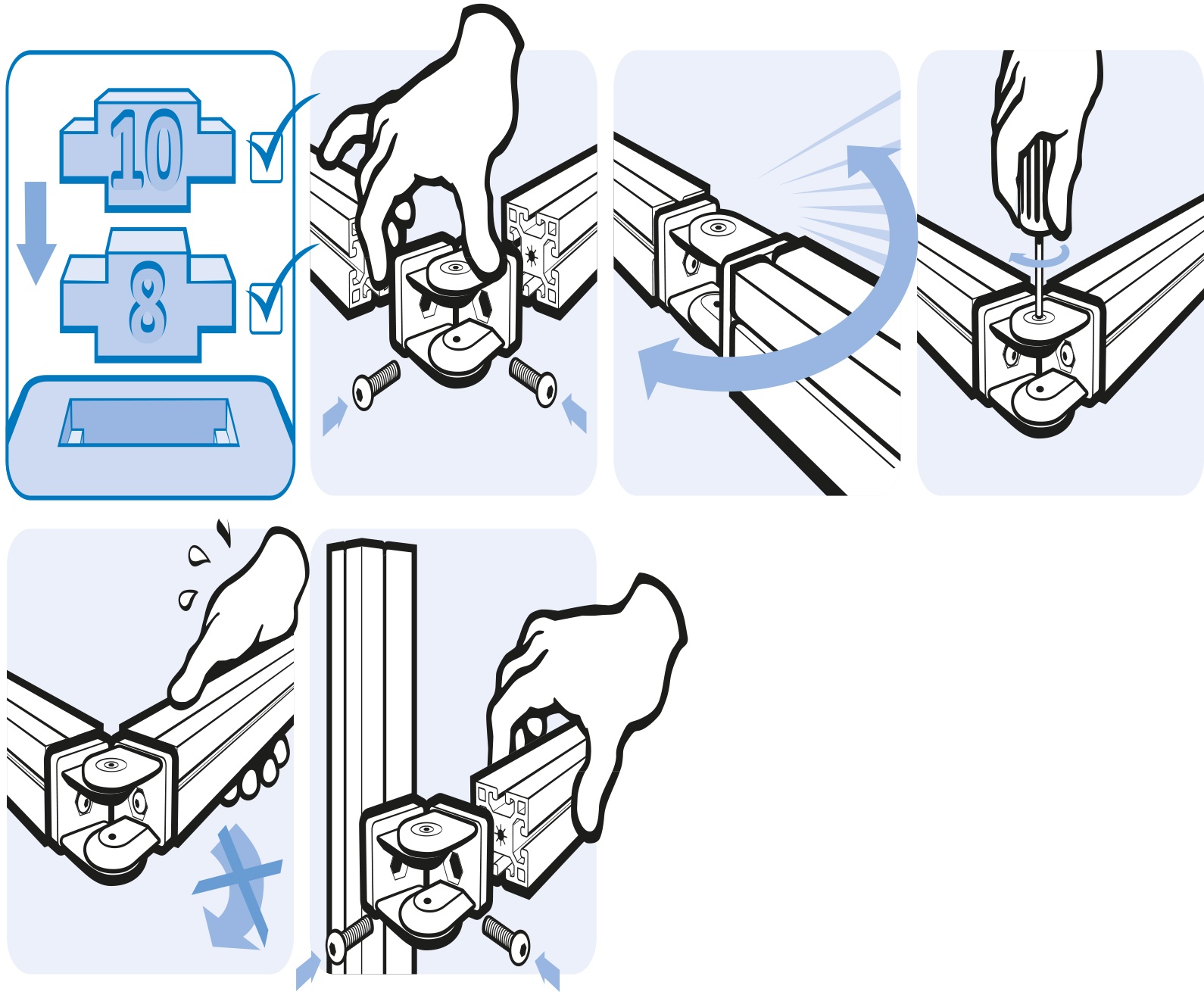

To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 339 g
- ECLASS
- 23360301
- Category
- for Profile 45, Pivot Joints
Description 093G45AN
- Color
Alu color
- Description
To make a pivoting connection between two profiles or panels; with separate locating pinsfor slot 8 and 10; by tightening or loosening the screws you can seamlessly regulate the functionality of the joint or you can fix it in one position
- Material
Zinc die-cast
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
- Tip
Cutting bush for the reduction of the Ø 10.2 mm core hole to thread size M8 see 09308801
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8, Slot 10 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | With adjustable friction, zinc die-cast |

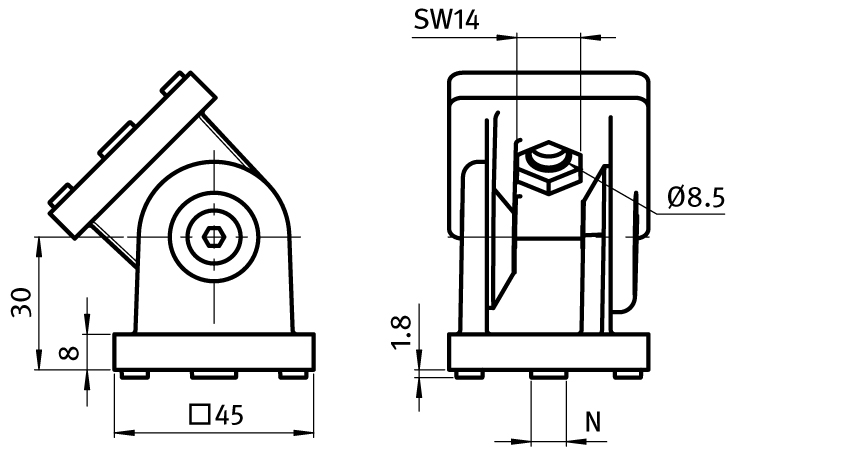

Drawing
From the FATH catalogue (EC-EN, p. 582)
