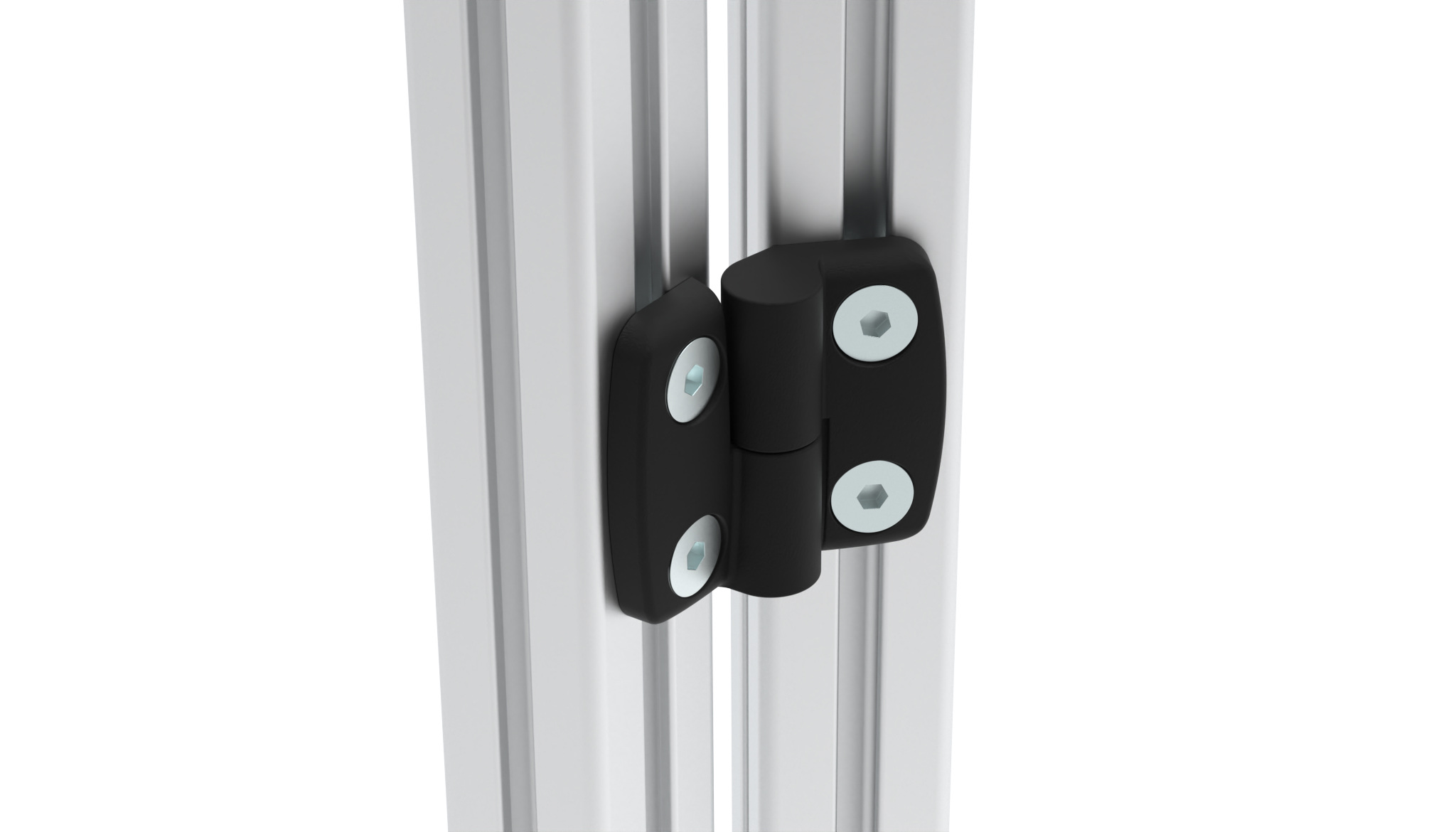

Plastic Combi Hinge 25, Detachable, Black
Part #: 095K2525L00 · 17 variants
To hinge panels or aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 31 g
- ECLASS
- 23219090
- Category
- Combi Hinges · Combi Hinges, Plastic
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Slot N (mm) | B1 (mm) | B2 (mm) | Combination | FRmax (N) | FAmax (N) | A1 (mm) | A2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 095K2525L00✓ Selected | L: Left | - | 26.0 | 26.0 | 25 / 25 | 625 | 425 | 15.0 | 15.0 | |
| 095K2525L06 | L: Left | 6 | 26.0 | 26.0 | 25 / 25 | 625 | 425 | 15.0 | 15.0 | |
| 095K2525L08 | L: Left | 8 | 26.0 | 26.0 | 25 / 25 | 625 | 425 | 15.0 | 15.0 | |
| 095K2525R00 | R: Right | - | 26.0 | 26.0 | 25 / 25 | 625 | 425 | 15.0 | 15.0 | |
| 095K2525R06 | R: Right | 6 | 26.0 | 26.0 | 25 / 25 | 625 | 425 | 15.0 | 15.0 | |
| 095K2525R08 | R: Right | 8 | 26.0 | 26.0 | 25 / 25 | 625 | 425 | 15.0 | 15.0 | |
| 095K2530L00 | L: Left | - | 26.0 | 29.5 | 25 / 30 | - | - | 15.0 | 17.5 | |
| 095K2530R00 | R: Right | - | 29.5 | 26.0 | 25 / 30 | - | - | 17.5 | 15.0 | |
| 095K2535L00 | L: Left | - | 26.0 | 36.0 | 25 / 35 | - | 400 | 15.0 | 20.0 | |
| 095K2535R00 | R: Right | - | 36.0 | 26.0 | 25 / 35 | - | 400 | 20.0 | 15.0 | |
| 095K2540L00 | L: Left | - | 26.0 | 38.5 | 25 / 40 | - | 350 | 15.0 | 22.5 | |
| 095K2540R00 | R: Right | - | 38.5 | 26.0 | 25 / 40 | - | 350 | 22.5 | 15.0 | |
| 095K2545L00 | L: Left | - | 26.0 | 43.5 | 25 / 45 | - | 325 | 15.0 | 25.0 | |
| 095K2545R00 | R: Right | - | 43.5 | 26.0 | 25 / 45 | - | 325 | 25.0 | 15.0 | |
| 095K2550L00 | L: Left | - | 26.0 | 48.5 | 25 / 50 | - | 320 | 15.0 | 27.5 | |
| 095K2550R00 | R: Right | - | 48.5 | 26.0 | 25 / 50 | - | 320 | 27.5 | 15.0 | |
| 095K2560L00 | L: Left | - | 26.0 | 57.5 | 25 / 60 | - | - | 15.0 | 32.5 |
Description 095K2525L00
- Color
Black
- Description
To hinge panels or aluminum profiles
- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
- Specials
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Detachable |
Drawing
From the FATH catalogue (EC-EN, p. 177)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
