FATH
Plastic Combi Hinge 35, Detachable, Black
Part #: 095K3525L00 · 12 variants

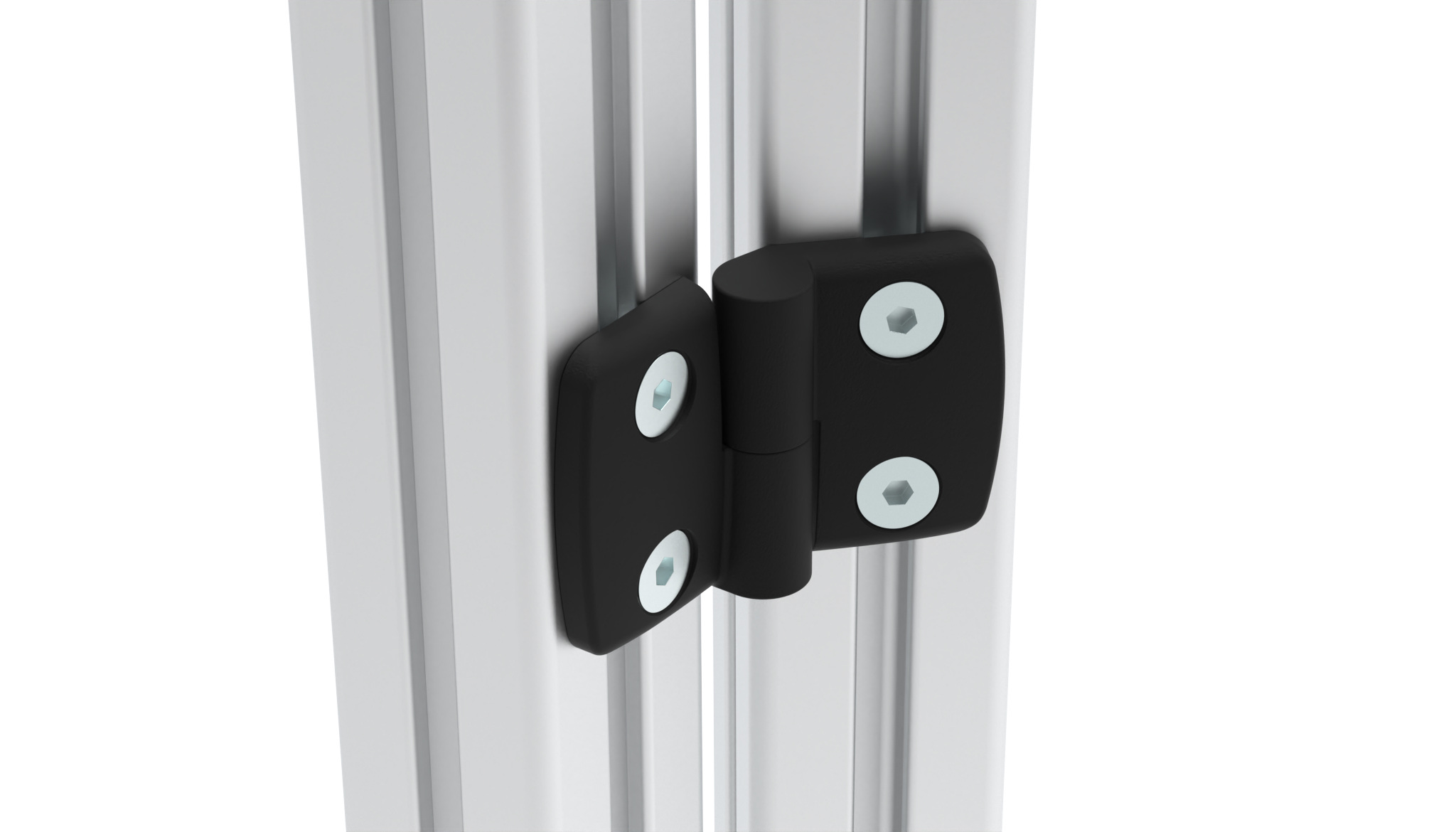

To hinge panels or aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 34 g
- ECLASS
- 23219090
- Category
- Combi Hinges · Combi Hinges, Plastic
Versions
Select a version — the description and files below follow your selection.

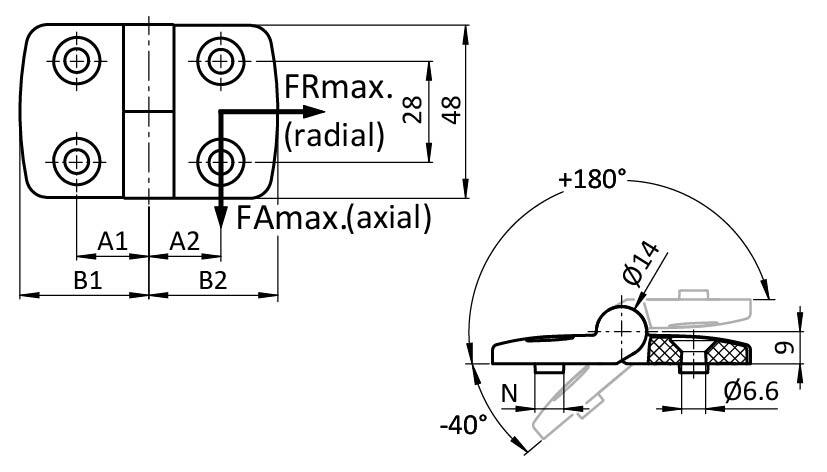

| Part # | Version | Slot N (mm) | B1 (mm) | B2 (mm) | Combination | FRmax (N) | FAmax (N) | A1 (mm) | A2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 095K3525L00✓ Selected | L: Left | - | 36.0 | 26.0 | 35 / 25 | 750 | 400 | 20.0 | 15.0 | |
| 095K3530R00 | R: Right | - | 29.5 | 36.0 | 35 / 30 | 750 | - | 17.5 | 20.0 | |
| 095K3535L00 | L: Left | - | 36.0 | 36.0 | 35 / 35 | 750 | 400 | 20.0 | 20.0 | |
| 095K3535L08 | L: Left | 8 | 36.0 | 36.0 | 35 / 35 | 750 | 400 | 20.0 | 20.0 | |
| 095K3535R00 | R: Right | - | 36.0 | 36.0 | 35 / 35 | 750 | 400 | 20.0 | 20.0 | |
| 095K3535R08 | R: Right | 8 | 36.0 | 36.0 | 35 / 35 | 750 | 400 | 20.0 | 20.0 | |
| 095K3535R10 | R: Right | 10 | 36.0 | 36.0 | 35 / 35 | 750 | 400 | 20.0 | 20.0 | |
| 095K3540L00 | L: Left | - | 36.0 | 38.5 | 35 / 40 | - | 350 | 20.0 | 22.5 | |
| 095K3545L00 | L: Left | - | 36.0 | 43.5 | 35 / 45 | - | 350 | 20.0 | 25.0 | |
| 095K3545R00 | R: Right | - | 43.5 | 36.0 | 35 / 45 | - | 350 | 25.0 | 20.0 | |
| 095K3560L00 | L: Left | - | 36.0 | 57.5 | 35 / 60 | - | - | 20.0 | 32.5 | |
| 095K3560R00 | R: Right | - | 57.5 | 36.0 | 35 / 60 | - | - | 32.5 | 20.0 |
Description 095K3525L00
- Color
Black
- Description
To hinge panels or aluminum profiles
- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel
- Specials
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Detachable |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
