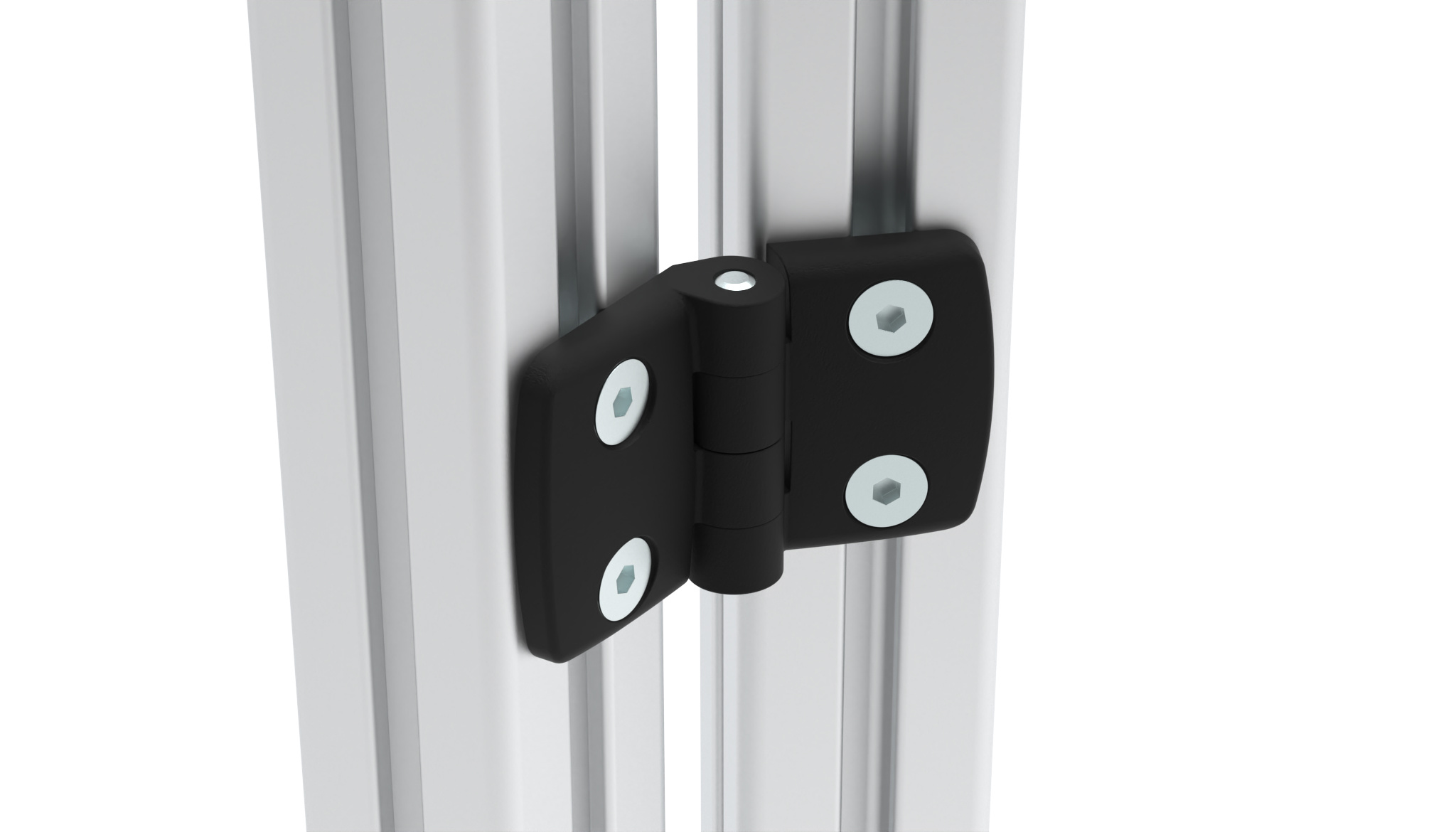

Plastic Combi Hinge 40, Non-detachable, Black
Part #: 095K4040F00 · 6 variants
To hinge panels or aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 43 g
- ECLASS
- 23219090
- Category
- Combi Hinges · Combi Hinges, Plastic
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Slot N (mm) | B1 (mm) | B2 (mm) | Combination | FRmax (N) | FAmax (N) | A1 (mm) | A2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 095K4040F00✓ Selected | Non-detachable | - | 38.5 | 38.5 | 40 / 40 | 750 | 450 | 22.5 | 22.5 | |
| 095K4040F08 | Non-detachable | 8 | 38.5 | 38.5 | 40 / 40 | 750 | 450 | 22.5 | 22.5 | |
| 095K4040F10 | Non-detachable | 10 | 38.5 | 38.5 | 40 / 40 | 750 | 450 | 22.5 | 22.5 | |
| 095K4045F00 | Non-detachable | - | 38.5 | 43.5 | 40 / 45 | 750 | 450 | 22.5 | 25.0 | |
| 095K4050F00 | Non-detachable | - | 38.5 | 48.5 | 40 / 50 | - | 425 | 22.5 | 27.5 | |
| 095K4060F00 | Non-detachable | - | 38.5 | 57.5 | 40 / 60 | 850 | 175 | 22.5 | 32.5 |
Description 095K4040F00
- Color
Black
- Description
To hinge panels or aluminum profiles
- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Plastic PA, glass fiber reinforced;
Bolt: Stainless steel
- Specials
ESD electrostatical discharging, further colors, centering pins for installation on aluminum profiles available on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

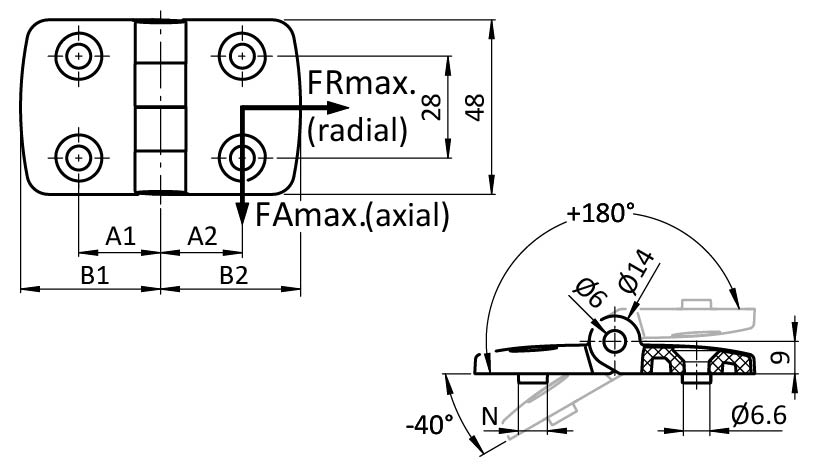

Drawing
From the FATH catalogue (EC-EN, p. 184)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
