FATH

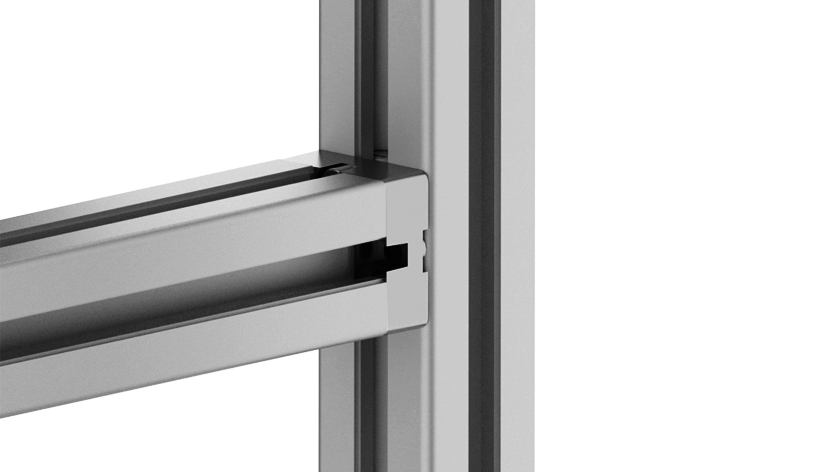

Plate Connector B AL
Part #: 099EA30300808A · 12 variants
To tee connect two aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 20 g
- ECLASS
- 23360290
- Category
- Plate Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | SW (mm) | Profile | A (mm) | B (mm) | D1 (mm) | D2 (mm) | d (mm) | Assembly Set | Surface | Color | Slot N (mm) | T (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 099EA30300808A✓ Selected | 8.9 | - | 21.6 | 30 | 13.6 | 8.5 | 5.5 | - | Powder coated | Alu color | 8 | 6.0 | |
| 099EA30300808AS01 | 8.9 | B | 21.6 | 30 | 13.6 | 8.5 | 5.5 | With assembly set 1 | Powder coated | Alu color | 8 | 6.0 | |
| 099EA30300808R | 9 | - | 21.6 | 30 | 13.6 | 8.5 | 5.5 | - | Plain | - | 8 | 6.0 | |
| 099EA30300808RS01 | 8.9 | B | 21.6 | 30 | 13.6 | 8.5 | 5.5 | With assembly set 1 | Plain | - | 8 | 6.0 | |
| 099EA40401012A | 10 | - | 30.0 | 40 | 20.0 | 12.4 | 6.2 | - | Powder coated | Alu color | 10 | 6.5 | |
| 099EA40401012AS01 | 10 | B | 30.0 | 40 | 20.0 | 12.4 | 6.2 | With assembly set 2 | Powder coated | Alu color | 10 | 6.5 | |
| 099EA40401012R | 10 | - | 30.0 | 40 | 20.0 | 12.4 | 6.2 | - | Plain | - | 10 | 6.5 | |
| 099EA40401012RS01 | 10 | B | 30.0 | 40 | 20.0 | 12.4 | 6.2 | With assembly set 2 | Plain | - | 10 | 6.5 | |
| 099EA45451012A | 10 | - | 34.0 | 45 | 20.0 | 12.5 | 6.5 | - | Powder coated | Alu color | 10 | 9.0 | |
| 099EA45451012AS01 | 10 | B | 34.0 | 45 | 20.0 | 12.5 | 6.5 | With assembly set 2 | Powder coated | Alu color | 10 | 9.0 | |
| 099EA45451012R | 10 | - | 34.0 | 45 | 20.0 | 12.5 | 6.5 | - | Plain | - | 10 | 9.0 | |
| 099EA45451012RS01 | 10 | B | 34.0 | 45 | 20.0 | 12.5 | 6.5 | With assembly set 2 | Plain | - | 10 | 9.0 |

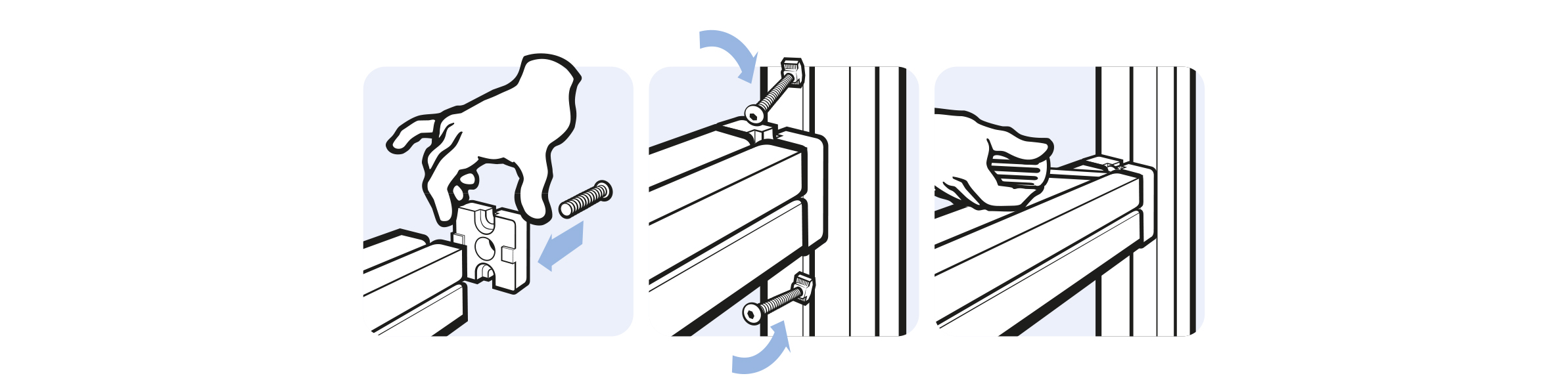

Description 099EA30300808A
- Assembly Set 1
1 screw DIN 7984 - M8 x 30,
2 screws DIN 7984 - M5 x 16,
2 hammer nuts - slot 8 - M5
- Assembly Set 2
1 self forming screw S12 x 30 - hexalobular socket T50,
2 screws DIN 7984 - M6 x 20,
2 hammer nuts - slot 10 - M6
- Color
Alu color
- Description
To tee connect two aluminum profiles
- Material
Plate connector: Aluminum die-cast
Assembly set: Steel
- Specials
Other surfaces on request
- Surface
Plate connector: Plain / powder coated
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

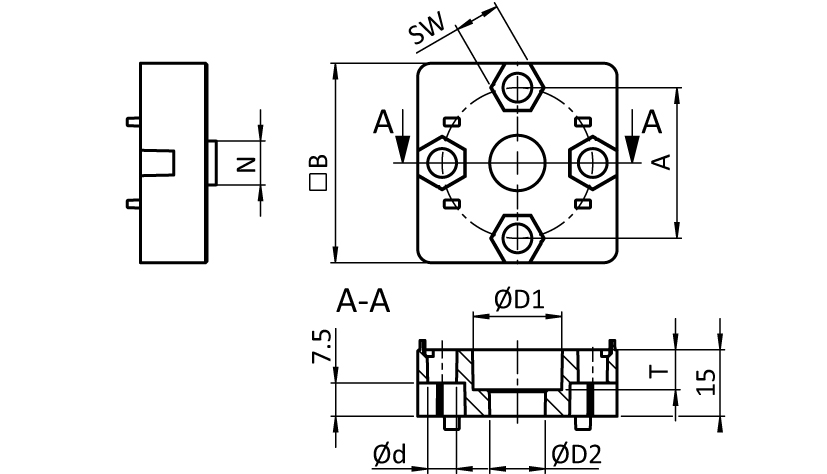

Drawing
From the FATH catalogue (EC-EN, p. 499)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
