FATH

Plug-in Profil 5.0 / 6 - 4

Part #: 092254 · 2 variants

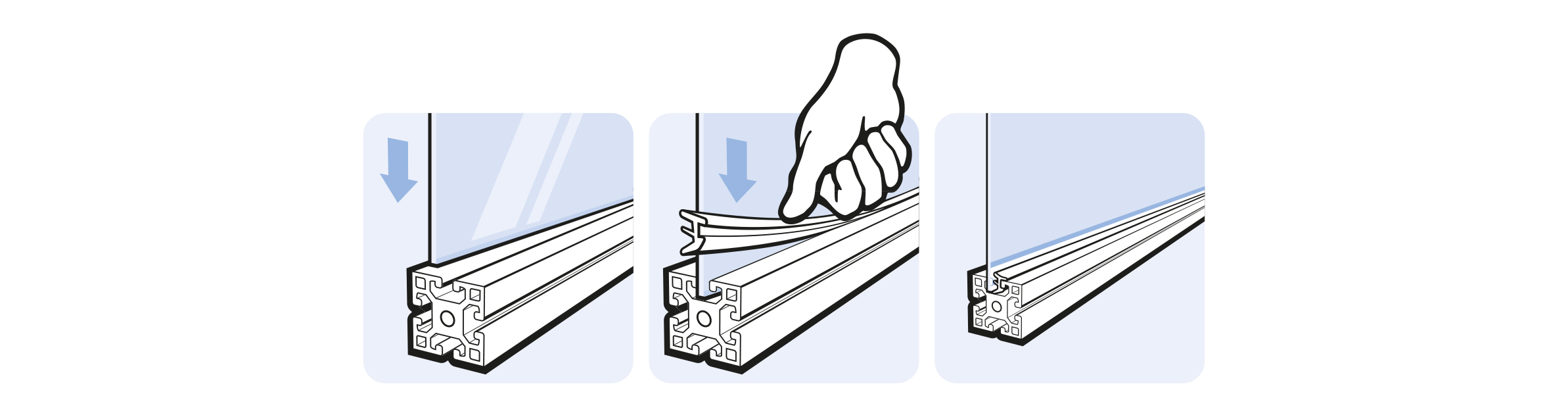

To secure panels in the slot and fill the slot; with reduced surface friction to ease the application

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

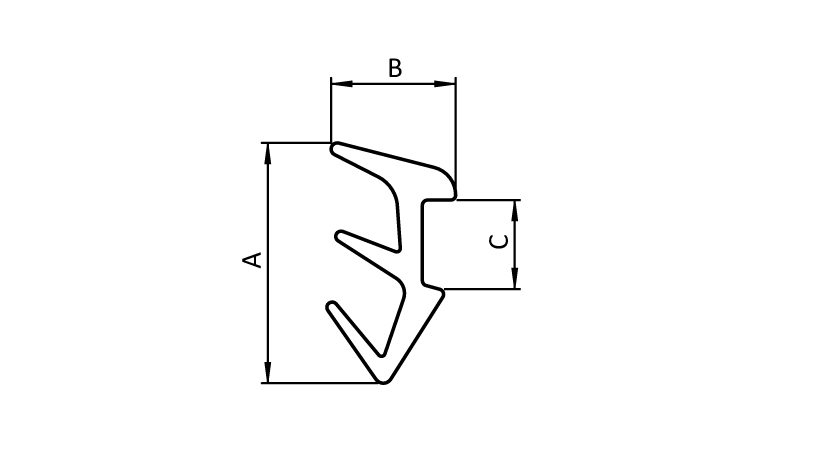

Part #	Profile	A (mm)	B (mm)	C (mm)	Slot N (mm)	for Panel	Add 1 pc to enquiry
092254✓ Selected	I	13.5	7.0	5.0	8 / 10	4 – 6 mm / 6 - 7 mm
092255	I	14.7	8.6	5.0	8 / 10	2 – 4 mm / 4 - 6 mm

Color: Black
Description: To secure panels in the slot and fill the slot; with reduced surface friction to ease the application
Material: Plastic EPDM coated with sliding polymer
Tip: Please note: You are ordering in meters!

From the FATH catalogue (EC-EN, p. 957)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
