FATH

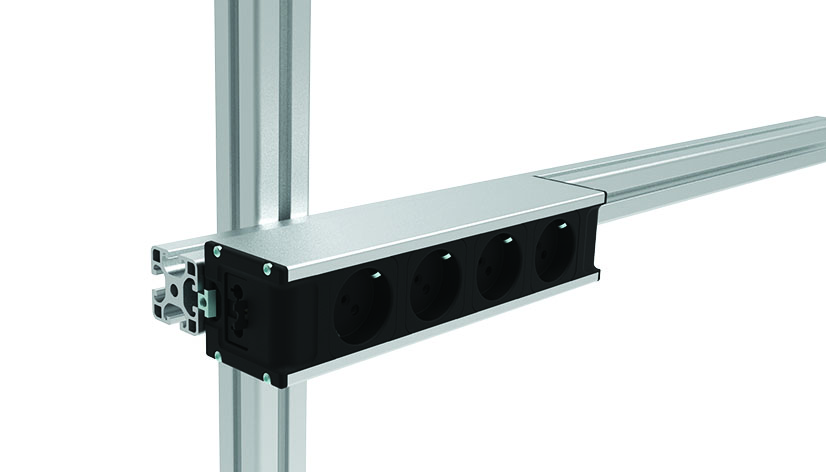

Power Strip Module F Line 264 4x
Part #: 6SBEU04I.264 · 4 variants
Power strip with sockets for power supply at workstations; On the backside with slot 8 for mounting on aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 566 g
- ECLASS
- 27142604
- Category
- Power Supply
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Fig. | ESD | Slot N (mm) | Socket Type | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 6SBEU04I.264✓ Selected | I | ① | - | 8 | Type F: CEE 7/3 | |
| 6SBEU04IE.264 | I | ① | ESD | 8 | Type F: CEE 7/3 | |
| 6SBFR04I.264 | I | ③ | - | 8 | Type E: CEE 7/5 | |
| 6SBGB04I.264 | I | ② | - | 8 | Type G: BS 1363 |
Description 6SBEU04I.264
- Color
Housing standard version: -
Housing ESD electrostatical discharging version: Black
End caps: Black
Socket inserts: Black
- Description
Power strip with sockets for power supply at workstations;
On the backside with slot 8 for mounting on aluminum profiles
- Material
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
Socket inserts: Plastic PA
- Plug type countries
Type F: DE, AT, NL, ES, PT, GR, IS, HR, LV, LT, EE, LU, RU, HU, UA, BY, TR, RS, SI, RO, BG, ID, KR
Type G: UK, MY, IE, IQ, AE, KE, KW, HK, MT, MU, MM, NG, OM, SG, QA, VN, CY
Type E: FR, BE, CZ, SK, PL, MA, CM, TN
- Specials
Further colors, individually configurated power strips on request
- Surface
Housing standard version: Anodized
Housing ESD electrostatical discharging version: Powder coated
- Tip
Compatible LED Lamp see 6SL1040DI.953
Compatible Main Power Cable see 6SAME4J316B.2000
Compatible Connection Cable see 6SACP3J316B.2000
Compatible Connection Coupling see 6SAKP3J316BS01
Compatible Cover Cap for 3 pole female connector see 063SGF3S01
Compatible Direct Connector I, Slot 8 see 099DC084040N08
Compatible Direct Connector I / B, Slot 8 / 10 see 099DC084045N10
- Tip 2
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| IP Rating | IP20 |
| Length | 264 mm |
| Operating Temperature | 0 - 40 °C |
| Protection Class | II (2) |
| Current | Max. 16 A |
| Frequency | AC / 50 Hz |
| Max. Connection Power | 3500 W |
| Voltage | 230 V |

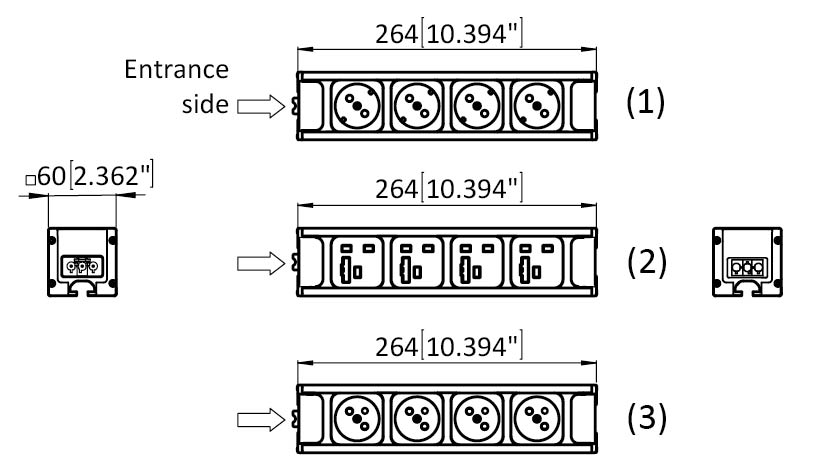

Drawing
From the FATH catalogue (EC-EN, p. 775)
Documents
- User Manual (DE, PDF)
- User Manual (EN, PDF)
- User Manual (FR, PDF)
- User Manual (ES, PDF)
- CB Test Certificate (DE, PDF)
- CB Test Certificate (EN, PDF)
- CB Test Certificate (FR, PDF)
- CB Test Certificate (ES, PDF)
