Profile Connector 90° I, Slot 8 (Set)
Part #: 099J08M08S03 · 2 variants

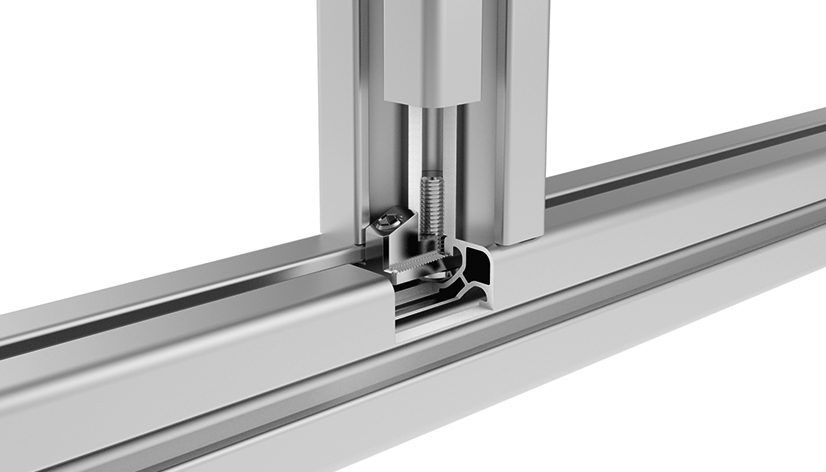

To connect two aluminum profiles at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 24.8 g
- ECLASS
- 23360290
- Category
- 90° Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Set | Add 1 pc to enquiry |
|---|---|---|---|
| 099J08M08S03✓ Selected | I | Set 1 | |
| 099J08S07 | I | Set 2 |
Description 099J08M08S03
- Description
To connect two aluminum profiles at right angles
- Material
Steel
- Set 1

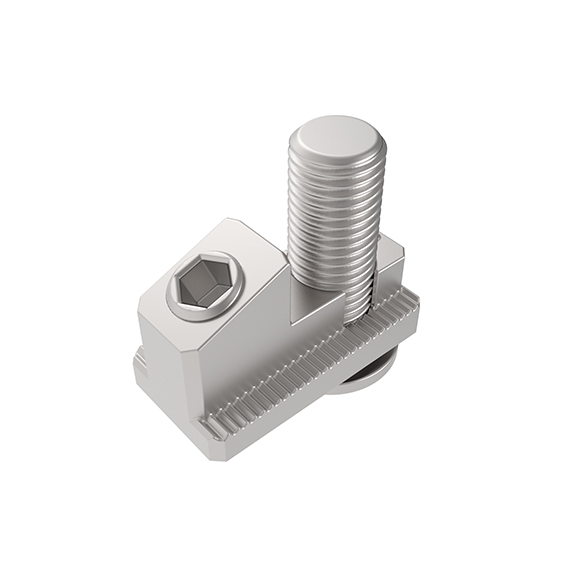

1 profile connector 90° I
1 screw M8 x 22
- Set 2
1 profile connector 90° I
1 self-forming screw S7 x 22
- Surface
Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 10 pieces |
| Model | Steel, slot 8 |

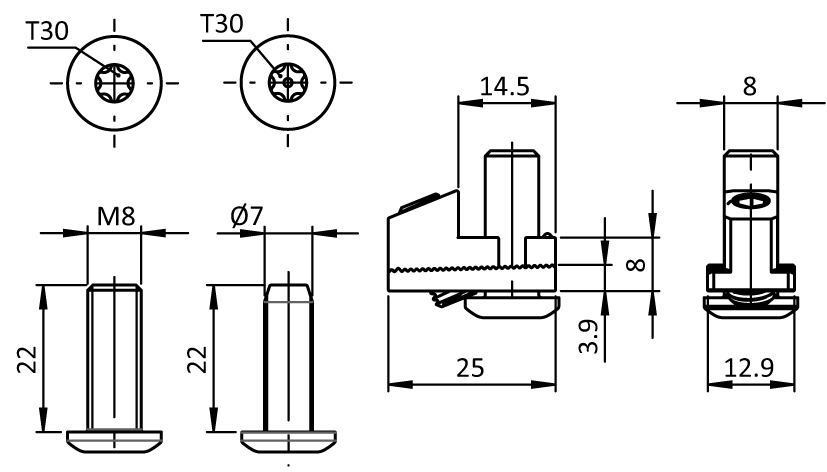

Drawing
From the FATH catalogue (EC-EN, p. 536)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
