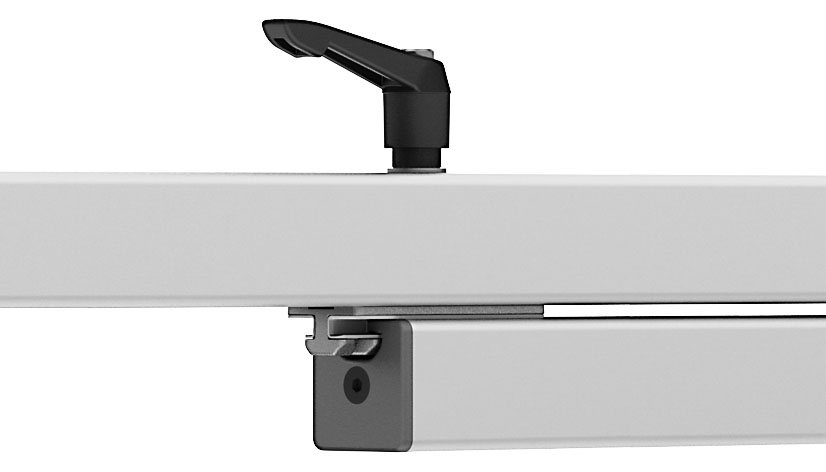

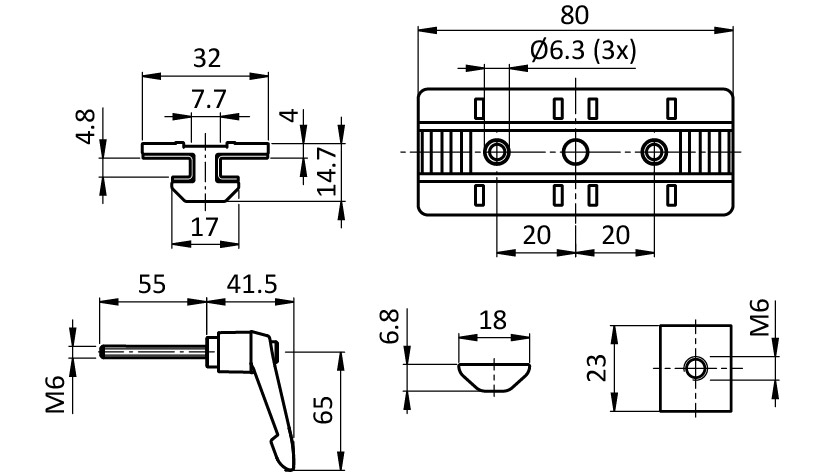

Profile Slider ZN 40 x 80 with Locking Lever (Set)

Description 093PS0840S01

Color

Slide shoe: Natural

Clamp lever handle: Black

Description

To guide slidingly profiles with slot 8; the additional clamping feature for the slide carriage extends the range of applications, e.g as adjustable end stop;

Retention force at maximum tightening torque(15 Nm) 600 N; including hexagon nuts M6 for the attachment of additional components

Material

Sliding carriage: Zinc die-cast

Slide shoe: Plastic POM

Fixation: Steel

Clamp lever handle: Plastic, glass fiber reinforced

Clamp lever mechanics: Steel

Set

1 sliding carriage,

2 slide shoes,

1 clamp lever with external thread M6 x 55*,

1 special T-slot nut - slot 8 - M6,

1 shim DIN EN ISO 7093 (DIN 9021) 6.4 mm,

2 hexagon nuts DIN EN ISO 4035 (DIN 439) - M6

Surface

Sliding carriage: Zinc plated

Slide shoe: Zinc plated

Clamp lever mechanics: Oxide finish

Tip

*Use of the M6 clamp lever:

40 mm profile + 40 mm profile, thread length: 55 mm

Cut to length of the M6 clamp lever, e.g.:

40 mm profile + 20 mm profile, cut thread lenghth to: 35 mm

40 mm profile + 10 mm panel, cut thread lenghth to: 25 mm
