FATH

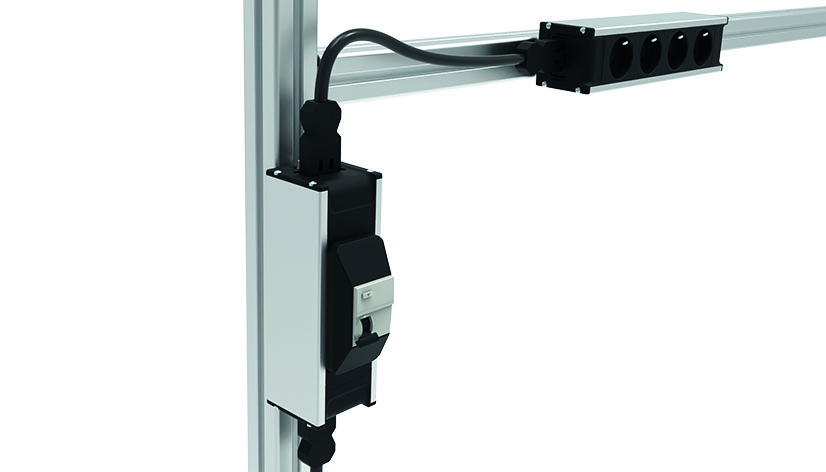

RCD Unit 25A / 30mA, Module F Line 185
Part #: 6SR3025I.185
Residual current circuit breaker (RCCB) for protecting downstream F-Line modules in a chain against fault currents; On the backside with slot 8 for mounting on aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 368.8 g
- Category
- Power Supply
Description 6SR3025I.185
- Color
End caps: Black
RCD-Unit: White
- Description
Residual current circuit breaker (RCCB) for protecting downstream F-Line modules in a chain against fault currents;
On the backside with slot 8 for mounting on aluminum profiles
- Material
Housing: Aluminum
End caps: Plastic PA, carbon fiber reinforced
RCD Unit: Plastic ABS
- Specials
ESD electrostatical discharging, available on request
- Surface
Housing: Anodized
- Tip
Compatible Main Power Cable GST18i3 for 3-pole input connector see 6SAME4J316B.2000
Compatible Connection Cable GST18i3 for 3-pole output connector see 6SACP3J316B.2000
Compatible Power Strip Module F Line 264 4x see 6SBEU04I.264
- Tip 2
Please note: Chaining of max. 6 modules (LED lamps / power strips), cable length max. 15 m for main power cable, connection cables and modules
Connected load max. 3500 watts
Properties
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 1 piece |
| IP Rating | IP20 |
| Operating Current | max. 25 A |
| Operating Temperature | -25° - 60° C |
| Operating Voltage / Frequency | 230 - 240 V, AC / 50/60 Hz |
Documents
- User Manual (DE, PDF)
- User Manual (EN, PDF)
- User Manual (FR, PDF)
- User Manual (ES, PDF)
