FATH
Rhombus Nut
Part #: 096R080318Z · 6 variants
To fasten components to profiles, easy to insert, remains mobile in the slot
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 4.1 g
- ECLASS
- 23110716
- Category
- Slot 8, Rhombus Nuts
Versions
Select a version — the description and files below follow your selection.
| Part # | H (mm) | Profile | A (mm) | M | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 096R080318Z✓ Selected | 1.8 | B | 6.0 | M3 | |
| 096R080330Z | 3.0 | I | 7.7 | M3 | |
| 096R080418Z | 1.8 | B | 6.0 | M4 | |
| 096R080430Z | 3.0 | I | 7.7 | M4 | |
| 096R080518Z | 1.8 | B | 6.0 | M5 | |
| 096R080530Z | 3.0 | I | 7.7 | M5 |
Description 096R080318Z
- Description
To fasten components to profiles, easy to insert, remains mobile in the slot
- Material
Zinc die-cast
- Surface
Plain
Properties
| Profile Type | Profile Type B |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Slot 8, zinc die-cast |

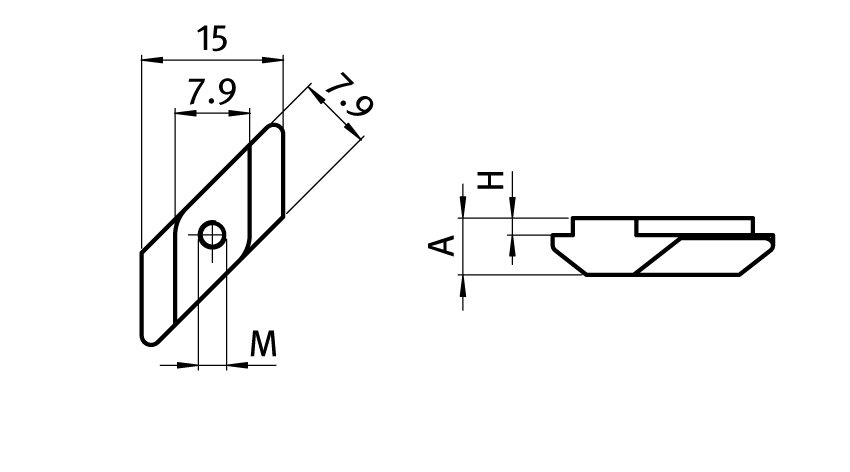

Drawing
From the FATH catalogue (EC-EN, p. 348)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
