FATH
Roll-In Double T-Slot Nut 13.7 x 7.0 mm
Part #: 096000S16

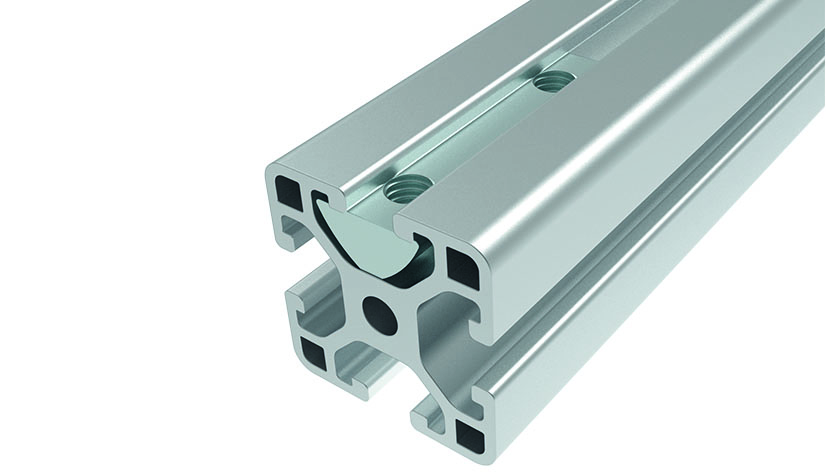

Roll-in double T-slot nut with spring loaded ball
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 19.6 g
- ECLASS
- 23360290
- Category
- Roll-in, Slot 8
Description 096000S16
- Description
Roll-in double T-slot nut with spring loaded ball
- Material
Double T-slot nut: Steel
Ball: Stainless steel
Spring: Spring steel
- Specials
Different lengths with multiple threads in different sizes available on request
- Surface
Double T-slot nut: Zinc-plated
Ball: Plain
Spring: Plain
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Slot 8, steel |

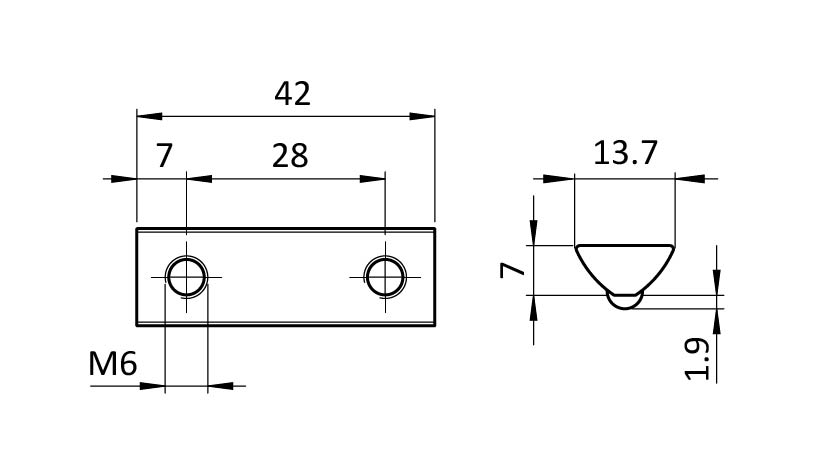

Drawing
From the FATH catalogue (EC-EN, p. 302)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
